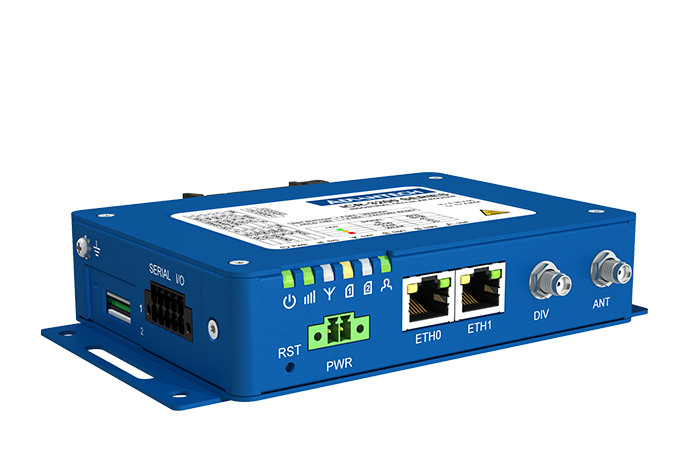

INDUSTRY POPULAR PORT OPTIONS
CPU: 1 GHz
Memory: RAM 512 MB, MRAM 128 kB, eMMC - 4096 MB
(838 MB for Router Apps, 512 MB for customer data)
• 4G LTE Cat.4 VPN Gateway for Industrial IoT applications
• 2× SIM with cover, eSIM ready
• 2× Ethernet 10/100, 1x RS232, 1x RS485 and I/O
• Optional Wi-Fi 802.11ac
• Optional GNSS receiver
• Optional Bluetooth 5 Low Energy
• Robust metal cover with DIN and Wall mount options
• Operational temperature range from -40 °C to +75 °C
• Backup real time clock
• Sleep mode & Power ignition
Regions: EMEA, NAM, ANZ
LAN Router: Details here ...

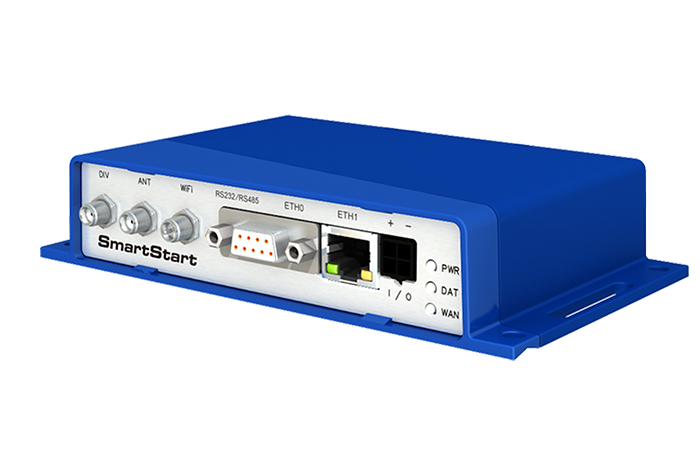

ENTRY LEVEL ROUTERS ESSENTIAL INTERFACES
CPU: 1 GHz
Memory: RAM 512 MB, MRAM 128 kB, eMMC - 4096 MB
(838 MB for Router Apps, 512 MB for customer data)
• LTE Cat.4/Cat.1 with 3G/2G fallback
• 2× SIM for redundancy
• 1× Ethernet 10/100 Mbps
• 1× RS232 (DB9 Female)
• 1× DI, 1× DO
• Low power consumption
• Wide operational temperature range
• Wall and DIN mount options
• Linux based OS & SW customization
Regions: EMEA

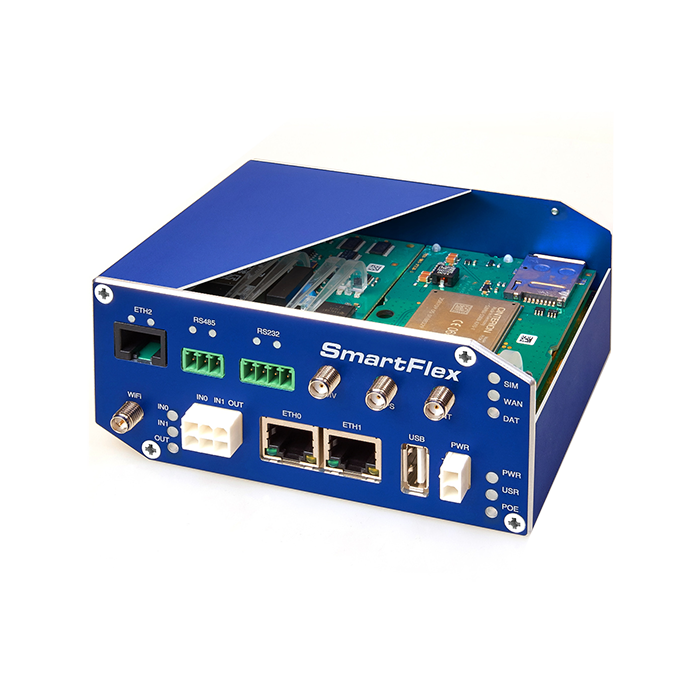

ENHANCED & FLEXIBLE PORT OPTIONS
CPU: 1 GHz
Memory: RAM 512 MB, MRAM 128 kB, NOR Flash 256 MB
(128 MB for Router Apps, 128 KB for customer data)
• LTE Cat.3/Cat.4, 2× SIM for redundancy
• Flexible port options 2–5× Ethernet 10/100
• Isolated RS-232/422/485 serial ports
• USB Host, 2× DI, 1× DO, MicroSD card
• GPS and GLONASS support
• Extended operational temperature range from -40 °C to +75 °C
• 10-60 VDC operation with transient and
reverse polarity voltage protection
• Low power consumption mode for solar and battery power applications
• Optional industrial-grade Wi-Fi
• Optional 2× PoE+ PSE or PoE PD
• Linux based OS & SW customization
Regions: EMEA, NAM, APAC, LATAM, ANZ, Korea, Global
LAN Router: Details here ...
