Product Overview
Introduction
The SmartFlex product family consists of modular industrial routers available in three base models: the SR300 LAN router for secure interconnection of local networks, the SR304 cellular router for the EMEA market (LTE, up to 150 Mbps download), and the SR310 cellular router for global markets (LTE, up to 130 Mbps download). By default, the routers provide two 10/100 Mbps Ethernet ports, one USB 2.0 host port, two digital inputs and one digital output, and a microSD card reader; the cellular models add two SIM card slots.
The secure, password-protected web interface enables users to monitor detailed statistics, including activity logs, signal strength, and system logs. For guidance on first-time setup, refer to Initial Setup.
Key Features
- Networking: IPv4/IPv6 dual stack, DHCP, NAT, Dynamic DNS, VLAN, and QoS.
- VPN tunnels: OpenVPN, IPsec, WireGuard, GRE, L2TP, and PPTP.
- Reliability: Hardware watchdog, connection monitoring with automatic recovery, and Low Power Mode.
- Management and automation: Linux scripts, up to four configuration profiles, and remote updates of the configuration and firmware.
For the complete list of features, refer to the Router Features application guide.
Model Overview
The SmartFlex routers are supplied in the versions summarized in the table below.
Tips
The order codes contain placeholders:
- x = Power over Ethernet (0 = without PoE, 8 = PoE PSE, 9 = PoE PD),
- y = box type (1 = plastic, 2 = metal),
- z = accessory (0 = no accessory, 1 = accessory with EU power supply, 5 = accessory with international power supply (EU, US, UK, AUS)).
| Order Code | Region | Cellular | ETH | I/O | Serial | USB | SD | SIM | Wi-Fi | GNSS |
|---|---|---|---|---|---|---|---|---|---|---|
| BB-SR3000x1yz | Global | โ | 5 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3001x1yz | Global | โ | 5 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3040x0yz | EMEA | LTE | 2 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3041x0yz | EMEA | LTE | 2 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3040x1yz | EMEA | LTE | 5 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3041x1yz | EMEA | LTE | 5 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3040x3yz | EMEA | LTE | 2 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3041x3yz | EMEA | LTE | 2 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3040x4yz | EMEA | LTE | 3 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3041x4yz | EMEA | LTE | 3 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3040x6yz | EMEA | LTE | 2 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3100x0yz | Global | LTE | 2 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3101x0yz | Global | LTE | 2 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3100x1yz | Global | LTE | 5 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3101x1yz | Global | LTE | 5 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3100x3yz | Global | LTE | 2 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3101x3yz | Global | LTE | 2 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3100x4yz | Global | LTE | 3 | โ | โ | โ | โ | โ | โ | โ |
| BB-SR3101x4yz | Global | LTE | 3 | โ | โ | โ | โ | โ | โ | โ |
โ = included ย ยทย โ = not available ย ยทย hover a heading or cell for details
Product Label
The router has a product label attached to its enclosure. The label provides information for identifying the product, its hardware configuration, and its regulatory status.

The label always includes the following information:
- Product model and serial number.
- Manufacturing date (year and month).
- Power supply requirements.
- MAC address.
- Default password.
- Separate barcodes encoding the serial number and the default password.
- A QR code encoding the serial number and MAC address and, for cellular routers, the IMEI. The QR code is primarily intended to identify and register the router in the WebAccess/DMP remote management platform, but its encoded information can also be used for other purposes.
- Manufacturer identification.
Depending on the product model and configuration, the label may also include the following information:
- Hardware revision.
- IMEI (for cellular routers only).
- Applicable regulatory marks and symbols.
The exact label content depends on the product model, hardware configuration, and applicable regulatory requirements.
The router may also carry additional labels that provide more detailed information about specific interfaces or display additional certification or regulatory markings.
Hardware Components

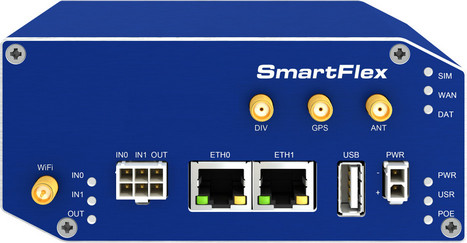

The front panel of the router hosts all the connectors, as illustrated in the image below (cellular version shown). The exact connector set depends on the model and version โ see the Model Overview section.

| Caption | Type | Description |
|---|---|---|
| PWR | 2-pin | Connector for the power supply; see Power Supply. |
| ETH0, ETH1 | RJ45 | Ethernet connections to the local network; PoE supported on the PoE PSE / PoE PD versions; see Ethernet Interfaces and PoE Parameters. |
| ANT | SMA | Connector for the main antenna of the cellular module, cellular models only; see Antenna Connections and Cellular Module Parameters. |
| DIV | SMA | Connector for the diversity antenna of the cellular module, cellular models only; see Antenna Connections and Cellular Module Parameters. |
| GPS | SMA | Connector for the GPS/GNSS antenna, cellular models only; see Antenna Connections and GNSS Parameters. |
| Wi-Fi | RP-SMA | Connector for the Wi-Fi antenna, versions with the Wi-Fi module only; see Antenna Connections and Wi-Fi Parameters. |
| USB | USB-A 2.0 Host | Connector for USB devices; supports devices with PL-2303 and FTDI USB/RS-232 converters; see USB Port. |
| I/O | 6-pin | Connector for the digital inputs and output; see I/O Port and I/O Parameters. |
The rear panel contains the SIM and microSD card holders and the reset button:
| Caption | Type | Description |
|---|---|---|
| SIM1, SIM2 | โ | Two holders for 3 V and 1.8 V SIM cards, cellular models only; see SIM Card Slots. |
| SD | microSD | Holder for a microSD card (up to 64 GB; 32 GB for SDHC); see MicroSD Card. |
| RST | โ | Button to restore the default configuration and reboot the router; see RST Button Functions. |
Version differences
Depending on the ordered version, the front panel additionally hosts the SWITCH board (three switched Ethernet ports), the RS-232-RS-485/422 board, the RS-232-RS-485-ETH board (serial interfaces plus an Ethernet port with higher insulation), or the RS-485-RS-485 board (two RS-485 interfaces, SR304 only).

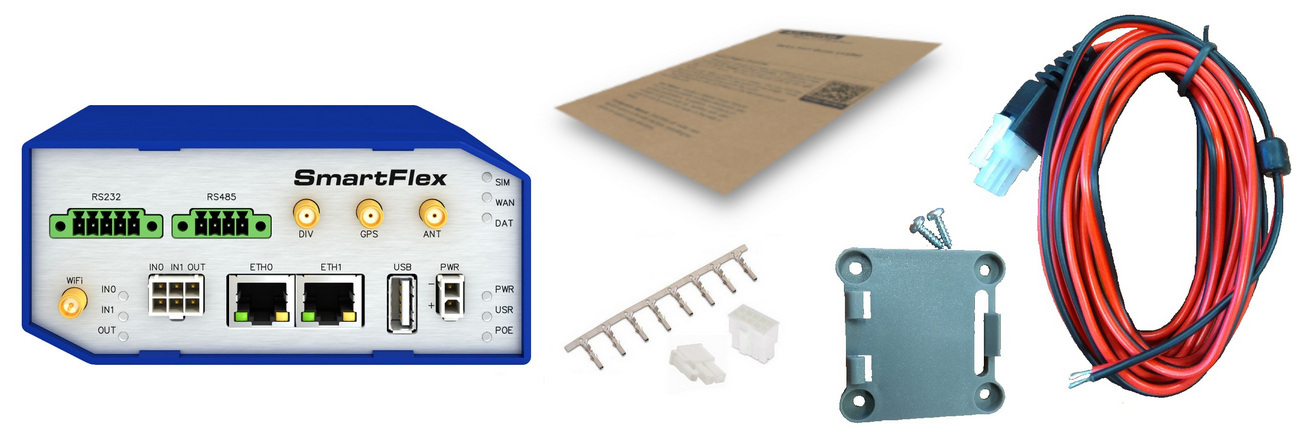

Package Contents
The basic router set includes the following items:

| Item | Description | Quantity |
|---|---|---|
| Router | SmartFlex router | 1 |
| Power Cable | Twin cable with the power connector (BB-KN-v3-MO2-3) | 1 |
| I/O Connector | Extra 6-pin I/O connector with 8 pins for cables with diameters from 0.2 to 0.8 mmยฒ | 1 |
| Serial Terminal Blocks | 4-pin + 5-pin (RS-232-RS-485/422 version) or 3-pin + 4-pin (RS-232-RS-485-ETH version) terminal blocks | 1 set |
| DIN Rail Clip | Clip for the DIN rail | 1 |
| Quick Start Guide | Printed quick start guide included in the package | 1 |
Tips
The SR300 package differs slightly: it includes a power supply, a crossover UTP cable, and โ for the Wi-Fi versions โ a 2.4 GHz Wi-Fi antenna. The temperature range of the included power supply is limited to 0 ยฐC to +40 ยฐC.
Product Revisions
The revision history below summarizes key updates to the SmartFlex product line. Note that some revisions may not be available for certain order codes. The revision number is printed on the packaging and product labels and is visible in the web interface: Status โ General โ System Information โ Product Revision (the default revision 1.0 may not be shown there).
| Rev.# | Description |
|---|---|
| 1.0 | Initial version (revision not printed on the labels). |
| 2.0 | New SIM slot type (PCN-2022-03). |
