Introduction
The SmartStart SL305 is an industrial cellular router designed for wireless communication in mobile networks using LTE Category 4 (Cat.4) services. By default, the router provides one 10/100 Mbps Ethernet interface, one RS-232 serial interface, one digital input and one digital output, and two SIM card slots.
The secure, password-protected web interface enables users to monitor detailed statistics, including activity logs, signal strength, and system logs. For guidance on first-time setup, refer to Initial Setup.
Key Features
- Networking: IPv4/IPv6 dual stack, DHCP, NAT, Dynamic DNS, VLAN, and QoS.
- VPN tunnels: OpenVPN, IPsec, WireGuard, GRE, L2TP, and PPTP.
- Reliability: Hardware watchdog, connection monitoring with automatic recovery, and Low Power Mode.
- Management and automation: Linux scripts, up to four configuration profiles, and remote updates of the configuration and firmware.
For the complete list of features, refer to the Router Features application guide.
Model Overview
The SmartStart SL305 router is supplied in the versions summarized in the table below.
Tips
All SmartStart SL305 versions are supplied in a plastic casing only.
| Order Code | Region | Cellular | ETH | I/O | Serial | SIM | Wi-Fi |
|---|---|---|---|---|---|---|---|
| BB-SL30500110 | EMEA | LTE Cat.4 | ✓ | ✓ | ✓ | ✓ | – |
| BB-SL30510110 | EMEA | LTE Cat.4 | ✓ | ✓ | ✓ | ✓ | ✓ |
✓ = included · – = not available · hover a heading or cell for details
Product Label
The router has a product label attached to its enclosure. The label provides information for identifying the product, its hardware configuration, and its regulatory status.
The label always includes the following information:
- Product model and serial number.
- Manufacturing date (year and month).
- Power supply requirements.
- MAC address.
- Default password.
- Separate barcodes encoding the serial number and the default password.
- A QR code encoding the serial number and MAC address and, for cellular routers, the IMEI. The QR code is primarily intended to identify and register the router in the WebAccess/DMP remote management platform, but its encoded information can also be used for other purposes.
- Manufacturer identification.
Depending on the product model and configuration, the label may also include the following information:
- Hardware revision.
- IMEI (for cellular routers only).
- Applicable regulatory marks and symbols.
The exact label content depends on the product model, hardware configuration, and applicable regulatory requirements.
The router may also carry additional labels that provide more detailed information about specific interfaces or display additional certification or regulatory markings.
Hardware Components

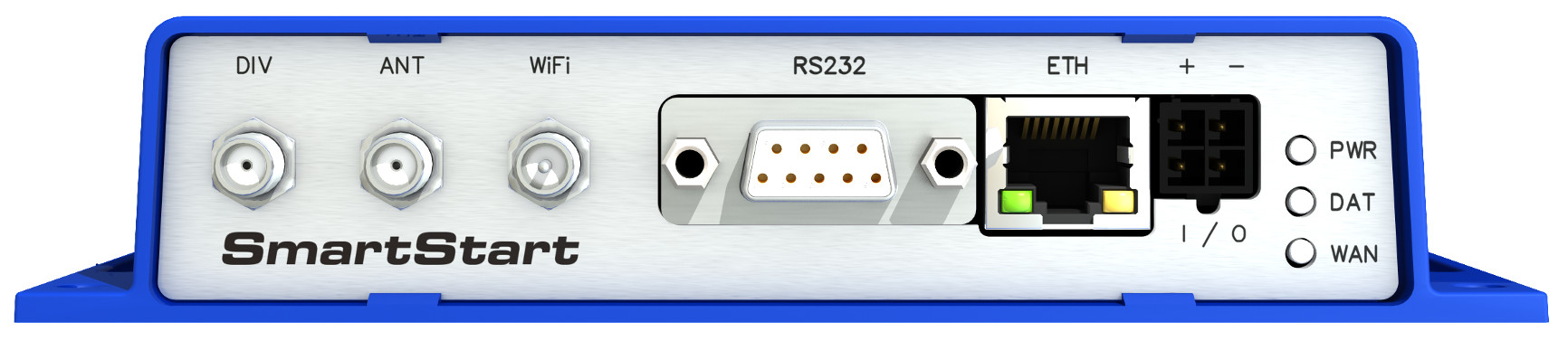

The front panel of the router hosts all the connectors, as illustrated in the image below.
| Caption | Type | Description |
|---|---|---|
| PWR/IO | 4-pin | Connector for the power supply and the digital input and output; see Power Supply. |
| ETH | RJ45 | 10/100 Mbps Ethernet connection to the local network; see Ethernet Interfaces. |
| RS-232 | DB9 female | RS-232 serial interface; see RS-232 Interface and User Interfaces. |
| ANT | SMA | Connector for the main antenna of the cellular module; see Antenna Connections and Cellular Module Parameters. |
| DIV | SMA | Connector for the diversity antenna of the cellular module; see Antenna Connections and Cellular Module Parameters. |
| Wi-Fi | RP-SMA | Connector for the Wi-Fi antenna, versions with the Wi-Fi module only; see Antenna Connections and Wi-Fi Parameters. |
The rear panel contains two SIM card holders and the reset button:
| Caption | Type | Description |
|---|---|---|
| SIM1, SIM2 | — | Two holders for 3 V and 1.8 V SIM cards; see SIM Card Slots. |
| RST | — | Button to restore the default configuration and reboot the router; see RST Button Functions. |
Package Contents

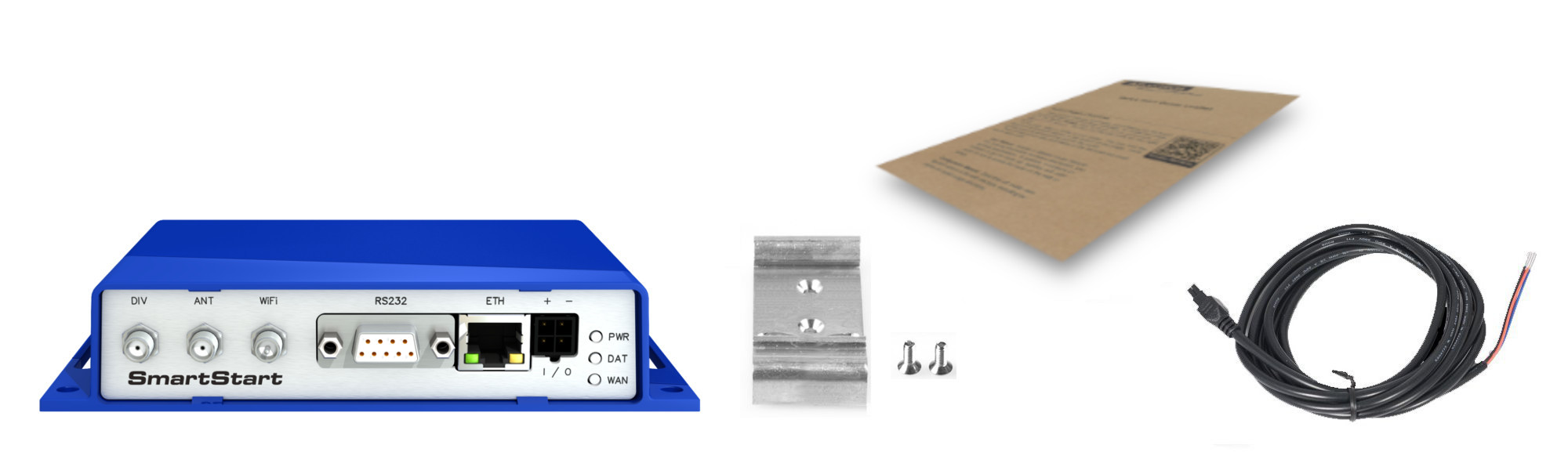

The basic router set includes the following items:
| Item | Description | Quantity |
|---|---|---|
| Router | SmartStart SL305 router | 1 |
| Power & I/O Cable | Cable for the power supply and digital I/O, 1.5 m long | 1 |
| DIN Rail Clip | Clip for the DIN rail, two screws included | 1 set |
| Quick Start Guide | Printed quick start guide included in the package | 1 |
Product Revisions
The revision history below summarizes key updates to the SmartStart SL305 product line. Note that some revisions may not be available for certain order codes. The revision number is printed on the packaging and product labels and is visible in the web interface: Status → General → System Information → Product Revision (the default revision 1.0 may not be shown there).
| Rev.# | Description |
|---|---|
| 1.0 | Initial version (revision not printed on the labels). |
| 2.0 | New SIM slot type (PCN-2022-03). |
