Functionalities and Scenarios

Key Functionalities

IPv6 Dual Stack: Supports modern and legacy IP addressing, ensuring comprehensive network compatibility.
DHCP and NAT: Provides seamless network configuration and address translation for efficient network management.
Dynamic DNS (DynDNS): Facilitates access to the router via dynamic IP addresses, enhancing remote connectivity.
VLAN Support: Enables segmented network configurations for enhanced security and network optimization.
QoS (Quality of Service): Ensures bandwidth prioritization for critical applications, maintaining optimal network performance.

Low Power Mode: Optimizes energy consumption for efficient operation, reducing overall power requirements.
Hardware Watchdog: Ensures system stability by continuously monitoring performance and auto-recovering from potential issues.
Linux Script Support: Enables advanced automation and customization through flexible scripting capabilities.
Multi-Configuration Storage: Allows storing up to four configurations, switchable via web interface, SMS, or digital input.
PPP Connection Monitoring: Automatically restarts the router in case of connection failure, minimizing downtime.
Configuration and Firmware Updates: Accessible remotely via Advantech's public server or a dedicated server, ensuring easy maintenance.

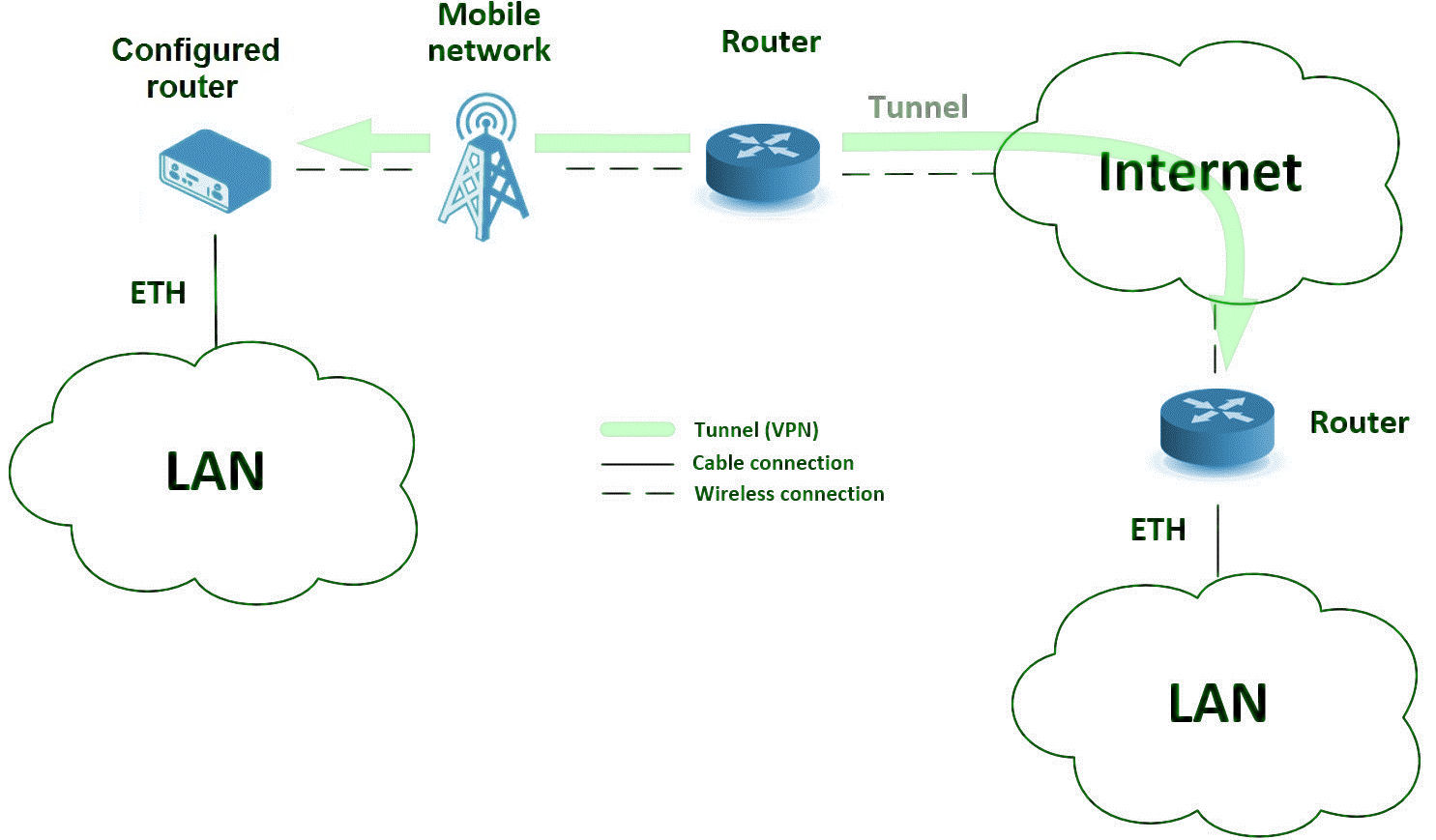

Acts as a backup connection when the primary connection fails.
Supports backup options, including:
- PPPoE connections
- Wired Ethernet connections
- WiFi (for models with WiFi capabilities)

Configures a secure VPN tunnel to interconnect the router with a remote network using its cellular interface.
Enables secure and encrypted communication over the Internet.

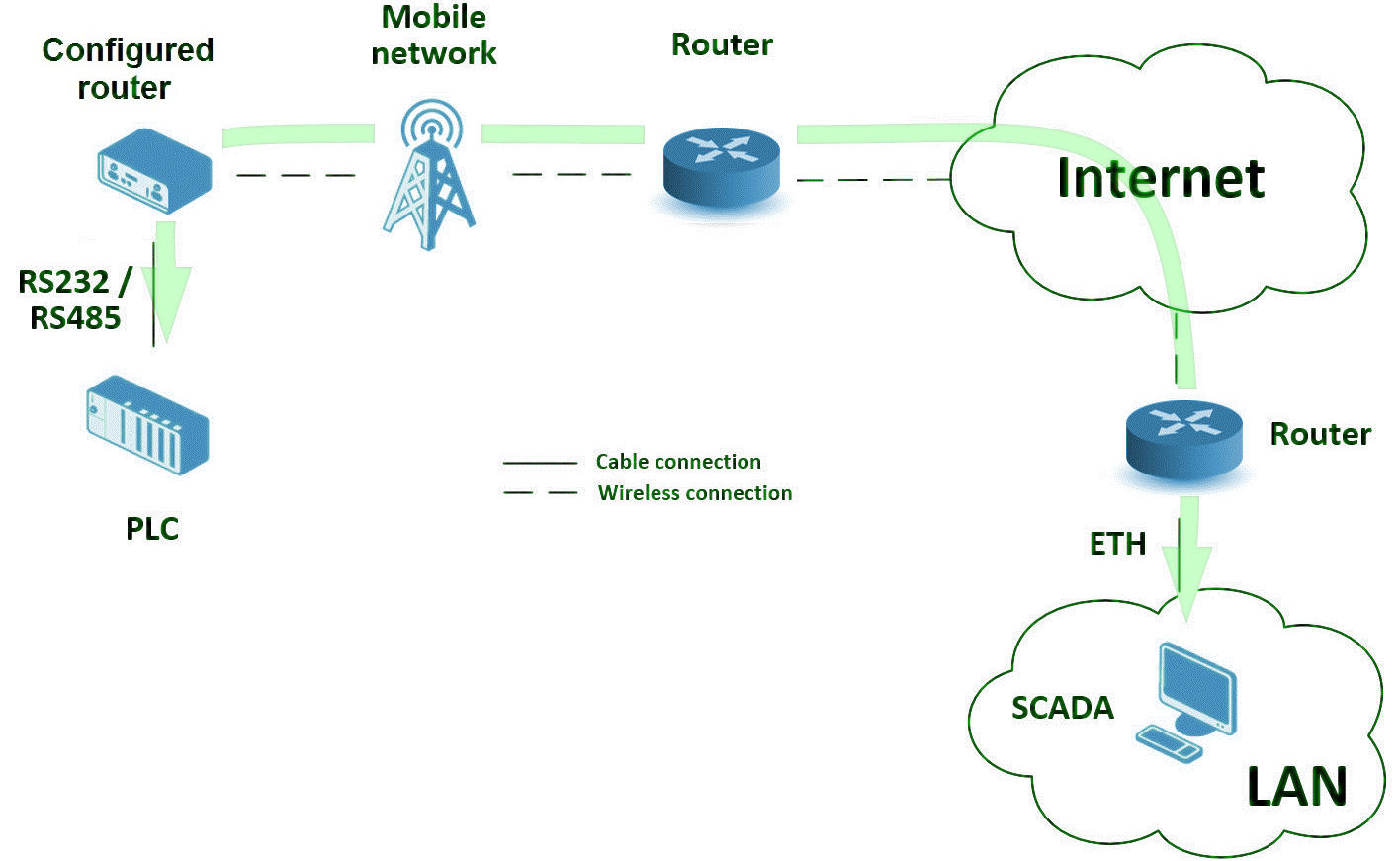

Facilitates access to a PLC device connected to the router's serial interface.
Allows remote control of the PLC via the Internet from a local network (e.g., SCADA system).
