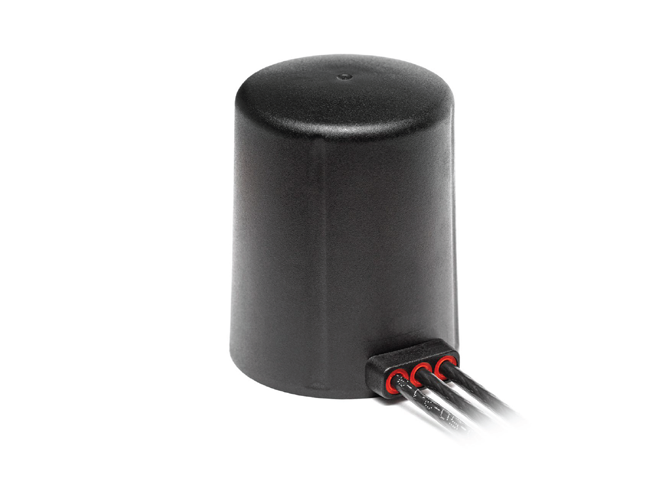

BB-2J7741MGFA-500

Life Cycle: available

4G LTE MIMO and GNSS Antenna

Compatible with

• ICR-3231
• ICR-3232
• ICR-3241
• SR304
• SR305
• SR308
• SR309
• SR310
• ICR-2041
• ICR-2031
• ICR-2431
• ICR-2432
• ICR-2437
• ICR-2441
• ICR-2531
• ICR-2631
• ICR-2734 Libratum
• ICR-2834

Technical description

• Cellular / LTE - 698-960 MHz, 1710-2700 MHz, 2500-2700 MHz
• GPS/GLONASS/QZSS/Galileo - 1575-1606 MHz
• High Performance
• Magnetic Mount
• Ground Plane Dependent
• Dimensions: Ø 54 x 68.2 mm
• Certificates: IP67, IP69, IK09
• Length of cables - 5m
