ICR-3232

Life Cycle: production

Regions: AUS/NZ/BRA

4G LTE Router & Gateway

for AUS/NZ/BRA region

Technical description

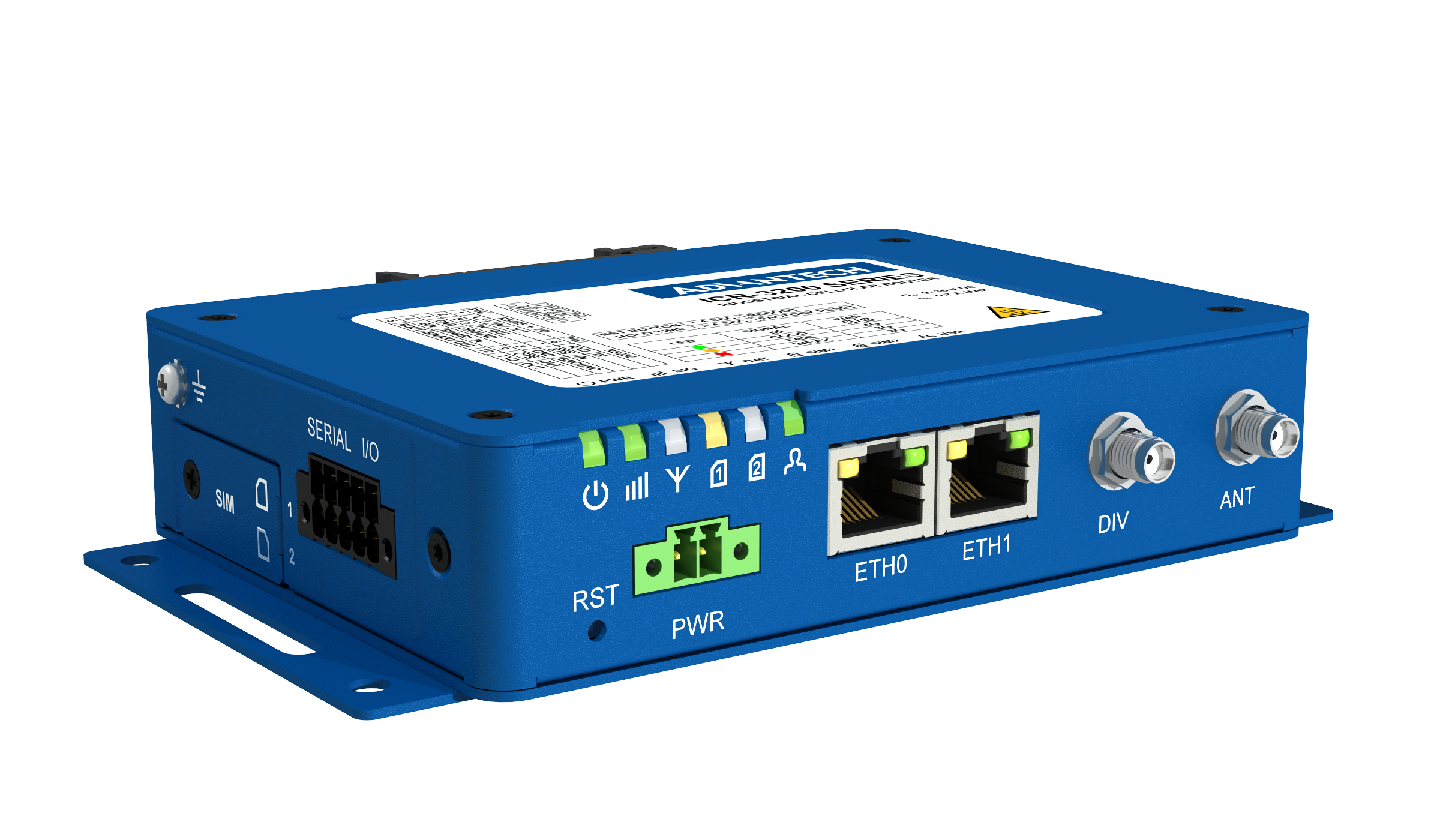

ICR-3232 is an industrial cellular router intended for the Australian market. This router is an ideal device for wireless communication in mobile networks that make use of LTE, HSPA+, UMTS, EDGE or GPRS technology. Due to the high speed of data transfer up to 150 Mbps (download) and up to 50 Mbps (upload) is this router an ideal solution for specialized M2M devices and IoT as well as for wireless connection of traffic and security camera systems, individual computers, LAN networks, automatic teller machines (ATM) and other self-service terminals.

As a standard, the ICR-3232 router is equipped with two Ethernet 10/100 Mbit/s, one combined serial line RS232/RS485, one binary input and one output. ICR-3232 also contains two readers for 3 V and 1.8 V SIM cards, which are placed on the left side of the device.  The router can be equipped with a WiFi module, but this must be part of the initial configuration – it cannot be added to the router at some point in the future. The router can be provided only in a metal casing.

Compatible accessories

• Antennas
• Cables
• Power sources
• Other
