ICR-4261

Life Cycle: development

Regions: EMEA

Industrial 5G Router & IoT Gateway
for EMEA region

Technical description

The ICR-41/4200 router family is a cutting-edge series of industrial routers that harness the power of 5G technology. Designed for the global market it offers lightning-fast data transfer speed, low latency, and high network availability. Those 5G routers provide several advantages over 4G/3G/2G counterparts making them the ideal choice for a wide range of industrial applications.
Low latency is probably the most significant advantage of the 5G and ICR-41/4200 router family. By reducing delays in data transmission these routers ensure real-time responsiveness and make them well-suited for applications that require immediate feedback or interaction. Industries can benefit from seamless and instant communication regardless of their geographical location enabling them to monitor and control critical processes with precision and accuracy.

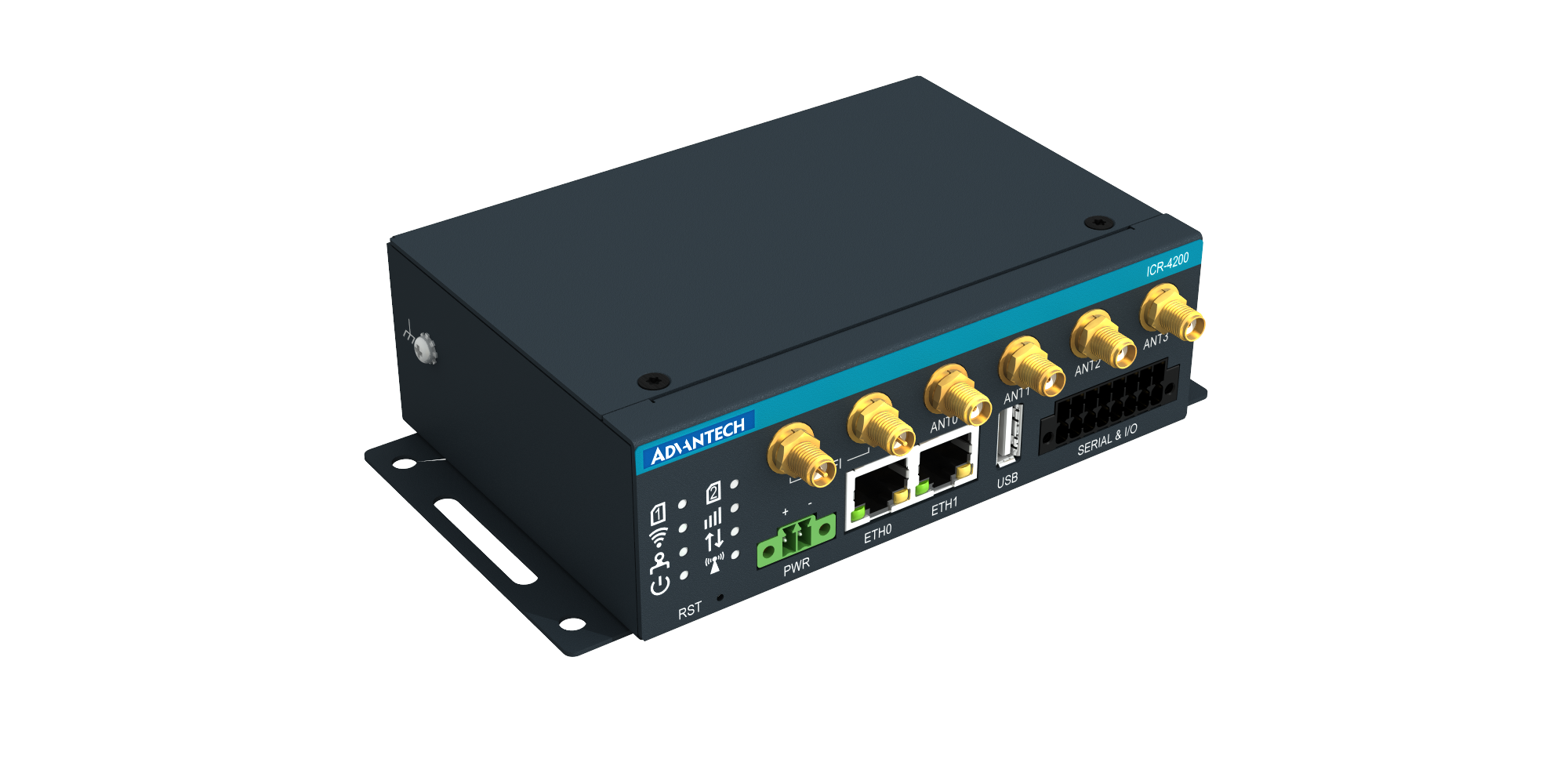

The cellular router ICR-4261 is built on a powerful hardware platform with a CPU 1.6 GHz that delivers sufficient performance for most today's applications. Advanced processors in combination with 1 GB RAM and 3.35 GB space for customer applications provide the necessary power to handle complex tasks efficiently.

As a standard, ICR-4261 is equipped with two Gigabit Ethernet ports, two serial ports (RS232/RS485), four digital inputs, two digital outputs, one USB host 3.0, GNSS receiver. This router contains two SIM readers, which are placed on the right side of the device. Optionally can be a router equipped with WiFi 6 (IEEE802.11 ax/ac/a/b/g/n 2.4 GHz / 5 GHz / 6 GHz, 2×2 MIMO).

This enables industries to leverage the full potential of edge computing, empowering them to process and analyze data closer to the source resulting in reduced latency and improved operational efficiency.
In terms of security, the ICR-41/4200 router family prioritizes the protection of critical infrastructure systems. These routers incorporate features like TPM 2.0 and Tamper Button, ensuring the integrity and safety of data transmission. With robust security measures in place, businesses can confidently deploy these routers in sensitive environments knowing that their critical assets and information are well-protected.

Naturally, ICR-41/4200 offers extensive networking features and easy management capabilities. With their intuitive web interfaces users can configure and manage the routers remotely. The routers support multiple configuration profiles, automatic firmware updates, and customizable software options allowing businesses to tailor the routers to their specific needs. This flexibility enables seamless integration with existing systems and the implementation of additional features as required.

To streamline management and deployment of ICR-41/4200 router family can be easily managed using a comprehensive cloud-based tool WebAccess/DMP. This software tool enables centralized management, provisioning, and monitoring of multiple routers, simplifying the process of scaling and maintaining a network infrastructure or centralized management of VPN connections.
ICR-41/4200 router family represents a significant advancement in industrial networking. With advantages such as gigabit Ethernet speed, low latency, and high network availability, these routers empower industries to optimize processes, drive innovation, and achieve operational excellence. Combining powerful performance, robust security, and easy management are ICR-41/4200 router family the perfect solution for demanding industrial applications enabling businesses to thrive in the era of 5G connectivity.
