SL305

Life Cycle: production

Regions: EMEA, LATAM

4G LTE Router & Gateway

for EMEA & LATAM region

Technical description

The SmartStart SL305 is the latest version of cellular router from SmartStart family routers. The router uses the newest Cat.4 LTE services. SL305 models from the SmartStart line is a cellular router equipped with an extended eMMC storage with 1.3 GB assigned for software customization. The new size of internal memory provides ample storage for custom scripts, software applications, and a wide variety of protocols using Router Apps (User modules) or Node-RED.

Due to the high speed of data transfer up to 150 Mbps (download) and up to 50 Mbs (upload) is an ideal solution as for the wireless connection of traffic and security camera systems, individual computers, LAN networks, automatic teller machines (ATM) and other self-service terminals.

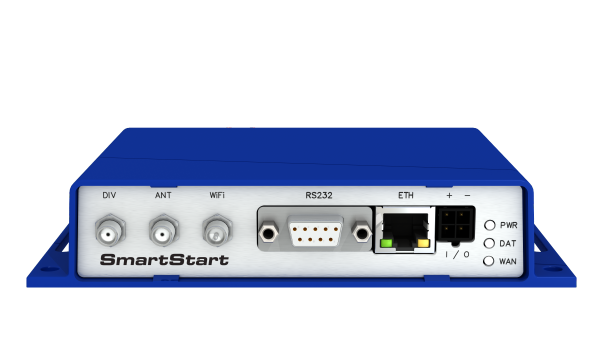

SmartStart SL305 is equipped with a powerful microprocessor ARM Cortex-A8 at 1000 MHz. As a standard, SL305 is equipped with one Ethernet 10/100 Mbps port, with one RS232 a port using 9 wires (DB9 Female), with one digital input and one digital output. Optionally can be router equipped with a WiFi module using a 2.4 GHz band. This router contains two SIMs readers, which are placed on the rear side of the device. The device is placed in an original robust plastic case. Customers can use wall mounting or use the supplied DIN holder.

The router can be easily installed, monitored by using WebAccess/DMP software. WebAccess/VPN is a perfect way how to provide a fixed IP address and secure the router.

Compatible accessories

• Antennas
• Cables
• Power sources
• Other
