Product Overview

Introduction

The ICR-3200 product family consists of advanced cellular routers designed to address diverse industrial requirements. With a variety of models offering a wide range of features and specifications, these routers ensure reliable connectivity for industrial applications. For additional details, see Functionalities and Scenarios.

The secure, password-protected web interface enables users to monitor detailed statistics, including activity logs, signal strength, and system logs. For guidance on first-time setup, refer to Initial Configuration.

Model Overview

The ICR-3200 product family includes several models, each tailored to specific regions and applications. The table below summarizes the available models and their features.

Tips

All ICR-3200 series models are housed in a metal enclosure.

Order Code	Region	Cellular	ETH	I/O	Serial	SIM	WiFi	GNSS	FN	EL
ICR-3201	Global	–	2	✓	✓	–	–	–	–	–
ICR-3201W	Global	–	2	✓	✓	–	✓	–	–	–
ICR-3211B	Global	LTE Cat-M1	2	✓	✓	✓	–	–	–	–
ICR-3231	EMEA	LTE Cat.4	2	✓	✓	✓	–	–	–	–
ICR-3231W	EMEA	LTE Cat.4	2	✓	✓	✓	✓	✓	–	–
ICR-3231-EL	EMEA	LTE Cat.4	2	✓	✓	✓	–	–	–	✓
ICR-3232	ANZ	LTE Cat.4	2	✓	✓	✓	–	–	–	–
ICR-3232W	ANZ	LTE Cat.4	2	✓	✓	✓	✓	✓	–	–
ICR-3241	NAM	LTE Cat.4	2	✓	✓	✓	–	–	–	–
ICR-3241W	NAM	LTE Cat.4	2	✓	✓	✓	✓	✓	–	–
ICR-3241-EL	NAM	LTE Cat.4	2	✓	✓	✓	–	–	–	✓
ICR-3241-1ND	NAM	LTE Cat.4	2	✓	✓	✓	–	–	✓	–
ICR-3241W-1ND	NAM	LTE Cat.4	2	✓	✓	✓	✓	✓	✓	–

✓ = included · – = not available · hover a heading or cell for details

Hardware Components

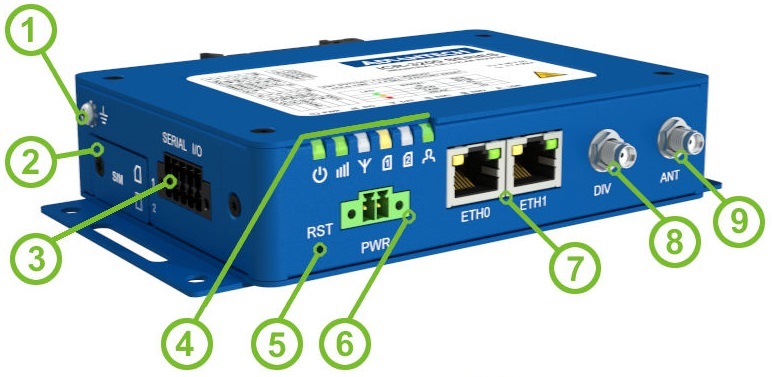

The ICR-3200 series supports a wide array of hardware features, as illustrated in the image below. Refer to the Model Overview section for model-specific details.

#	Caption	Type	Description
1	Grounding Screw	M3	Ensure proper grounding; see Power Supply and Grounding.
2	SIM Slots	Mini SIM	Two SIM card slots; see SIM Card Slots.
3	Serial I/O	10-pin terminal	RS232, RS485, and digital I/O interfaces; see Serial and I/O Ports.
4	LEDs	-	Status LED indicators; see LED Indicators.
5	Reset Button (RST)	-	Button to reboot the router or restore the defaults; see Reset.
6	Power Supply (PWR)	2-pin terminal	Connect the power supply; see Power Supply and Grounding.
7	Ethernet Ports (ETH0, ETH1)	RJ45	100 Mbps Ethernet ports; see Ethernet Interfaces.
8	Diversity Antenna (DIV)	SMA	Connector for cellular diversity antenna; see Antenna Connections and Cellular Module Parameters.
9	Main Antenna (ANT)	SMA	Connector for the main cellular antenna; see Antenna Connections and Cellular Module Parameters.

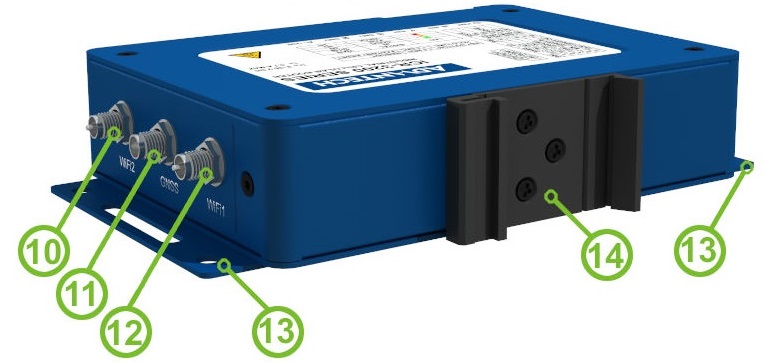

#	Caption	Type	Description
10	Wi-Fi Antenna 1 (WiFi1)	R-SMA	Connector for the first Wi-Fi antenna; see Antenna Connections and Wi-Fi Parameters.
11	GNSS Antenna	SMA	Connector for GNSS antenna; see Antenna Connections and GNSS Parameters.
12	Wi-Fi Antenna 2 (WiFi2)	R-SMA	Second Wi-Fi antenna connector, also used for Bluetooth; see Bluetooth Support and Bluetooth Parameters.
13	Wall Mount Clips	-	Standard wall-mounting clips; see Wall Mounting.
14	DIN Rail Clip	-	Pre-installed DIN rail clip; see DIN Rail Mounting.

Package Contents

Each router package includes the following:

Item	Description	Quantity

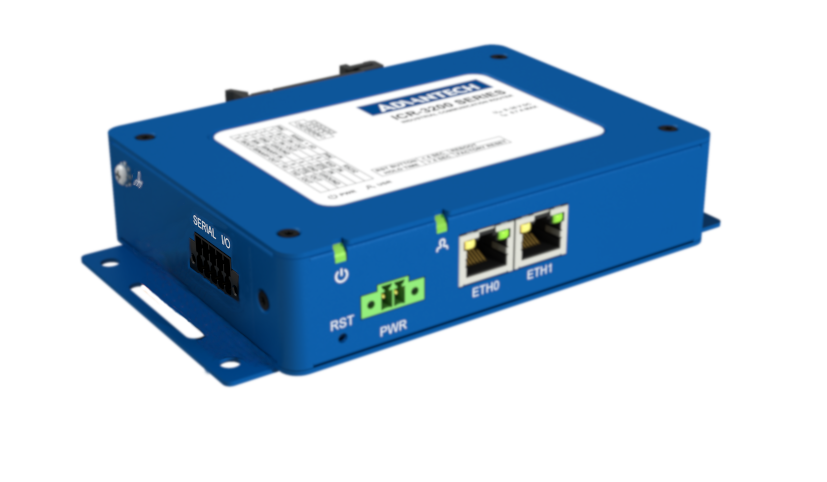

Router	ICR-3200 series router	1

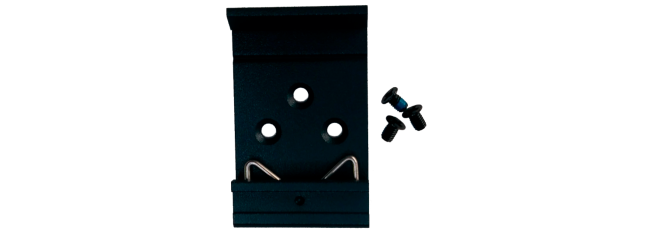

DIN Rail Mount	DIN rail clip for mounting on EN 60715 rails; pre-installed on the router	1 set

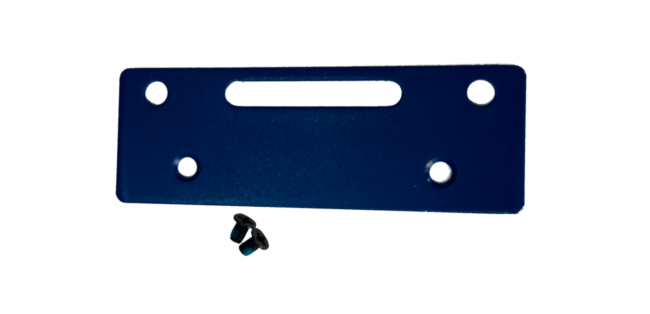

Wall Mount Wings	Wall mounting clips for surface installation; pre-installed on the router	2 pcs

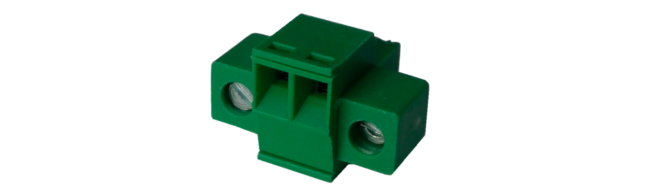

Power Terminal Block	2-pin terminal block for DC power supply connection; pre-installed on the router	1

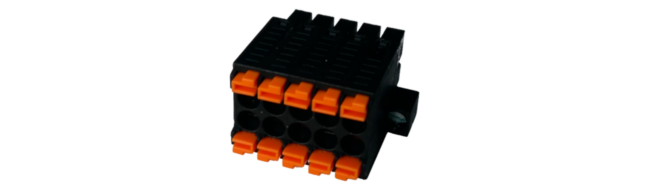

I/O Terminal Block	10-pin terminal block for RS232, RS485, and digital I/O; pre-installed on the router	1
Quick Start Guide	Printed quick start guide included in the package	1

Product Revisions

The revision history below summarizes key updates to the ICR-3200 product line. The revision number is printed on the packaging and product labels and is visible in the web interface: Status → General → System Information → Product Revision.

Rev.#	Description
1.0	Initial version (revision not printed on the labels).
2.0	New design of the mainboard (PCN-2022-01).
2.1	Improved surge pulse immunity on the mainboard (PCN-2023-06).
