Product Overview

Introduction

The ICR-4400 (v4) product family consists of high-speed routers designed to address demanding industrial requirements — from the ICR-4401 LAN router, through the ICR-4434 LTE Advanced Cat.12 router, up to the ICR-4461 5G NR router. All models share a gigabit Ethernet switch with an SFP cage, serial interfaces with CAN bus, and rich I/O. For additional details, see Functionalities and Scenarios.

The secure, password-protected web interface enables users to monitor detailed statistics, including activity logs, signal strength, and system logs. For guidance on first-time setup, refer to Initial Configuration.

Model Overview

The ICR-4400 product family includes several models, each tailored to specific regions and applications. The table below summarizes the available models and their features.

Tips

• Order code suffixes: S = PoE PSE, W / W1 / W3 = dual-band Wi-Fi module, -1ND = FirstNet certified.
• The W1 versions have no E8 certification and a limited operating temperature range of −40 °C to +60 °C.

Order Code	Region	Cellular	ETH	I/O	Serial	USB	SD	PoE	SIM	WiFi	GNSS	FN
ICR-4401	Global	–	✓	✓	✓	✓	✓	–	–	–	–	–
ICR-4401S	Global	–	✓	✓	✓	✓	✓	✓	–	–	–	–
ICR-4401W	Global	–	✓	✓	✓	✓	✓	–	–	✓	–	–
ICR-4401WS	Global	–	✓	✓	✓	✓	✓	✓	–	✓	–	–
ICR-4401W1	Global	–	✓	✓	✓	✓	✓	–	–	✓	–	–
ICR-4401W1S	Global	–	✓	✓	✓	✓	✓	✓	–	✓	–	–
ICR-4434	Global	LTE Cat.12	✓	✓	✓	✓	✓	–	✓	–	✓	–
ICR-4434S	Global	LTE Cat.12	✓	✓	✓	✓	✓	✓	✓	–	✓	–
ICR-4434W	Global	LTE Cat.12	✓	✓	✓	✓	✓	–	✓	✓	✓	–
ICR-4434WS	Global	LTE Cat.12	✓	✓	✓	✓	✓	✓	✓	✓	✓	–
ICR-4434W1	Global	LTE Cat.12	✓	✓	✓	✓	✓	–	✓	✓	✓	–
ICR-4434W1S	Global	LTE Cat.12	✓	✓	✓	✓	✓	✓	✓	✓	✓	–
ICR-4461	EMEA-NAM	5G NR	✓	✓	✓	✓	✓	–	✓	–	✓	–
ICR-4461S	EMEA-NAM	5G NR	✓	✓	✓	✓	✓	✓	✓	–	✓	–
ICR-4461W3	EMEA-NAM	5G NR	✓	✓	✓	✓	✓	–	✓	✓	✓	–
ICR-4461W3S	EMEA-NAM	5G NR	✓	✓	✓	✓	✓	✓	✓	✓	✓	–
ICR-4461-1ND	EMEA-NAM	5G NR	✓	✓	✓	✓	✓	–	✓	–	✓	✓
ICR-4461S-1ND	EMEA-NAM	5G NR	✓	✓	✓	✓	✓	✓	✓	–	✓	✓
ICR-4461W3-1ND	EMEA-NAM	5G NR	✓	✓	✓	✓	✓	–	✓	✓	✓	✓
ICR-4461W3S-1ND	EMEA-NAM	5G NR	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓

✓ = included  ·  – = not available  ·  hover a heading or cell for details

Hardware Components

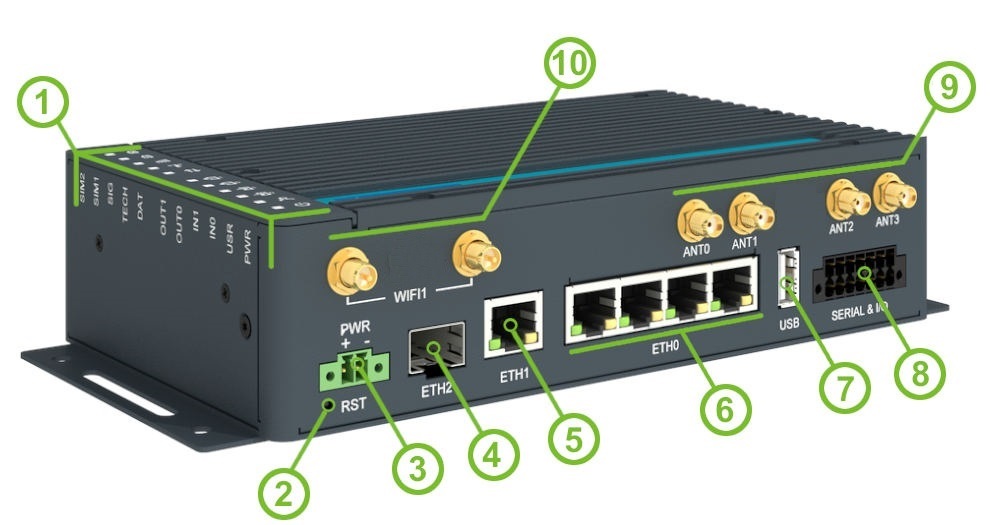

The v4 series supports a wide array of hardware features, as illustrated in the image below. Refer to the Model Overview section for model-specific details.

#	Caption	Type	Description
1	LEDs	—	Status LED indicators; see LED Indicators.
2	RST	—	Button to reboot the router or restore the defaults; see Reset.
3	PWR	2-pin terminal	Power supply socket; see Power Supply.
4	ETH2	SFP cage	SFP cage socket; see SFP Cage.
5	ETH1	RJ45	1 Gb Ethernet for the second LAN; see Ethernet Interfaces.
6	ETH0	RJ45	1 Gb Ethernet switched connection (with four ports) for the first LAN; see Ethernet Interfaces.
7	USB	USB-A	USB 2.0 host port; see USB Port.
8	SERIAL & I/O	14-pin terminal	RS232, RS485, CAN bus, digital input, and digital output interfaces; see Serial and I/O Port and I/O Parameters.
9	ANT0, ANT1, ANT2, ANT3	SMA female	Cellular module antenna connectors (cellular models only); on the ICR-4461, ANT1 and ANT3 are shared with GNSS. See Antenna Connections, Cellular Module Parameters, and GNSS Parameters.
10	WIFI1	RP-SMA female	Connectors for the Wi-Fi antennas (W models); on the ICR-4461, the right-hand Wi-Fi connector can be used for a Bluetooth antenna. See Antenna Connections, Wi-Fi Parameters, and Bluetooth Parameters.

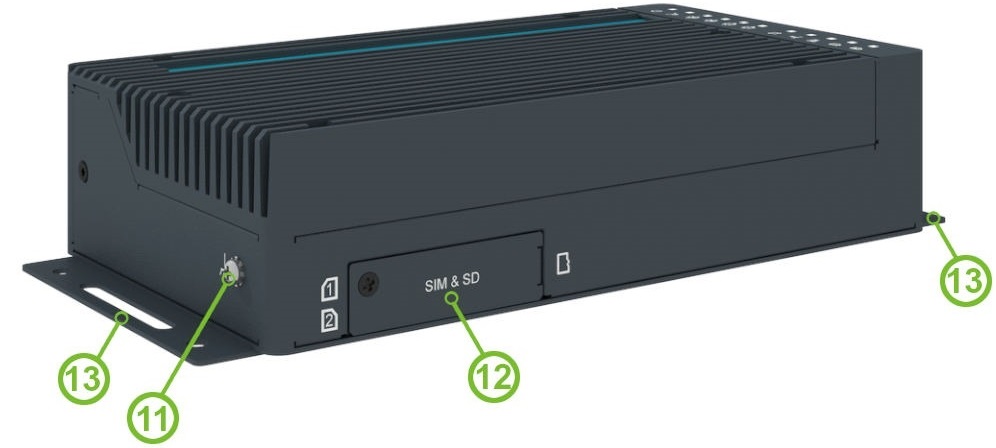

#	Caption	Type	Description
11	Grounding Screw	M3	Ensure proper grounding; see Power Supply.
12	SIM Slots, microSD Slot	Mini SIM, microSD	Two Mini SIM card slots (cellular models only) and a microSD card slot; see SIM Card Slots, Cellular Module Parameters, and MicroSD Card.
13	Wall Clips	—	Wall mounting clips, included as standard accessories; see Wall Mounting.

Package Contents

Each router package includes the following:

Item	Description	Image	Quantity

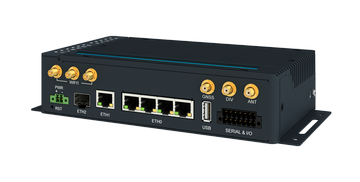

Router	ICR-4400 series router		1
Wall Mount Clips	Wall mounting clips; pre-installed on the router		2 pcs
Power Terminal Block	2-pin terminal block for the power supply; pre-installed on the router		1

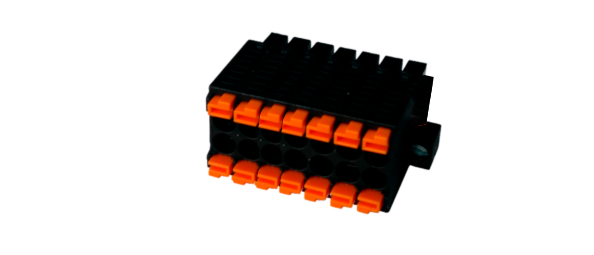

Serial & I/O Terminal Block	14-pin terminal block for RS232, RS485, CAN bus, and I/O; pre-installed on the router		1
Quick Start Guide	Printed quick start guide included in the package		1

Product Revisions

The revision history below summarizes key updates to the ICR-4400 product line. Note that some revisions may not be available for certain order codes. The revision number is printed on the packaging and product labels and is visible in the web interface: Status → General → System Information → Product Revision (the default revision 1.0 may not be shown there).

Rev.#	Description
1.0	Initial version (revision not printed on the labels).
2.0	New design of the mainboard and PoE board (PCN-2023-03).
