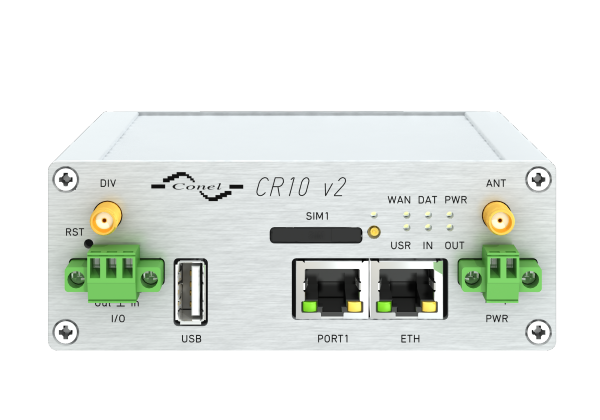

CR10 v2

Life Cycle: EOL, FW maintenance only

Regions:

CDMA Router

Technical description

BASIC INFORMATION

CR10 v2 is an industrial cellular router designed for communication in mobile networks that make use of CDMA technology. Due to the high speed of data transfer up to 14.7 Mbps (download) and up to 5.4 Mbps (upload) is this router an ideal solution for specialized M2M devices and IoT as well as for wireless connection of traffic and security camera systems, individual computers, LAN networks, automatic teller machines (ATM) and other self-service terminals.

EQUIPMENT

The standard configuration includes one Ethernet 10/100 port, one USB 2.0 Host port, one binary input and one output (I/O connector). The device also has one reader for 3 V and 1.8 V SIM cards. The interface range of this CDMA router can be expanded using an optional port (Port1) according to the customer's choice. The following expansion ports are available: Ethernet port 10/100, serial lines RS232, RS485, RS422 or MBUS, I/O (CNT board). The device is supplied either in plastic or metal casing according to customer's request.

Compatible accessories

Documents to download
