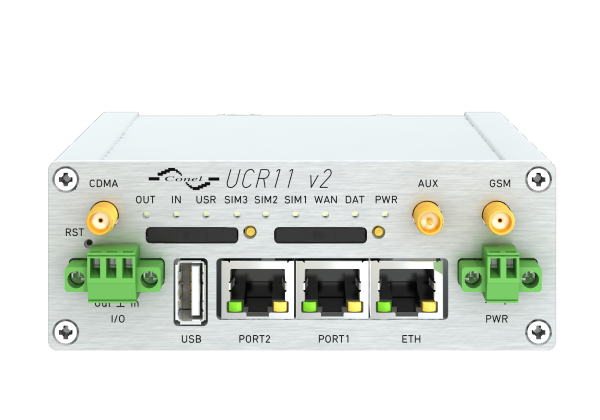

UCR11 v2

Life Cycle: EOL, FW maintenance only

Regions: APAC

UMTS/CDMA Router

Technical description

Router UCR11 v2 use two modules UMTS/HSDPA and CDMA for wirelessly connect vari-
ous equipments and devices via Ethernet interface 10/100 to the internet or intranet. Thanks to
high data transfer speed, up to 21.1 Mbit/s (download) and upload speed up to 5.76 Mbit/s for
UMTS module and up to 14.7 Mbit/s (download) and upload speed up to 5.4 Mbit/s for CDMA
module it is an ideal wireless solution for traffic and security camera systems, individual com-
puters, LAN networks, automatic teller machines (ATM) and other self-service terminals and
machines.
As a standard, UCR11 v2 router is equipped with one Ethernet 10/100, one USB Host
port, one binary Input/output (I/O) port and two SIM cards. The wide range of interface op-
tions of this router further expands an expansion PORT1 and PORT2 – selected by the cus-
tomer. For the expansion PORT1 are available Ethernet port 10/100, serial interface ports
RS232/RS485/RS422/MBUS or inputs/outputs (I/O – CNT). PORT2 may be equipped with
serial interfaces RS232/RS485/RS422/MBUS, wireless interfaces WIFI/WMBUS, SDH expan-
sion port or inputs/outputs (I/O – CNT). Both of ports can be fitted with internal switch (exp.
port SWITCH). This wireless router is supplied in a metal casing.
Configuration is done via web interface protected by password. The router supports cre-
ation of VPN tunnels using technologies IPsec, OpenVPN, L2TP to ensure safe communica-
tion. Web interface provides detail statistics about the router activities, signal strength, detailed
log, etc. Cellular router supports functions: DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control
by SMS and many other functions.
