ST352

Life Cycle: EOL, FW maintenance only

Regions:

Twin Cellular Module Router

Technical description

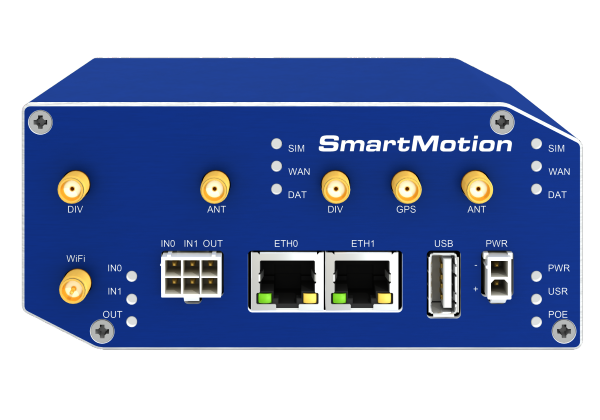

SmartMotion ST352 is an industrial cellular router intended for wireless communication in
mobile networks that make use of LTE, HSPA+, UMTS, CDMA, EDGE or GPRS technology.
The router is equipped with two independent cellular modules for backed up communication.
That’s why SmartMotion router is the ideal solution for the systems with high reliability needed.
The position of the first module is reserved for LTE technology with frequency bands 800,
900, 1800, 2100 and 2600 MHz. The second position is equipped with a module supporting
LTE technology with the same frequency bands. Due to the high speed of data transfer and
the previously mentioned high reliability of communication is this router an ideal solution for
specialized M2M devices and IoT as well as for wireless connection of traffic and security
camera systems, individual computers, LAN networks, automatic teller machines (ATM) and
other self-service terminals.
The standard configuration includes two Ethernet 10/100 ports, one USB 2.0 Host port,
two binary inputs and one output (I/O connector). The device also has four readers for 3 V and
1.8 V SIM cards, which are located on the rear panel of the router. The router also includes
a microSD card port that supports up to 64 GB card storage (32 GB in the case of SDHC
cards). The router can be equipped with a WiFi module, but this must be part of the initial
configuration – it cannot be added to the router at some point in the future. The router can be
equipped with PoE PD (Power over Ethernet – Powered Device), which allows the router to be
powered via Ethernet. It can also be equipped with PoE PSE (Power over Ethernet – Power
Source Equipment), which lets the router power other devices via Ethernet.
