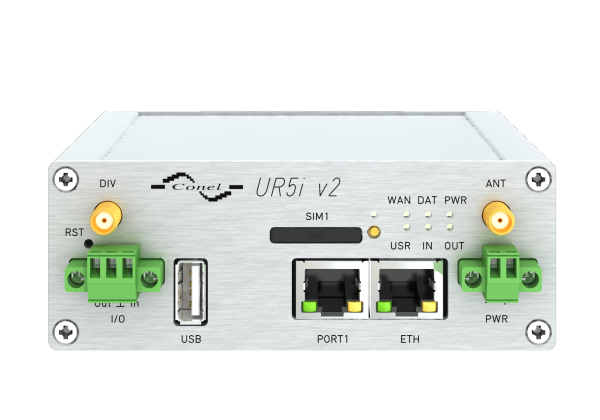

UR5i v2

Life Cycle: EOL, FW maintenance only

Regions:

UMTS/HSPA+ Router

Technical description

3G UMTS/HSPA router UR5i v2 is used to wirelessly connect various equipments and
devices via Ethernet interface 10/100 to the internet or intranet. Thanks to high data trans-
fer speed of up to 14,4 Mbps (download) and upload speed up to 5,76 Mbps it is an ideal
wireless solution for traffic and security camera systems, individual computers, LAN networks,
automatic teller machines (ATM) and other self-service terminals, etc.
As a standard, this exceptionally fast 3G router UR5i v2 is equipped with one Ethernet
10/100, one USB Host port, one binary input/output (I/O) port and one SIM card. To save
and backup communication data a version with two SIM cards is available. The wide range
of interface options of the 3G router further expands expansion Port1 and Port2, which are
selected by the customer. For Port1 are available: Ethernet port 10/100, serial interface ports
RS232, RS485, RS422, MBUS or inputs/outputs (I/O – CNT). Port2 may be equipped with
serial interfaces RS232, RS485, RS422, MBUS, wireless interfaces WIFI or WMBUS, SDH
expansion port or inputs/outputs (I/O – CNT). Both of ports can be fitted with internal switch
(exp. port SWITCH). This 3G wireless router is supplied either in a plastic or metal casing,
based on the requirements of the customer.
