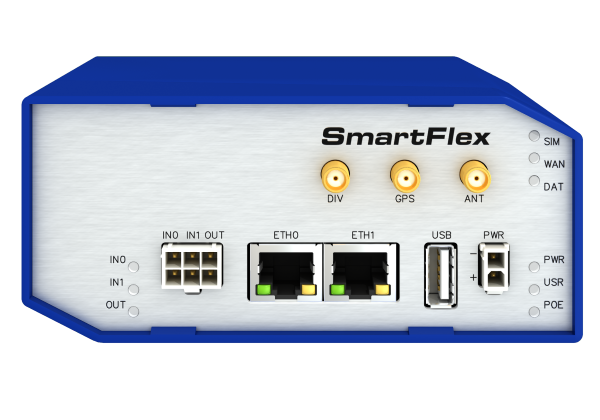

SmartFlex SR305 is an industrial cellular router intended for the North American market
(NAM). This router is an ideal device for wireless communication in mobile networks that make
use of LTE, HSPA+, UMTS, EDGE or GPRS technology. Due to the high speed of data transfer
(up to 100 Mbps download and up to 50 Mbps upload) this router is an ideal solution for
specialized M2M devices and IoT as well as for wireless connection of traffic and security
camera systems, individual computers, LAN networks, automatic teller machines (ATMs) and
other self-service terminals.
The standard configuration includes two Ethernet 10/100 ports, one USB 2.0 Host port,
two binary inputs and one output (I/O connector). The device also has two readers for 3 V and
1.8 V SIM cards, which are located on the rear panel of the router. The router also includes
a microSD card port that supports up to 64 GB card storage (32 GB in the case of SDHC
cards). The router can be equipped with a WiFi module, but this must be part of the initial
configuration – it cannot be added to the router at later date.
The router can be equipped with PoE PD (Power over Ethernet – Powered Device), which
allows the router to be powered via Ethernet. It can also be equipped with PoE PSE (Power
over Ethernet – Power Source Equipment), which enables the router to power other devices via
Ethernet. The SmartFlex can also be configured with a wide variety of port options. Options
include SWITCH – three switched Ethernet ports; RS232-RS485/422 – combination of serial
interfaces; RS232-RS485-ETH – combination of serial interfaces and an Ethernet port with
higher insulation. The router can be supplied in either plastic or metal casing, depending on
customer requirements.
Subscribe to all notifications for this product.
Datasheet_SR305_SmartFlex_08082023_email.pdf
Advantech_Global_Cellular_Routers_Brochure_20022024_email.pdf | 3 MB
SmartFlex_SR305_User_Manual_20230811.pdf | 8 MB | 14.08.2023
SmartFlex_Configuration_Manual_20240224.pdf | 7 MB | 24.02.2024
ADVANTECH CZECH_21_RA_certificate_EN.PDF | 23.09.2021
POS-2024-025_SmartFlex_SR305_DoC_CE_240202.pdf | 05.02.2024
POS-2024-026_SmartFlex_SR305_DoC_UKCA_240202.pdf | 05.02.2024
POS_2022_029_RoHS.pdf | 19.01.2023
POS_2022_030_REACH.pdf | 19.01.2023
POS_2022_031_WEEE.pdf | 19.01.2023
PO_2022_157_SmartFlex_Electric Safety ed 2014.pdf | 13.10.2022
PO_2022_158_SmartFlex_Electric Safety ed 2018.pdf | 13.10.2022
PO_2022_169_SmartFlex_Hazardous Locations.pdf | 21.11.2022
SmartFlex - PTCRB Certified Certificate.pdf | 30.05.2023
SmartFlex_AT&T_Certified_Firmware.zip | 07.08.2023
SmartFlex_Verizon_Certified_Firmware.zip | 20.09.2023
Smartflex_SR305_ATEX_Type_Examination_Certificate.pdf | 07.06.2022
Smartflex_SR305_FCC_Grant_2AIQR.pdf | 07.06.2022
Smartflex_SR305_MR_Rogers_6_1_9.pdf | 07.06.2022
Smartflex_SR305_Rogers Data _ RF Testing Waiver_Approved_SmartFlex_6_1_8.pdf | 07.06.2022
Smartflex_SR305_Rogers_Certification.pdf | 07.06.2022
Smartflex_SR305_UL_C1D2_Certificate_of_Compliance.pdf | 07.06.2022
SR30X0X01X_SmartFlex_000.png | 2 MB
SR30X0X01X_SmartFlex_001.png | 2 MB
SR30X0X01X_SmartFlex_002.png | 2 MB
SR30X0X01X_SmartFlex_003.png | 2 MB
SR30X0X01X_SmartFlex_004.png | 2 MB
SR30X0X01X_SmartFlex_005.png | 2 MB
SR30X0X02X_SmartFlex_SL_000.png | 2 MB
SR30X0X02X_SmartFlex_SL_001.png | 2 MB
SR30X0X02X_SmartFlex_SL_002.png | 2 MB
SR30X0X02X_SmartFlex_SL_003.png | 2 MB
SR30X0X02X_SmartFlex_SL_004.png | 2 MB
SR30X0X11X_SmartFlex_LTE_SWITCH_000.png | 2 MB
SR30X0X11X_SmartFlex_LTE_SWITCH_001.png | 2 MB
SR30X0X11X_SmartFlex_LTE_SWITCH_002.png | 2 MB
SR30X0X12X_SmartFlex_LTE_SWITCH_SL_000.png | 2 MB
SR30X0X12X_SmartFlex_LTE_SWITCH_SL_001.png | 2 MB
SR30X0X12X_SmartFlex_LTE_SWITCH_SL_002.png | 2 MB
SR30X0X31X_SmartFlex_RS232_RS485_000.png | 2 MB
SR30X0X31X_SmartFlex_RS232_RS485_001.png | 2 MB
SR30X0X31X_SmartFlex_RS232_RS485_002.png | 2 MB
SR30X0X32X_SmartFlex_RS232_RS485_SL_000.png | 2 MB
SR30X0X32X_SmartFlex_RS232_RS485_SL_001.png | 2 MB
SR30X0X32X_SmartFlex_RS232_RS485_SL_002.png | 2 MB
SR30X0X41X_SmartFlex_ETH_RS485_RS232_000.png | 2 MB
SR30X0X41X_SmartFlex_ETH_RS485_RS232_001.png | 2 MB
SR30X0X41X_SmartFlex_ETH_RS485_RS232_002.png | 2 MB
SR30X0X42X_SmartFlex_ETH_RS485_RS232_SL_000.png | 2 MB
SR30X0X42X_SmartFlex_ETH_RS485_RS232_SL_001.png | 2 MB
SR30X0X42X_SmartFlex_ETH_RS485_RS232_SL_002.png | 2 MB
SR30X1X01X_SmartFlex_WiFi_000.png | 2 MB
SR30X1X01X_SmartFlex_WiFi_001.png | 2 MB
SR30X1X01X_SmartFlex_WiFi_002.png | 2 MB
SR30X1X02X_SmartFlex_WiFi_SL_000.png | 2 MB
SR30X1X02X_SmartFlex_WiFi_SL_001.png | 2 MB
SR30X1X02X_SmartFlex_WiFi_SL_002.png | 2 MB
SR30X1X11X_SmartFlex_LTE_SWITCH_WiFi_000.png | 2 MB
SR30X1X11X_SmartFlex_LTE_SWITCH_WiFi_001.png | 2 MB
SR30X1X11X_SmartFlex_LTE_SWITCH_WiFi_002.png | 2 MB
SR30X1X12X_SmartFlex_LTE_SWITCH_WiFi_SL_000.png | 2 MB
SR30X1X12X_SmartFlex_LTE_SWITCH_WiFi_SL_001.png | 2 MB
SR30X1X12X_SmartFlex_LTE_SWITCH_WiFi_SL_002.png | 2 MB
SR30X1X31X_SmartFlex_RS232_RS485_WiFi_000.png | 2 MB
SR30X1X31X_SmartFlex_RS232_RS485_WiFi_001.png | 2 MB
SR30X1X31X_SmartFlex_RS232_RS485_WiFi_002.png | 2 MB
SR30X1X32X_SmartFlex_RS232_RS485_WiFi_SL_000.png | 2 MB
SR30X1X32X_SmartFlex_RS232_RS485_WiFi_SL_001.png | 2 MB
SR30X1X32X_SmartFlex_RS232_RS485_WiFi_SL_002.png | 2 MB
SR30X1X41X_SmartFlex_ETH_RS485_RS232_WiFi_000.png | 2 MB
SR30X1X41X_SmartFlex_ETH_RS485_RS232_WiFi_001.png | 2 MB
SR30X1X41X_SmartFlex_ETH_RS485_RS232_WiFi_002.png | 2 MB
SR30X1X42X_SmartFlex_ETH_RS485_RS232_WiFi_SL_000.png | 2 MB
SR30X1X42X_SmartFlex_ETH_RS485_RS232_WiFi_SL_001.png | 2 MB
SR30X1X42X_SmartFlex_ETH_RS485_RS232_WiFi_SL_002.png | 2 MB
SmartFlex_RS232_RS485_ETH_WiFi_plastic.PDF | 1 MB
SmartFlex_RS232_RS485_ETH_WiFi_plastic.STEP | 32 MB
SmartFlex_RS232_RS485_ETH_plastic.PDF | 1 MB
SmartFlex_RS232_RS485_ETH_plastic.STEP | 31 MB
SmartFlex_RS232_RS485_WiFi_plastic.PDF | 1 MB
SmartFlex_RS232_RS485_WiFi_plastic.STEP | 33 MB
SmartFlex_RS232_RS485_plastic.PDF | 1 MB
SmartFlex_RS232_RS485_plastic.STEP | 31 MB
SmartFlex_SWITCH_metal.PDF | 1 MB
SmartFlex_SWITCH_metal.STEP | 30 MB
SmartFlex_Switch_WIFI_metal.PDF | 1 MB
SmartFlex_Switch_WIFI_metal.STEP | 32 MB
SmartFlex_metal.PDF | 965 KB
SmartFlex_metal.STEP | 26 MB
SmartFlex_plastic.PDF | 969 KB
SmartFlex_plastic.STEP | 26 MB
Smart_flex_WIFI_metal.PDF | 1 MB
Smart_flex_WIFI_metal.STEP | 27 MB
SA-2021-01_FW_5.1.3_and_older_EN.pdf | 15.01.2021
SA-2021-02_DNSpooq_Vulnerabilities_EN.pdf | 24.02.2021
PCN-2018-01_FW_US_upgrade_version_to_6.1.5_EN.pdf | 08.01.2018
PCN-2018-03_Standoff_replacement_EN.pdf | 02.01.2018
PCN-2018-04_Screws_for_plastic_DIN_holder_EN.pdf | 05.02.2018
PCN-2018-06_Rogers_Certification_EN.pdf | 27.02.2018
PCN-2018-10_Uploading_of_hmpclient_UM_EN.pdf | 09.11.2018
PCN-2019-03_Unique_Default_Password_EN.pdf | 19.11.2019
PCN-2020-03_BB_SBD40_DIN_Bracket_Replacement.pdf | 20.04.2020
PCN-2021-04_New_Safety_Certification.pdf | 01.06.2021
PCN-2021-06_SmartStart_SmartFlex_Antenna_Replacement.pdf | 28.05.2021
PCN-2021-07_SmartFlex_ATEX_Termination.pdf | 15.10.2021
PCN-2022-02_WA_DMP_Activated.pdf | 23.05.2022
PCN-2022-03_SIM_Slot_Replacement.pdf | 06.09.2022
PCN-2023-07_Unique_EAN_Codes.pdf | 29.08.2023
Security_Guidelines_Application_Note_20240126.pdf | 26.01.2024
WireGuard_Application_Note_20220908.pdf | 09.09.2022
VLAN_Application_note_20220908.pdf | 09.09.2022
FlexVPN_Application_Note_20220908.pdf | 01.12.2022
Remote_Monitoring_Application_Note_20220908.pdf | 09.09.2022
IPsec_Tunnel_Application_Note_20220908.pdf | 09.09.2022
Router_Features_20220908.pdf | 09.09.2022
PCI_DSS_Compliance_Considerations_Application_Note_20220908.pdf | 09.09.2022
SNMP_ Object_Identifiers_Application_note_20231412.pdf | 14.12.2023
Commands_and_Scripts_20240130.pdf | 24.02.2024
Quality of Service _QoS__Application_Note_20220908.pdf | 09.09.2022
AT_commands_Application_note_20220908.pdf | 09.09.2022
Advantech Routers Watchdog Concept_Technical Note_20220908.pdf | 09.09.2022
Programming_of_Router_Apps_20220908.pdf | 09.09.2022
GRE_Tunnel_Application_Note_20230202.pdf | 02.02.2023
OpenVPN_tunnel_20231214.pdf | 14.12.2023
MTBF report SmartFlex SR305000xx.pdf | 13.12.2019
MTBF report SmartFlex SR305001xx SWITCH.pdf | 13.12.2019
MTBF report SmartFlex SR305003xx RS232 RS485.pdf | 13.12.2019
MTBF report SmartFlex SR305004xx RS232 RS485 ETH.pdf | 13.12.2019
MTBF report SmartFlex SR305080xx PSE.pdf | 13.12.2019
MTBF report SmartFlex SR305081xx SWITCH PSE.pdf | 13.12.2019
MTBF report SmartFlex SR305083xx RS232 RS485 PSE.pdf | 13.12.2019
MTBF report SmartFlex SR305084xx RS232 RS485 ETH PSE.pdf | 13.12.2019
MTBF report SmartFlex SR305090xx PD.pdf | 13.12.2019
MTBF report SmartFlex SR305091xx SWITCH PD.pdf | 13.12.2019
MTBF report SmartFlex SR305093xx RS232 RS485 PD.pdf | 13.12.2019
MTBF report SmartFlex SR305094xx RS232 RS485 ETH PD.pdf | 13.12.2019
MTBF report SmartFlex SR305100xx WIFI.pdf | 13.12.2019
MTBF report SmartFlex SR305101xx SWITCH WIFI.pdf | 13.12.2019
MTBF report SmartFlex SR305103xx RS232 RS485 WIFI.pdf | 13.12.2019
MTBF report SmartFlex SR305104xx RS232 RS485 ETH WIFI.pdf | 13.12.2019
MTBF report SmartFlex SR305180xx WIFI PSE.pdf | 13.12.2019
MTBF report SmartFlex SR305181xx SWITCH WIFI PSE.pdf | 13.12.2019
MTBF report SmartFlex SR305183xx RS232 RS485 WIFI PSE.pdf | 13.12.2019
MTBF report SmartFlex SR305184xx RS232 RS485 ETH WIFI PSE.pdf | 13.12.2019
MTBF report SmartFlex SR305190xx WIFI PD.pdf | 13.12.2019
MTBF report SmartFlex SR305191xx SWITCH WIFI PD.pdf | 13.12.2019
MTBF report SmartFlex SR305193xx RS232 RS485 WIFI PD.pdf | 13.12.2019
MTBF report SmartFlex SR305194xx RS232 RS485 ETH WIFI PD.pdf | 13.12.2019
