Life Cycle: EOL, FW maintenance only
Regions: APAC
LAN Router

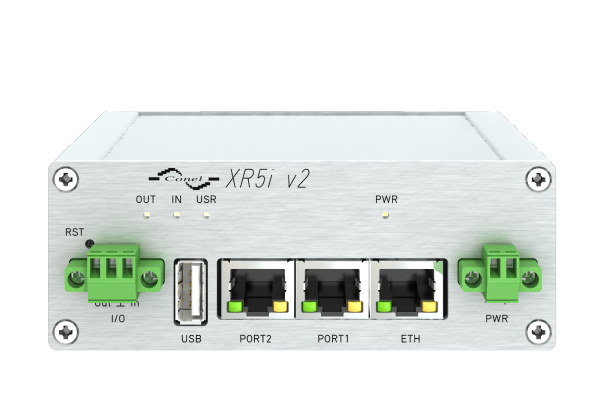

Industrial router XR5i v2 is used to a secure connection between two local area networks
(LANs) via two ETHERNET interfaces 10/100 and secured tunnel (IPSec, OpenVPN or L2TP).
The second option is to use this router for connecting two devices with different serial interface
(RS232, RS485, MBUS) alternatively I/O to the local network (LAN). In this configuration, the
communication device has an EHTERNET 10/100 and two interfaces that are equipped on
the user’s request.
XR5i v2 router is standardly equipped with one ETHERNET 10/100 port, one USB A (host)
port, one I/O port and two expansion ports. Users can select a second ETHERNET 10/100
port, serial interface RS232, RS485, RS422, MBUS, expansion port with SD card (SDH) or
other inputs/outputs (I/O). Industrial XR5i v2 router is supplied either in a plastic or metal
casing, based on the requirements of the customer.
