Extending Router Functionality

Document Content and Structure

This manual introduces various methods for enhancing your Advantech router's core functionality using both built-in firmware capabilities and custom development approaches. Each Advantech router platform offers a degree of extensibility, allowing users to customize and optimize its behavior for specific applications and use cases. The methods described in this document are generally structured by increasing complexity — from simpler scripting solutions to more advanced application and firmware development — and are grouped into the following main parts or chapters:

  1. Part Shell Scripting — Scripts are sequences of commands executed via the router's command-line interface (CLI). This method allows users to automate tasks, manage router operations, and extend functionality without modifying the core system firmware. Shell scripts are often the most flexible and immediately accessible way to add simple custom features, enabling tasks like remote management, handling network events, or controlling basic I/O ports (GPIO scripting).

  2. Part Python — Python support on Advantech routers, typically provided via installable Python Router Apps (Full and Lite versions), offers a powerful high-level programming language for more complex automation, data processing, and custom application logic. It facilitates interaction with router functionalities, development of sophisticated scripts, and management of third-party libraries (with pip in the Full Python RA), providing a significant step up in capability from basic shell scripting.

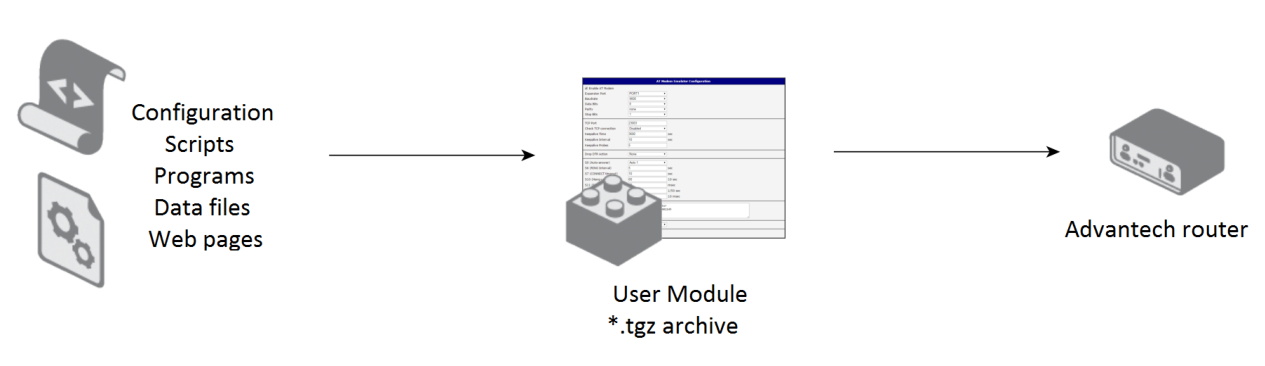

  3. Part Router Apps — Router Apps (formerly known as User Modules) are self-contained software packages. They can be developed in languages like C/C++, Python, or shell script and then installed on the router. Router Apps provide a structured and robust way to add significant new features or custom applications that are not available in the default firmware. They are ideal for users who need specific, well-integrated functionality, prefer a plug-and-play solution, or need to distribute custom features reliably.

  4. Part Router Peripherals — This part describes how to interact with and control the router's various hardware interfaces. It covers utilizing the General Purpose I/O (GPIO) interfaces for monitoring and control, managing devices connected to the USB interface (such as storage media or serial converters), and programming user-configurable LEDs for status indication. Examples and usage of command-line utilities like io and led for managing these peripherals are detailed. There are also available some bash and python script examples utilizing the peripherals.

  5. Part Constraints — Standard shell scripting and general Python usage (outside of Router Apps) are typically not supported on the S1 Router product line due to its enhanced security model which restricts direct shell access and script execution in the main OS. To achieve custom automation or extend functionality on S1 devices, developers must implement a custom Router App. This chapter details S1-specific programming considerations, development workflows, and security implications. (Part Router Apps provides general information on Router App development).

    This chapter also discusses important hardware-related constraints and considerations relevant to application development on embedded routers. Topics include managing non-volatile memory (flash storage) effectively, understanding RAM limitations, and considering CPU performance implications to ensure applications run reliably without overloading the router's resources.

  6. Part Custom Firmware — For highly advanced use cases requiring deep integration or modification of the router's operating system components, compiling custom firmware (or selected parts thereof) offers the most powerful solution. This method allows extensive control over software behavior and feature integration. It primarily involves understanding and potentially recompiling open-source components of the ICR-OS and requires significant knowledge of Linux, embedded systems, firmware development, cross-compilation toolchains, and thorough testing. Users should be aware of the significant implications regarding warranty and support when running custom firmware.

  7. Part Special System Options — This chapter describes advanced configuration parameters and system settings that are not typically accessible or configurable via the standard web interface. These options allow for fine-tuning of specific router behaviors, underlying system services, or enabling specialized features.

Each of these methods for extending router functionality offers a different level of control, complexity, and development effort. This manual aims to provide the necessary information for users to choose and implement the appropriate method to meet their specific requirements, whether they are beginners automating simple tasks or experienced developers building fully custom solutions.

Shell Scripting

Scripting Fundamentals

What Is a Script

Tips

For more information on writing shell scripts on Linux systems, see the Advanced Bash-Scripting Guide or the GNU Bash Reference Manual.

Advantech routers support scripting in a manner similar to general-purpose Linux operating systems. A script is essentially a text file containing a sequence of commands that the router's command-line interpreter (shell) can execute. Scripts allow you to automate tasks, manage router operations, and extend functionality without modifying the router's core firmware. They represent the simplest method for adding custom functions.

Supported Environments

Scripts on Advantech routers are written using a POSIX-compatible shell scripting language. The default shell invoked by /bin/sh is typically a version of ash (from BusyBox), but bash might also be available depending on the router model and firmware version. For most common scripting tasks, the differences between these shells are minimal when adhering to POSIX standards.

When writing scripts, you can use the standard set of Linux/Unix utilities provided by the BusyBox environment. To list available built-in commands, you can run busybox --list or press the Tab key twice in the shell. Additionally, Advantech provides several proprietary utilities specific to the router's hardware and functions (e.g., gsmsms, io, led, gsmat, status). Both the standard BusyBox commands and Advantech-specific utilities are documented in the Command Line Interface application note.

Writing and Executing a Script

File Format
Scripts should be saved as plain text files, typically with a .sh extension. It is crucial to use Unix-style line endings (LF only) rather than Windows-style line endings (CRLF), as the latter can cause execution errors on Linux. You can create scripts using a text editor on your PC and then transfer them to the router (e.g., via SCP or SFTP to directories like /root or /var/data), or create them directly on the router using built-in editors like vi, refer to Busybox vi tutorial, or the Here-Document method described below.

Shebang Line
Every script should begin with a shebang line, which specifies the interpreter that should execute the script. The standard shebang for POSIX-compatible scripts is #!/bin/sh.

Here-Document Method

The here-document syntax provides a convenient way to embed multi-line text (like a script's content) directly within another script or command. This is particularly useful when defining scripts within the router's GUI (see the Scripts in Router GUI section) or when creating script files dynamically from the console.

A here-document redirects lines following a command until a specific delimiter is encountered. The syntax is command << DELIMITER, followed by the input lines, and ending with DELIMITER on a line by itself.

Making the Script Executable
Before a script file can be run directly, it needs execute permissions. Use the chmod command to set these permissions. For example, to give the owner read, write, and execute permissions, and others read and execute permissions:
chmod 755 your_script.sh
Alternatively, more restrictive permissions like chmod 700 your_script.sh (owner only) might be appropriate.

Running the Script
To execute a script located in the current directory, use its relative path:
./your_script.sh
If the script is located elsewhere, provide the full path:
/path/to/your_script.sh
Alternatively, you can explicitly invoke the shell to run the script, which doesn't require execute permissions:
sh /path/to/your_script.sh

Redirecting Output and Error Streams

Shell scripts produce output on two main streams:

  • Standard Output (stdout, file descriptor 1): Used for normal program output.
  • Standard Error (stderr, file descriptor 2): Used for error messages and diagnostics.

By default, both streams are displayed on the console. When running scripts non-interactively or logging their activity, it is often desirable to capture this output into files.

Redirecting stdout
Use the > operator to redirect stdout to a file, overwriting the file if it exists:
./your_script.sh > /path/to/logfile.log

Use >> to append stdout to the file:
./your_script.sh >> /path/to/logfile.log

Redirecting stderr
Use 2> to redirect stderr to a file:
./your_script.sh 2> /path/to/errorfile.log
Use 2>> to append stderr.

Redirecting Both stdout and stderr to the Same File
To capture all output (both normal messages and errors) in a single file, redirect stderr to the same location as stdout using the notation 2>&1. This must appear after the stdout redirection.

Syntax
./your_script.sh > /path/to/logfile.log 2>&1 (Overwrite log file)
./your_script.sh >> /path/to/logfile.log 2>&1 (Append to log file)

Order Matters
The order of redirections is critical. 2>&1 redirects stderr to wherever stdout is currently pointing.

  • Correct (stdout and stderr go to file): command > file.log 2>&1
  • Incorrect (stderr still goes to console): command 2>&1 > file.log (stderr is redirected to the original stdout (console) before stdout is redirected to the file).

Discarding Output
To discard output, redirect it to the special null device /dev/null.

  • Discard stdout: command > /dev/null
  • Discard stderr: command 2> /dev/null
  • Discard both: command > /dev/null 2>&1

Basic Script Example

Below is an example script, intended to be saved in a file named test.sh , that checks network connectivity to a target host and appends a timestamped result to a log file.

To run this script, first ensure it has execute permissions, then execute it using its path:

chmod +x test.sh # Or chmod 755 test.sh
./test.sh

This executes the script once, performing a single connectivity check and appending the result to "$LOGFILE". Another common approach involves running the script's core logic within an infinite while true loop, typically used for continuous monitoring tasks. If the script needs to run periodically at specific intervals or at a precise time, the cron scheduling utility can be used (see Section Scheduling Scripts with cron).

Scripts in Router GUI

The router's web interface provides dedicated sections for defining custom scripts that run automatically in response to specific system events. Navigate to Configuration → Scripts, where you will find the following subpages:

  • Startup Script: Executed once every time the router powers on or after a factory reset. Ideal for initial setup, configuration checks, or launching background monitoring processes.
  • Up/Down IPv4 Scripts: Contains fields for an "Up" script (executed when the primary WAN IPv4 connection is established) and a "Down" script (executed when the primary WAN IPv4 connection is lost). These scripts receive connection-specific parameters (like interface name, IP address).
  • Up/Down IPv6 Scripts: Similar to IPv4 scripts, but triggered by the establishment ("Up") or loss ("Down") of the primary WAN IPv6 connection, receiving relevant IPv6 parameters.

For detailed instructions on parameters passed to Up/Down scripts and specific use cases, refer to the Configuration Manual for your router model.

Simple GUI Script Example

Creating and Running a Script File via GUI Script (Here-Document)

If you need a script defined in the GUI (like the Startup Script) to create a separate, potentially more complex script file and then execute it (possibly in the background), the Here-Document method (see the Here-Document Method section) is recommended, as shown below:

Variable Expansion in Here-Documents

Note the handling of variables (like $Num) when using the here-document method:

  • << EOF (Delimiter unquoted): Variables inside the here-document (e.g., $VAR) are expanded by the outer script (the one containing the cat command) before the content is written to the file. The value of the variable from the outer script's context is embedded.
  • << 'EOF' (Delimiter quoted): The content between 'EOF' delimiters is treated literally. Variables (e.g., $VAR) are written as the literal string \$VAR into the created file. This is generally the desired behavior if the variable is intended to be defined or used within the created script itself, as demonstrated in the example above.
  • Escaping the dollar sign (\\$VAR) when using the unquoted form (<< EOF) also prevents expansion by the outer script and achieves the same literal effect as quoting the delimiter, but using << 'EOF' is often considered clearer.

Scheduling Scripts with cron

Tips

For further cron scheduling examples and advanced syntax, see crontab.guru.

The cron daemon on ICR-OS allows you to run scripts at specified times or intervals. Jobs are defined in the system crontab file /etc/crontab. In this file, each line defines a job and follows the syntax below, where the first five fields specify the schedule:

<minute> <hour> <day-of-month> <month> <day-of-week> <user> <command>

Schedule Field Definitions

  • * (asterisk) — matches all valid values (e.g., every minute, every hour).
  • m-n (range) — matches any value between m and n (inclusive).
  • */s (step) — matches every sth value (e.g., */5 in the minute field means —every 5 minutes—).
  • v1,v2,... (list) — matches any of the comma-separated values.

Valid value ranges

  • Minute: 0–59
  • Hour: 0–23
  • Day of month: 1–31
  • Month: 1–12
  • Day of week: 0–7 (both 0 and 7 = Sunday)

Example Entries

  • Every minute: * * * * * root /path/to/script.sh
  • Every 5 minutes: */5 * * * * root /path/to/script.sh
  • Hourly at minute 0: 0 * * * * root /path/to/script.sh
  • Daily at 02:30 AM: 30 2 * * * root /path/to/script.sh
  • Monthly on the 1st at midnight: 0 0 1 * * root /path/to/script.sh
  • Weekly on Mondays at 03:00 AM: 0 3 * * 1 root /path/to/script.sh

Starting cron
After creating or updating /etc/crontab, start the daemon by service cron start or by crond &. To verify it's running you can use ps | grep cron.

Persistence Across Reboots
If /etc/crontab is reset on router reboot, ensure it is recreated in your Startup Script (Section Scripts in Router GUI). For example, the startup script may look like this:

Specific Implementation Notes and Examples

Handling Incoming SMS with a Custom Script

This section describes an option for handling incoming SMS messages received by the router using a custom script. This is achieved using a script located at /var/scripts/sms.

Warning

This file path (/var/scripts/sms) resides within the router's volatile RAM filesystem. This means the script file and its contents will be lost upon router reboot or power loss.

To ensure the custom SMS handling logic persists across reboots, the /var/scripts/sms script must be recreated each time the router starts. A common method is to use the router's Startup Script functionality. Add a code block similar to the following to the Startup Script configuration page (Configuration → Scripts → Startup Script) to automatically create the /var/scripts/sms file at boot:

When an SMS message is received and this feature is enabled (see info below), the system executes the /var/scripts/sms script, passing the following parameters:

  • $0 — The name of the script being executed (always sms), set automatically by the shell.
  • $1 — A flag indicating if the sender's phone number matches one of the numbers configured in the Phone Number x fields within the router's SMS settings GUI (1 for a match, 0 otherwise).
  • $2 — The sender's mobile phone number (MSISDN).
  • $3 ... $9 — The first seven words (space-separated tokens) extracted from the body of the received SMS message.

Within your /var/scripts/sms script, you can use these positional parameters ($1 through $9) to implement custom actions based on the sender and content of the SMS. This allows for creating custom SMS commands, for example, to query router status, toggle interfaces, or trigger specific application logic.

Tips

  • To enable the execution of the /var/scripts/sms script:

    • Cellular connection must be properly configured and enabled under Configuration → Mobile WAN.
    • The Enable remote control via SMS option must be checked under Configuration → Services → SMS.
    • Configuring specific Phone Number x entries on Services → SMS page is optional for enabling the script itself but affects the value of the $1 parameter.

  • Precedence Rule: If a Phone Number x is configured and matches the sender's number, and the received SMS message matches the format of one of the router's built-in SMS control commands (e.g., get ip, reboot), the built-in command will be executed instead of the custom /var/scripts/sms script. The custom script is bypassed in this scenario.

  • The /var/scripts/sms file generally does not require execute permissions.

  • If you need to determine the phone number (MSISDN) of the SIM card currently installed in the router, you can find it by sending an SMS message from the router using the Administration → Send SMS page to another phone.

Email Configuration Notes

To send emails from your router, you need to configure an SMTP server at Configuration → Services → SMTP. Ensure the email service is accessible and functional; you may need to properly configure the firewall and NAT settings to allow outgoing SMTP traffic.

You can send a test email from the console by issuing this command:

email -t address@domain.ext -s "Test from router" -m "Just testing email functionality."

Forward Incoming SMS to Email

Tips

This script relies on the custom SMS handling mechanism (Chapter Handling Incoming SMS with a Custom Script) and requires a correctly configured SMTP server (Configuration → Services → SMTP).

This example script uses the custom SMS handler (/var/scripts/sms) to automatically forward details of every incoming SMS message to a specified email address.

Startup Script
This script creates the /var/scripts/sms handler script in RAM at boot time.

How It Works

  • The Startup Script uses cat > ... << EOF to create the handler script /var/scripts/sms.
  • Inside the handler script:
    • EMAIL="john.doe@email.com": Defines the recipient email address.
    • The email utility is called to send the message.
    • -t "$EMAIL": Sets the recipient address.
    • -s "Received SMS from $2": Sets the subject line, including the sender's phone number ( $2).
    • -m "Authorized: $1, Text: $3 $4 $5 $6 $7 $8 $9": Sets the message body, including:
      • The authorization flag ( $1 ): 1 if the sender is in the router’s authorized list, 0 otherwise.
      • The sender’s phone number ( $2 ) is included in the subject.
      • The first seven words of the SMS text ( $3 through $9 ).
  • This script forwards details of every incoming SMS, regardless of sender or content, to the specified email address.

Warning

The standard SMS handler mechanism might only provide the first 7 words of the SMS text ( $3 through $9 ). Longer messages may be truncated in the forwarded email.

Send Email on PPP Connection Established

Tips

Make sure you have correctly configured the SMTP server in Configuration → Services → SMTP. Refer to Section Email Configuration Notes.

This script sends an informational email when a PPP (Point-to-Point Protocol) connection for the WAN interface is established. It can be related to IPv4 or IPv6 addressing, depending on where the script is placed in the router's GUI: either in the Up script IPv4 field or the Up script IPv6 field under Configuration → Scripts.

IPv4 Up Script
This script should be placed in the Up script IPv4 field.

How It Works

  • The script defines the destination email address in the `EMAIL` variable.
  • When the PPP interface establishes an IPv4 connection, the router executes this script, passing several parameters. This script uses:
    • `$1` — the name of the network interface (e.g., `ppp0`).
    • `$4` — the IP address assigned to the interface.
  • The `email` utility (typically located at `/usr/bin/email`) is called to send the notification:
    • `-t $EMAIL` — specifies the recipient's email address.
    • `-s "...\"` — sets the subject line of the email, including the interface name.
    • `-m "...\"` — sets the message body, including the interface name and assigned IP address passed as parameters.

An example of a received email based on the script above:

Subject: `Router has established IPv4 PPP connection on ppp0`

Content: `Interface: ppp0; IP address: 192.0.2.100`

Configure Mobile WAN via SMS

Tips

This script relies on the custom SMS handling mechanism described in Section “Handling Incoming SMS with a Custom Script.” Ensure that mechanism is active and properly configured.

This example demonstrates the implementation of a new SMS command, which can set the Network type and the Default SIM card for the mobile WAN configuration. The command which should be sent by SMS to the router has the following syntax:

PPP <NetworkType> <DefaultSIM>

Where:

  • <NetworkType> specifies the desired network technology. Valid options (depending on router model support) are:

    • AUTO: Switches Network Type of both SIM cards to automatic selection.
    • GPRS: Switches Network Type of both SIM cards to GPRS/EDGE.
    • UMTS: Switches Network Type of both SIM cards to UMTS/HSPA.
    • LTE: Switches Network Type of both SIM cards to LTE.
    • NR5G: Switches Network Type of both SIM cards to NR5G.

  • <DefaultSIM> specifies the default SIM card:

    • 1: sets SIM 1 as default.
    • 2: sets SIM 2 as default.

Example SMS: PPP LTE 1 (Sets network type to LTE for both SIMs and makes SIM 1 the default).

How It Works

  • The startup script (shown below) creates the /var/scripts/sms handler script in the router’s RAM filesystem using a here-document (cat > ... << EOF). This ensures the handler exists after a reboot.
  • The handler script (/var/scripts/sms) is executed by the system when an SMS is received.
  • It first checks if the sender is authorized by verifying if the first parameter $1 is equal to 1.
  • If authorized, it checks if the third word of the SMS ($3) is “PPP” (case-sensitive).
  • If the command word matches, the script processes the fourth word ($4, network type) and fifth word ($5, default SIM).
  • NetworkType: Based on the value of $4, a series of if/elif statements selects the appropriate sed command. This command modifies /etc/settings.ppp in place (-i), updating the PPP_NETTYPE= and PPP_NETTYPE2= lines with the corresponding numeric code (0 for AUTO, 1 for GPRS, 2 for UMTS, 3 for LTE, 8 for NR5G).
  • DefaultSIM: If $5 is “1” or “2”, another sed command updates the PPP_DEFAULT_SIM= and PPP_BACKUP_SIM= lines.
  • Reboot: After modifying the settings file, the script immediately executes reboot to apply the changes.

Send SNMP Trap on PPP Connection Established

Tips

Make sure you have correctly configured the SNMP manager in Configuration → Services → SNMP.

This script sends an SNMP trap to the configured SNMP manager when the PPP (Point-to-Point Protocol) connection for the WAN interface is established. It can be related to IPv4 or IPv6 addressing, depending on where the script is placed in the router's GUI: either in the Up script IPv4 field or the Up script IPv6 field under Configuration → Scripts.

IPv4 Up Script
This script should be placed in the Up script IPv4 field.

How It Works

  • The script defines the destination IP address of the SNMP manager in the SNMP_MANAGER variable.
  • When the PPP interface establishes an IPv4 connection, the router executes this script.
  • The snmptrap utility sends a generic SNMP trap message:
    • -g 3 specifies sending a standard generic trap of type linkUp (numeric value 3). This indicates that a network interface has come up.
    • $SNMP_MANAGER provides the IP address where the trap should be sent.
  • The configured SNMP manager receives this generic linkUp trap and can process it based on its rules. The trap itself, using only -g 3, does not contain specific information about which interface came up or its IP address. More complex snmptrap commands would be needed to include such details as variable bindings.

Switch Between Ethernet WAN and Mobile WAN

This script enables automatic switching between a primary Ethernet WAN connection (assumed to be eth1) and a backup Mobile WAN (PPP) connection. The PPP connection becomes active when ping tests to a defined IP address fail, indicating that the primary WAN connection is unavailable. When the primary WAN recovers, it switches back.

Caution

This script makes assumptions about network interfaces, configuration files (/etc/settings.eth), and requires careful adaptation to your specific network setup and router model. Directly manipulating routes and firewall rules requires caution.

Startup Script

How It Works

  • The script defines IP addresses for ping testing (WAN_PING), the primary WAN gateway (WAN_GATEWAY), and DNS (WAN_DNS). These likely need customization.
  • . /etc/settings.eth: Sources variables from the Ethernet settings file (e.g., $ETH2_IPADDR used later, assuming this relates to the primary WAN interface eth1). The exact contents and relevance of this file depend on the router configuration.
  • Initial Network Setup
    • Adds a static route for the WAN_PING target via the WAN_GATEWAY. This ensures ping tests go through the correct interface when the primary WAN is assumed to be up initially.
    • Adds iptables NAT rules for the eth1 interface. The PREROUTING rule uses -j napt, which is non-standard (standard Linux typically uses -j DNAT targets here if needed). The POSTROUTING rule enables standard MASQUERADE (Source NAT) for outgoing traffic on eth1, excluding ESP protocol packets (common for VPN passthrough). The effectiveness of -j napt depends on its implementation in the router's firmware.
  • Monitoring Loop:
    • LAST=1: Initializes the state variable assuming the connection is initially down (non-zero ping status), ensuring the script potentially triggers a switch on the first successful ping if the WAN is already up at boot.
    • while true: Enters an infinite loop for continuous monitoring.
    • ping -c 1 $WAN_PING: Sends one ping packet to the target address.
    • PING=$?: Captures the exit status of the ping command (0 for success, non-zero for failure).
    • if [ $PING != $LAST ]: Checks if the connectivity status has changed since the last check. This edge-triggered approach prevents actions from repeating every second if the state remains stable.
      • LAST=$PING: Updates the stored status for the next comparison.
      • If WAN came UP (PING = 0): Executes commands to switch back to the primary Ethernet WAN.
        • /etc/init.d/ppp stop: Stops the Mobile WAN (PPP) connection.
        • sleep 3: Pauses briefly to allow the PPP connection to terminate cleanly.
        • /sbin/route add default gw $WAN_GATEWAY: Adds the default route via the primary WAN gateway.
        • echo "nameserver $WAN_DNS" > /etc/resolv.conf: Sets the DNS server configuration to use the primary WAN's DNS.
        • /usr/sbin/conntrack -F: Flushes the connection tracking table to remove potentially stale entries related to the PPP connection.
        • /etc/scripts/ip-up - - - $ETH2_IPADDR: Executes the standard system IP-up script, potentially for the Ethernet interface (eth1). The parameters passed (eth1, $ETH2_IPADDR, etc.) are examples and depend on what the actual ip-up script expects.
      • If WAN went DOWN (PING != 0): Executes commands to switch to the backup Mobile WAN (PPP) connection.
        • /etc/scripts/ip-down - - - $ETH2_IPADDR: Executes the standard system IP-down script for the Ethernet interface.
        • /usr/sbin/conntrack -F: Flushes connection tracking.
        • /sbin/route del default gw $WAN_GATEWAY: Removes the default route via the primary WAN gateway.
        • /etc/init.d/ppp start: Starts the Mobile WAN (PPP) connection. The PPP daemon is typically configured to establish its own default route and DNS settings when it connects successfully.
    • sleep 1: Pauses for 1 second before the next ping check. Adjust this value to balance responsiveness and system load.

Executing AT Commands on Cellular Module

Tips

Advantech routers utilize a cellular (GSM/LTE/5G) module for mobile network connectivity, which is a primary function. While the router's firmware handles most module settings for reliable operation, direct interaction via AT commands is possible using specific methods for monitoring or advanced configuration.

This section describes methods for sending AT commands directly to the router's cellular module.

AT-SMS Protocol

The AT-SMS protocol refers to a private set of AT commands supported by the routers, allowing direct access to the cellular module via SMS. This can be used for tasks like sending SMS messages or querying module status and settings remotely. Configuration related to SMS handling via AT commands can be found in the GUI under Configuration → Services → SMS. You can also refer to the AT Commands (AT-SMS) Application Note for details on the specific command syntax.

The gsmat Command (Non-exclusive Access)

For monitoring the cellular module or executing basic AT commands without disrupting the router's primary mobile connection, the gsmat command is provided.

Usage
Connect to the router via SSH or Telnet and execute gsmat followed by the desired AT command string.

Notes on gsmat

  • This provides "Non-exclusive access", meaning the router's firmware continues managing the mobile connection simultaneously.
  • It is primarily intended for monitoring. Modifying critical module settings via gsmat is generally not recommended as it might conflict with the firmware's management.
  • Special characters within the AT command string, such as double quotes ("), dollar signs ($), and semicolons (;), must be properly escaped with backslashes (\) or the entire AT command string should be enclosed in single quotes (') to prevent interpretation by the shell.
Exclusive Access

For advanced diagnostics or configuration requiring full control over the module, "Exclusive access" can be used. This method temporarily stops the router's mobile network management, allowing direct, unimpeded communication with the module.

Caution

Exclusive access stops the router's primary mobile connectivity and is intended for expert users familiar with AT commands and potential consequences. Improper use can disrupt network service or require a router reboot. Advantech may not provide support for issues arising from the use of exclusive access.

Steps for Exclusive Access

  1. Connect to the router via SSH or Telnet.
  2. Stop the Mobile WAN service (PPP daemon):
service ppp stop
  1. Start the TCP/USB proxy (portd) to forward a TCP port to the module's serial device. The specific TTY device (/dev/ttyUSB8, /dev/ttyS2, /dev/ttyACM8, etc.) varies depending on the router model and cellular module. You can use dmesg to identify the correct port. Port 8000 is used in this example.
# Example using common port /dev/ttyUSB8 and TCP port 8000
portd -c /dev/ttyUSB8 -t 8000 &
  1. Connect to the specified TCP port (e.g., 8000) using a Telnet client or similar tool from your computer or another process on the router.
# Example connecting from the router itself
telnet localhost 8000
  1. Once connected via TCP, you can send AT commands directly to the module and view the responses.
  2. Exclusive Access (portd): When finished, stop the portd process (e.g., using killall portd) and restart the Mobile WAN service (service ppp start) to restore normal router operation.

How It Works Summary

  • Non-exclusive Access (gsmat): Sends a single AT command to the module via a firmware intermediary, allowing basic queries without disrupting the main connection. Requires careful shell escaping.
  • Exclusive Access (portd): Stops the router's mobile connection management, runs a proxy daemon (portd) to link the module's serial port directly to a TCP port, allowing raw, interactive AT command communication via a TCP client. Requires manual steps to stop/start services and identify the correct serial port.

Schedule an Automatic Daily Reboot

Tips

This script uses the cron scheduling daemon to schedule an automatic router reboot at a specific time each day. See Section on cron scheduling for more details on cron.

This example configures the router to automatically reboot daily at 23:55 (11:55 PM).

Startup Script
Place this script in the Startup Script section of the GUI. It adds the reboot job to the system's crontab when the router boots.

#!/bin/sh

echo "55 23 * * * root /sbin/reboot" > /etc/crontab
service cron start

How It Works

  • echo "55 23 * * * root /sbin/reboot" > /etc/crontab: This command overwrites the main system crontab file (/etc/crontab).
    • 55 23 * * *: Defines the schedule: 55th minute, 23rd hour (11:55 PM), every day, month, and day of the week.
    • root: Specifies the user account under which the command should run.
    • /sbin/reboot: The command to execute.

Caution

Overwriting /etc/crontab directly is generally discouraged as it removes any other system jobs. A safer approach is to add jobs to user-specific crontabs (e.g., in /etc/crontabs/root) or use a drop-in directory like /etc/cron.d/ if supported by the router's cron implementation.

  • service cron start: Attempts to start or restart the cron daemon using the service utility. This is necessary for cron to recognize the new schedule in the crontab file. The exact command to manage the cron service might vary (crond, busybox crond, etc.).
  • Once active, the cron daemon will execute /sbin/reboot daily at 23:55.

Voltage Drop SMS Alert

Tips

  • This script monitors the router's supply voltage and sends an SMS alert if the voltage drops below a specified threshold.
  • This functionality is only supported by router models capable of measuring supply voltage (Check GUI: Status → System Information → Supply Voltage).
  • It uses the router's proprietary utilities (status, led, gsmsms) and should be placed in the Startup Script to run automatically after boot.
  • Adjust the voltage threshold (Umin) and recipient phone number (Num) variables as needed.

This example demonstrates how to receive an SMS notification when the supply voltage falls below a specific level.

Startup Script
Place this script in the Startup Script section of the GUI.

How It Works

  • The Startup Script first creates a directory (/var/voltaged) to hold the monitoring daemon script.
  • It defines the minimum voltage threshold (Umin) and the recipient phone number (Num).
  • A here-document is used to write the actual monitoring logic into the /var/voltaged/voltaged file.
  • Inside the monitoring script (voltaged):
    • An infinite loop (while true) runs continuously.
    • status sys | awk '/^Supply Voltage/ { print $4 }': Retrieves the system status and uses awk to extract the voltage value (the 4th field on the relevant line).
    • A basic check ensures a voltage value was actually retrieved.
    • echo "\$current_voltage \$UMIN_DAEMON" | awk '\{print ($1 < $2)\}': Performs a floating-point comparison using awk to check if the current voltage is less than the threshold. awk prints 1 if true, 0 if false.
    • If Voltage is Low (is_low is 1):
      • It checks if an alert has already been sent (alert_sent is 0).
      • If no alert was sent, it logs the low voltage event, turns the USR LED on (led on), sends an SMS using the sms command, and sets alert_sent to 1 to prevent repeated SMS for the same low-voltage event.
    • If Voltage is OK (is_low is 0):
      • It checks if an alert was previously sent (alert_sent is 1).
      • If so, it logs the recovery, turns the USR LED off (led off), and resets alert_sent to 0, allowing a new alert if the voltage drops again later.
    • sleep 5: The script pauses for 5 seconds before the next voltage check.
  • The Startup Script makes the daemon script executable (chmod +x).
  • It includes a sleep 60 to wait for the system (especially the Mobile WAN connection needed for SMS) to potentially initialize before starting the monitoring.
  • Finally, it launches the voltaged script in the background (&).

Python

Python on Advantech Routers

This chapter describes how to install and use Python on Advantech routers by leveraging Python Router Apps (RAs). Python extends the router's capabilities, enabling custom scripting, automation, data processing, and more.

Introduction to Python Support

Python is a versatile and powerful high-level programming language known for its readability and extensive libraries. On Advantech routers, Python support is provided through installable Router Apps, transforming your router into a more flexible and programmable device. This allows for:

  • Automation of router management tasks.
  • Custom data collection and analysis directly on the edge.
  • Development of IoT solutions and integrations.
  • Enhanced network monitoring and diagnostics.

Two versions of the Python Router App are available to cater to different needs and resource constraints, as detailed in the next section.

Choosing Your Python Router App

Advantech offers two distinct Python Router Apps. Understanding their differences is key to selecting the appropriate one for your requirements.

Python 3 Router App (Full Version)

The Python 3 Router App delivers a full-featured Python 3 environment, empowering your router with advanced development tools. This version includes:

  • pip: The Python package installer, allowing you to easily install and manage third-party libraries from the Python Package Index (PyPI).
  • Native hashlib: Provides faster cryptographic operations as it utilizes underlying C libraries, beneficial for performance-sensitive tasks involving hashing.
  • Full UNICODE support: Essential for applications dealing with international character sets and diverse text data.
  • venv: The standard tool for creating lightweight, isolated virtual environments, allowing you to manage dependencies for different projects separately.

This version transforms the router into a powerful platform suitable for complex network automation, data analysis, and sophisticated IoT solutions. It is ideal for developers who need a robust and flexible Python environment and where router resources (CPU, RAM, storage) are sufficient.

Python 3 Lite Router App

The Python 3 Lite Router App provides a lightweight Python 3 runtime, optimized for routers with limited resources or for scenarios where a minimal footprint is critical. Key features:

  • Core Python functionality: Retains the essential Python 3 features for scripting and automation.
  • No pip: This version does not include the pip package installer. Third-party libraries must be manually managed if needed, or pure-Python libraries can be bundled with your scripts.
  • Limited UNICODE support: UNICODE support might be limited compared to the full version, which could be a consideration for applications processing diverse text.
  • Pure-Python hashlib: Uses a pure-Python implementation of hashlib. While fully functional, it may be slower for intensive cryptographic operations compared to the native version. This ensures compatibility and reduces dependencies in constrained environments.

The Lite version is best suited for simpler tasks such as log parsing, basic device monitoring, or straightforward automation scripts where minimal system impact and resource usage are paramount.

Comparison Summary

The table below summarizes the key differences between the two Python Router Apps:

FeaturePython 3 Router AppPython 3 Lite Router App
Python VersionPython 3.xPython 3.x
pipIncludedNot Included
hashlibNative (faster)Pure-Python (compatible)
UNICODE SupportFullLimited
venvIncludedNot Included
Resource UsageHigherLower
Ideal Use CaseComplex tasks, developmentSimple tasks, resource-constrained

Comparison of Python Router Apps

Installing Python Router Apps

Python is installed on Advantech routers by installing the appropriate Python Router App package.

Prerequisites

Before installing a Python Router App, ensure:

  • Sufficient Storage Space: Python and its libraries can consume significant storage. Available disk space can be checked in the Router App GUI.
  • Internet Connectivity (Optional): If you plan to use pip (with the full Python 3 Router App) to download packages, the router will need internet access. The Router App package itself might be obtained via download or provided by Advantech.
Installation Procedure

To install Python 3 or Python 3 Lite, follow the instructions in the Configuration Manual, section Customization → Router Apps.

Verifying the Installation

Once installed, you can verify that Python is available and running correctly:

  1. Access the router's command-line interface (CLI).
  2. Type the command to check the Python version:
python3 --version

This should output the installed Python version, e.g., Python 3.x.y.

  1. (Optional, for Full Python 3 RA) Test pip:
pip3 --version
  1. (Optional) Try to import a standard module like hashlib within Python:
python3 -c "import hashlib; print(hashlib)"

This should print information about the hashlib module.

If these commands execute without error, Python is ready to use.

Accessing and Running Python

You can interact with Python on the router in two primary ways: through the interactive Python shell or by executing Python scripts.

Interactive Python Shell (REPL)

The Read-Eval-Print Loop (REPL) allows you to type Python code directly and see immediate results. This is useful for testing small snippets of code or exploring Python features.

  1. Log in to the router's CLI.
  2. Start the Python 3 interpreter: python3

You should see the Python prompt (>>>).

  1. You can now type Python commands:
  1. To exit the Python REPL, type:
>>> exit()

Or press Ctrl-D.

Executing Python Scripts

For more complex tasks, you will write Python code into .py files and execute them as scripts.

Creating/Transferring Scripts:

  • Using vi: You can create or edit scripts directly on the router using the vi text editor:
    vi myscript.py, refer to Busybox vi tutorial.
  • Transferring Scripts: You can write scripts on your development computer and transfer them to the router using scp (Secure Copy Protocol) or by mounting a USB drive. Example using scp from your computer to the router's /tmp directory: scp myscript.py admin@ROUTER_IP_ADDRESS:/tmp/. Note that the /tmp directory is deleted upon router restart.

Script Structure and Execution:

  1. Shebang Line (Recommended): Start your script with a "shebang" line to specify the interpreter. This allows the script to be executed directly.
#!/usr/bin/python3

# Your Python code follows
print("This is my Python script.")
  1. Make the script executable:
chmod +x /path/to/your/myscript.py
  1. Run the script:
    If you used a shebang line and made the script executable:

You can always run it by explicitly calling the Python interpreter:

python3 /path/to/your/myscript.py
Passing Command-Line Arguments

You can pass arguments to your Python scripts from the command line. These are accessible within Python via the sys.argv list. Here's an example script myscript_args.py:

To run this script with arguments, execute:

python3 myscript_args.py arg1 "another argument"

The output of this script will be:

Script name: myscript_args.py
First argument: arg1
Second argument: another argument
Introduction to Python Scripting

This section provides a very brief overview of Python concepts particularly relevant for scripting. It is not a comprehensive Python tutorial. For in-depth learning, refer to the official Python documentation at https://docs.python.org/3/.

Core Concepts:

  • Variables and Data Types:
    • Strings: my_string = "hello"
    • Numbers: Integers (count = 10), Floats (pi = 3.14)
    • Lists: Ordered collections, mutable. my_list = [1, "two", 3.0]
    • Dictionaries: Key-value pairs, unordered, mutable.
      my_dict = {"name": "router", "ip": "192.168.1.1"}
    • Booleans: True, False
  • Control Flow:
    • Note the code block definition by indentation (usually 4 spaces).
    • if/elif/else: Conditional execution.
  • for loops: Iterate over sequences.
for item in my_list:
    print(item)
  • while loops: Repeat as long as a condition is true.
count = 0
while count < 5:
    print(count)
    count += 1
  • Functions: Define reusable blocks of code (note the indentation).
def greet(name):
    print(f"Hello, {name}!")

greet("Advantech User")
  • Importing Modules: Use Python's extensive standard library or third-party modules.

Standard Library Modules for Scripting:

Here are examples of some standard library modules preinstalled with Python on the router:

  • os: Interacting with the operating system (e.g., os.system(), os.environ, file system operations).
  • subprocess: Recommended for running external shell commands and managing their input/output, especially in BusyBox environments (e.g., subprocess.run(), subprocess.check_output()).
  • sys: Access to system-specific parameters and functions, like command-line arguments (sys.argv), exit codes (sys.exit()).
  • re: Regular expressions for powerful text pattern matching and manipulation (e.g., parsing log files or command output).
  • datetime: For working with dates and times (e.g., timestamping logs).
  • socket: For low-level network operations if needed.
  • json: For parsing and generating JSON data, common in APIs and configurations.

Non-standard Library Modules for Scripting:

You can install additional modules using pip3, refer to the section on using pip to install third-party libraries.

Advanced Features

The full Python 3 Router App includes additional tools that enhance development capabilities. These features are not available in the Python 3 Lite Router App.

Using pip to Install Third-Party Libraries

pip, or pip3 for Python3, is the standard package installer for Python. It allows you to download and install packages from the Python Package Index (PyPI) and other repositories.

Basic Usage:

  • Install a package:
pip3 install package_name

For example, to install the popular requests library for making HTTP requests:

pip3 install requests
  • Install a specific version of a package:
pip3 install package_name==1.2.3
  • Upgrade an installed package:
pip3 install --upgrade package_name
  • List installed packages:
pip3 list
  • Show information about an installed package:
pip3 show package_name
  • Uninstall a package:
pip3 uninstall package_name

Considerations:

  • Storage Space: Third-party libraries can consume significant storage space. Be mindful of the router's limited resources. Install only necessary packages.
  • Internet Connectivity: The router needs internet access to download packages from PyPI.
  • Compilation: Some Python packages may require compilation of C/C++ extensions during installation. The router environment may lack the necessary compilers or development headers. Prioritize packages that are pure Python or provide pre-compiled "wheels" for ARM Linux (or the router's architecture).
  • Permissions: You typically need root or administrative privileges to install packages globally.

Using venv for Isolated Virtual Environments

venv is a module used to create isolated Python virtual environments. Each virtual environment has its own Python binary (or a link to it) and can have its own independent set of installed Python packages in its site directories.

Benefits:

  • Dependency Management: Avoids conflicts between projects that require different versions of the same library.
  • Clean Global Environment: Keeps your global Python site-packages directory clean.
  • Reproducibility: Makes it easier to replicate a project's environment.

Basic Usage:

  1. Create a virtual environment:
    Navigate to your project directory (or where you want to create the environment) and run:
python3 -m venv my_project_env

This will create a directory named my_project_env (or your chosen name) containing the virtual environment.

  1. Activate the virtual environment:
    Before you can use the virtual environment, you need to activate it. The activation script is located in the environment's bin directory.
source my_project_env/bin/activate

Your shell prompt will usually change to indicate that the virtual environment is active (e.g., (my_project_env) user@router:~$).

  1. Install packages within the environment:
    Once activated, any pip3 install commands will install packages into the active virtual environment, not globally.
(my_project_env) $ pip3 install requests

  1. Run Python scripts:
    Python scripts run while the environment is active will use the environment's Python interpreter and its installed packages.

  2. Deactivate the virtual environment:
    When you are finished working in the virtual environment, you can deactivate it:

(my_project_env) $ deactivate

Your shell prompt will return to normal.

  1. Delete the virtual environment:
    To completely delete the whole environment, just delete its directory:
rm -rf my_project_env

Considerations on Routers:

  • Storage: Each virtual environment duplicates some files or creates symlinks, and stores its own packages, consuming additional storage space. Use judiciously on resource-constrained routers.
  • Activation: Remember to activate the correct environment before running scripts that depend on its specific packages. For automated scripts (e.g., cron jobs), you'll need to source the activate script or call the Python interpreter from within the venv directly (e.g., /path/to/my_project_env/bin/python your_script.py).

Router-Specific Python Development Notes

Developing Python scripts for Advantech routers requires consideration of their specific operating environment, which is typically based on BusyBox and has resource constraints. Here are key points to keep in mind:

  • Limited Shell Commands and BusyBox Environment: BusyBox provides a compact set of Unix utilities that often have fewer options and may exhibit slightly different behavior compared to their full GNU counterparts found on standard Linux distributions. Python scripts calling external commands should account for these differences.

  • Robust Command Execution with subprocess: Python's subprocess module is highly recommended for running external shell commands. It offers superior control over input/output streams, error handling, and overall execution flow compared to older methods like os.system(). Using subprocess can also enhance script portability when dealing with variations in command behavior or availability.

  • On-Router Text Editing: The primary text editor available directly on the router is usually vi (or a similar minimalist editor like nano on some builds). Familiarity with vi is beneficial for quick on-router script modifications. A helpful BusyBox vi tutorial can be found online.

  • File System Paths and Volatility: Be mindful of the router's file system structure. Temporary files should typically be written to /tmp, which is often a RAM disk (tmpfs) and its contents are cleared on reboot. Locations for persistent storage depend on the router model and configuration (e.g., /opt, /mnt/user, or an attached USB drive).

  • Permissions and Privileges: Standard Linux file permissions apply. Your Python scripts will need execute permissions (chmod +x script.py) to be run directly. Accessing certain system files, network interfaces, or performing privileged operations (like using raw sockets or modifying system configuration) may require root privileges. Run scripts with the minimum necessary privileges.

  • Resource Constraints (CPU, RAM, Storage): Embedded routers inherently have limited CPU power, RAM, and persistent storage compared to desktop systems. Write efficient Python code. Avoid memory-intensive operations, very large libraries, or frequent disk writes if possible, especially when using the "Lite" version of the Python Router App, which has a smaller footprint. Monitor resource usage during development and testing.

  • Router-Specific SDK Python Module (um): For interacting with router-specific hardware and software features—such as accessing GPIOs, reading system parameters (e.g., cellular signal strength, device temperature), managing expansion port configurations, or generating HTML content for the router's web interface—Advantech provides a specialized Python module named um. This module is included as part of the Advantech SDK. Always consult the SDK documentation for your target platform (refer to the section on SDK) for details on the availability, specific features, and usage of the um module.

  • Cross-Compilation for Python Packages with C Extensions: If your Python project requires packages that include C extensions (which are common for performance-critical libraries or those interfacing with C libraries), pip running on the router might be unable to build them directly if a C compiler and the necessary development headers are not available on the router (which is typical). In such cases, you may need to:

    • Cross-compile the package on a development machine using a toolchain that targets the router's architecture (e.g., ARM). This involves setting up a cross-compilation environment for Python extensions.
    • Find pre-compiled wheels (.whl files) for the package that are specifically built for the router's architecture and Python version.
    • Consider if a pure-Python alternative to the package exists.

    This is an advanced topic and generally falls outside simple scripting.

By leveraging Python's strengths in scripting and its subprocess module, you can effectively overcome many of the limitations of a basic BusyBox shell and create powerful automation and management tools for your Advantech router.

Practical Python Script Examples

The following examples demonstrate simple use cases for Python on your Advantech router. These scripts assume they are run from the router's CLI.

Gathering System Information

This script uses the subprocess module to run BusyBox commands and display system information. This script pings a list of IP addresses to check their reachability. Save the code below into a file named system_info.py.

How It Works

This script gathers and displays basic system information from an Advantech router.

  • The script begins with a shebang #!/usr/bin/python3, indicating it should be executed using the Python 3 interpreter located at /usr/bin/python3.

  • It imports the subprocess module: This standard Python module is used to run external shell commands, specifically to execute the free command.

  • The script then proceeds sequentially to gather and print different pieces of system information, each within its own section. For error handling, each section uses a try...except Exception as e: block, which catches any general error that occurs and prints a user-friendly message.

  • System Uptime:

    • A header "--- System Uptime ---" is printed.
    • The script reads uptime information directly from the /proc/uptime file. This is a standard virtual file in Linux systems that provides uptime statistics without needing an external uptime command.
      • with open("/proc/uptime", "r") as f:: This opens the file in read mode ("r"). The with statement ensures the file is automatically closed even if errors occur.
      • f.readline().split(): Reads the first line from the file, splits this line into a list of strings (words), and takes the first element (``), which is the total system uptime in seconds.
      • float(...): Converts the uptime string to a floating-point number.
    • The total uptime in seconds is then converted into a more human-readable format of days, hours, minutes, and seconds using integer division (//) and modulo (%) operations.
    • The formatted uptime string is printed to the console.

  • Memory Usage:

    • A header "--- Memory Usage ---" is printed.
    • The subprocess.run() function is used to execute the external shell command free.
      • Command: "free" (displays amount of free and used memory in the system).
      • shell=True: Indicates that the command should be executed through the system's shell.
      • capture_output=True: Specifies that the standard output and standard error of the command should be captured.
      • text=True: Decodes the captured output as a text string.
      • check=True: If the command returns a non-zero exit status (indicating an error), a CalledProcessError exception is raised.
    • result.stdout.strip(): The captured standard output from the free command is printed after removing any leading or trailing whitespace.
    • A note "(Output is typically in kilobytes)" is appended, as this is a common default for the BusyBox version of free.

  • Disk Space:

    • A header "--- Disk Space ---" is printed.
    • Again, subprocess.run() is used, this time to execute the command df -k.
      • Command: "df -k" (reports file system disk space usage). The -k option ensures the output is in 1K-blocks (kilobytes), which is generally supported by BusyBox df and avoids issues with unsupported options like -h.
    • The standard output from df -k is printed.
    • A note "(Output is in 1K-blocks/kilobytes)" clarifies the units of the displayed sizes.

  • Hostname:

    • A header "--- Hostname ---" is printed.
    • The system's hostname is read directly from the /proc/sys/kernel/hostname file.
      • with open("/proc/sys/kernel/hostname", "r") as f:: Opens this virtual file for reading.
      • f.read().strip(): Reads the entire content of the file (which is the hostname) and removes any leading/trailing whitespace.
    • The retrieved hostname is printed to the console.

  • After each section's output (or error message), print() is called to produce a blank line, improving the readability of the overall output in the terminal.

Script Testing

Below is the console output, displaying the script's creation (using vi) and its testing.

Basic Network Reachability Test

This script pings a list of IP addresses to check their reachability. Save the code below into a file named network_test.py.

How It Works

This script checks the network reachability of one or more specified hosts by sending ICMP ECHO_REQUEST packets (commonly known as "pinging" them).

  • The script starts with a shebang #!/usr/bin/python3, which tells the system to use the python3 interpreter found in the user's environment PATH to execute the script.

  • It imports two standard Python modules:

    • subprocess: Used to create and manage child processes, specifically to run the external ping command.
    • sys: Provides access to system-specific parameters and functions, such as command-line arguments (sys.argv) and standard error stream (sys.stderr).

  • The ping_host(host_ip, count=1) Function:
    This function is responsible for pinging a single host and determining if it is reachable.

    • It takes two arguments:
      • host_ip: The IP address or hostname of the target to ping.
      • count=1: An optional argument specifying the number of ping packets to send. It defaults to 1.
    • A list named command is constructed, representing the ping command and its arguments:
      • ["ping", "-c", str(count), "-W", "1", host_ip]
      • "ping": The ping utility.
      • "-c", str(count): Sends a specific count of packets. (e.g., -c 1 sends one packet).
      • "-W", "1": Sets a timeout of 1 second to wait for each reply. This is crucial for BusyBox ping, which might behave differently from other ping versions regarding timeout for the whole operation vs. per-packet.
      • host_ip: The target host.
    • The try...except block handles potential errors during the ping process:
      • subprocess.Popen(command, stdout=subprocess.DEVNULL, stderr=subprocess.DEVNULL): This starts the ping command as a new process.
        • stdout=subprocess.DEVNULL and stderr=subprocess.DEVNULL: The standard output and standard error streams of the ping command are redirected to DEVNULL, meaning its output will not be displayed on the console. The script only cares about the success or failure (exit code).
      • process.communicate(): Waits for the ping command to complete.
      • return process.returncode == 0: Checks the exit code of the ping command. An exit code of 0 typically indicates success (host is reachable). The function returns True if successful, False otherwise.
      • except FileNotFoundError:: If the ping command itself is not found on the system, this error is caught. An error message is printed to sys.stderr, and the function returns False.
      • except Exception as e:: Catches any other exceptions that might occur during the ping attempt. An error message including the specific exception is printed to sys.stderr, and the function returns False.

  • Main Execution Block (if __name__ == "__main__":):
    This part of the script runs when the script is executed directly.

    • hosts_to_check = ["8.8.8.8", "1.1.1.1", "192.168.1.254"]: A default list of IP addresses/hostnames is defined. These are public DNS servers and a common local gateway IP.
    • Command-Line Argument Handling:
      • if len(sys.argv) > 1:: Checks if the script was run with any command-line arguments (the script name itself is sys.argv).
      • hosts_to_check = sys.argv[1:]: If arguments are provided, the default list is replaced with the list of arguments supplied by the user. For example, running python3 script.py google.com example.com would set hosts_to_check to ["google.com", "example.com"].
    • A header "--- Network Reachability Test ---" is printed.
    • The script then iterates through each host in the hosts_to_check list:
      • print(f"Pinging {host}... ", end=""): Prints a message indicating which host is currently being pinged. The end="" argument prevents a newline, so the "Reachable" or "Unreachable" status will appear on the same line.
      • if ping_host(host):: Calls the ping_host function with the current host.
      • Based on the boolean return value of ping_host(), it prints either "Reachable" or "Unreachable" to the console.

Script Testing

Below is the console output, displaying the script's creation (using vi) and its testing.

Simple Log File Monitoring

This script demonstrates reading a log file (e.g., /var/log/messages) and searching for specific keywords. Save the code below into a file named log_monitoring.py.

Caution

Continuously reading large log files can impact performance. This example is illustrative. For production use, consider more optimized log monitoring tools or techniques if available or develop a more efficient file tailing mechanism in Python.

How It Works

This script monitors a specified log file for new entries containing specific keywords and prints matching lines.

  • Setup:

    • The script starts with a shebang line (#!/usr/bin/python3), indicating it should be executed using the Python 3 interpreter.
    • It imports two standard Python modules:
      • sys: Provides access to system-specific parameters and functions, such as command-line arguments (sys.argv) and standard error stream (sys.stderr).
      • re: Provides support for regular expressions, which are used for matching patterns in text.
      • time: Provides time-related functions, used here to pause the script between checks.

  • The monitor_log(log_file_path, keywords, interval_seconds=5) Function:

    • This function monitors the specified log file for new lines containing any of the given keywords.
    • It prints the log file being monitored and the keywords.
    • It compiles the keywords into regular expression patterns for efficient matching.
    • It enters an infinite loop (while True) to continuously check the log file.
    • Inside the loop:
      • It attempts to open and read the log file. If successful, it processes each line:
        • It strips leading and trailing whitespace from the line.
        • It checks if the line is already in last_lines_seen (to avoid processing the same line multiple times).
        • For new lines, it checks if any of the keyword patterns match the line.
        • If a match is found, it prints the matching line's number and content.
      • If the log file is not found or another error occurs, it prints an error message and stops monitoring.
      • After processing the log file, it updates last_lines_seen with the current lines to keep track of seen lines.
      • It sleeps for the specified interval before checking the log file again.

  • Main Execution Block (if __name__ == "__main__":)

    • This part of the script runs when the script is executed directly.
    • It sets default values for the log file and search keywords.
    • It checks for command-line arguments to override the default log file and keywords.
    • It attempts to open the log file to verify accessibility.
    • It calls the monitor_log function to start monitoring the log file.

Script Testing

Below is the console output, displaying the script's creation (using vi) and its testing.

Router Apps

Getting Started with Router Apps

What are Router Apps

Router App (formerly known as User Module) refers to a software application specifically designed to run on Advantech routers. These applications allow users to extend the router's built-in functionality, customize its behavior, and add new features tailored to specific needs. This guide describes the structure, development process, and technical considerations necessary for creating your own Router Apps that integrate correctly with the Advantech router environment.

Advantech routers run a Linux-based operating system (ICR-OS). While using a Linux environment for Router App development is recommended for ease of use with toolchains and testing, it is not strictly required. Router Apps can be developed using languages such as C, C++, or Python, provided they can be compiled or executed within the router's environment. This guide focuses on the general structure, scripting conventions, configuration management, and system integration rules applicable across different development approaches.

Router Apps Programming Scheme
Router Apps Programming Scheme

Overview of Development Approaches

Router Apps can broadly be categorized into:

  • Compiled Applications: Typically written in C or C++, these applications are cross-compiled on a development machine to produce binaries that run directly on the router's processor. They offer maximum performance and low-level system access.
  • Scripted Applications: Often written in Python or shell scripts, these applications are interpreted at runtime on the router. They offer faster development cycles and ease of use for many tasks.

Refer to the section on SDK for information on available Software Development Kits (SDKs) and cross-compilers for C/C++ and Python for Python development.

General Development Workflow and Tools

The general workflow for developing a Router App involves:

  1. Setting up the development environment (SDK, toolchains).
  2. Writing the application code (C/C++, Python, scripts).
  3. Creating necessary control scripts (init, install, etc.) and configuration files.
  4. Packaging the application into a *.tgz archive.
  5. Uploading and testing the application on the target router.
  6. Debugging and iterating.

Recommended General Tools

  • Basic familiarity with the Linux command line and shell scripting is beneficial for creating installation and initialization scripts.
  • A text editor suitable for programming and script creation (ensuring Unix-style line endings, e.g., LF).
  • Tools for creating TAR archives and Gzip compression (standard on most Linux distributions, readily available for other operating systems).

Available Commands
Router Apps can leverage many standard Linux commands and utilities provided by the router's BusyBox-based environment. To explore available commands, connect to the router's console (via SSH or Telnet) and press the TAB key twice for shell completion suggestions, or run busybox --list. For help on a specific BusyBox command, you can often use <command> --help. For details on both standard and Advantech-specific commands, refer to the Command Line Interface Application Note.

Login Events in the System Log
To aid in debugging your scripts, you can add logging statements that write messages to the router's System Log (viewable in the web interface under Status → System Log). Use the logger utility for this purpose. Add a line like the following near the beginning of each script (e.g., install, uninstall, init, etc.):

/usr/bin/logger -t mymodule "DEBUG:  $0 $@"

Here:

  • -t mymodule sets the tag name for the log entry (typically the name of your module or application).
  • $0 expands to the script's name.
  • $@ expands to all arguments passed to the script.

This will log a message such as:

DEBUG: /etc/rc.d/init.d/myscript start verbose

Router App Structure

Directory Structures for Applications

Router Apps, once installed, primarily reside in the /opt/"" directory on the router, where "" is the name of your Router App (RA).

Recommended location for persistent runtime data generated by your app is /var/data/"" directory. This directory is usually cleaned up upon app uninstallation.

Internal Archive Structure

The schema below illustrates the typical internal structure of the RA directory structure.

All subdirectories and files within the top-level /opt/"" directory are optional, except for those necessary for the app's functionality and integration, e.g. init script if the app needs to start/stop/restart.

Information Files

These optional plain text files provide metadata about the Router App, used by the router's management interface.

depends
This file lists dependencies, specifying any other Router Apps required for this app to function correctly. List one Router App name per line. The name must match the directory name ("") of the dependency as it appears in its *.tgz archive.

Python
otherModuleName

description
This file contains a more detailed description of the Router App, written in several sentences. This description is not visible in the router GUI.

name
This file contains the full, human-readable name of the Router App. This name will be displayed in the router's web interface. It is recommended to use only the characters 'a'-'z', 'A'-'Z', '0'-'9', and space (' ') for the name. If this file is absent, the RA's directory name ("") will be used instead.

My Custom Router App

requires
This file specifies the minimum required version of the router's firmware compatible with this Router App. The version must follow the three-number format: MAJOR.MINOR.PATCH.

6.5.0

summary
This file contains a brief one-sentence summary of the Router App. This description is not visible in the router GUI.

version
This file contains the version information for the Router App, which will be displayed in the web interface. The recommended format is semantic versioning (MAJOR.MINOR.PATCH) followed by a date in YYYY-MM-DD format, as shown below. If this file is missing, the version of the Router App will not be displayed in the router's web interface.

1.0.0 (2015-07-15)

Configuration Files

defaults
This file must contain the default configuration parameters for the Router App. These parameters are used during the initial installation and when the router is reset to factory defaults (using the RST button).

The content of this file should be copied to the settings file by the init script during installation (specifically, when called with the defaults argument) to enable configuration backup functionality. If your Router App does not require configuration, this file is not needed.

Variables must be defined using the following format:
MOD_""_""=""

Here, MOD signifies Router App, making it distinguishable from the router's core configuration parameters. "" is the name of the Router App (matching the directory and archive name), and "" is the desired parameter name. It is recommended to use uppercase letters for both "" and variable_name.

MOD_MYMODULE_ENABLED=1
MOD_MYMODULE_PARAM1=0
MOD_MYMODULE_PARAM2=5
MOD_MYMODULE_PARAM3=20

settings
This file should not be included in the Router App's *.tgz archive. It should be created during the installation process by the init script (when called with the defaults parameter), see next paragraph. Typically, the init script copies the contents of the defaults file into the runtime settings file, enabling configuration backup.

When the router's configuration is backed up, the contents of the settings file are included in the resulting *.cfg file. This file also persists across Router App updates. When updating a Router App, the system backs up the existing settings file. The updated Router App will first attempt to use the restored settings file. It only refers back to the defaults file for parameters not found in the restored settings file (e.g., newly added parameters).

Control Scripts

All control scripts (such as init, install, uninstall, ip-up, etc., located in the etc/ directory of your Router App) must start with the shebang line #!/bin/sh. They should be written using POSIX-compliant shell syntax to ensure compatibility with the BusyBox ash shell environment typically found on Advantech routers.

Caution

Do not forget to set execute permissions for all your script files. This should be done in your development environment before packaging the Router App, or within the install script itself if appropriate for dynamically generated scripts. Use the command: chmod +x "".

init
This is the initialization script for the Router App. It is invoked by the system with different parameters depending on the context (e.g., router startup, Router App installation, update, removal). It can also be called manually with a specific parameter. If an init script is not present, no actions will be performed for the Router App during these events. The script accepts the following parameters:

  • start — Executed automatically at router startup and after the Router App is successfully installed. Use this to start daemons or perform necessary setup.
  • stop — Executed automatically before updating or uninstalling the Router App. Use this to gracefully stop daemons and perform cleanup.
  • restart — Not called automatically. Can be called manually to stop and then start the Router App.
  • status — Not called automatically. Can be called manually to check if the Router App's services are running. Should exit with 0 if running, non-zero otherwise.
  • defaults — Executed automatically after installation and when the router's RST button is pressed (factory reset). Its primary purpose is to copy the contents of the 'defaults' file into the runtime settings file, usually located at /opt/$MODNAME/etc/settings.

Tips

An example init script is shown below. This example simply prints messages into Syslog indicating the action being performed. Set the MOD_NAME variable in this script to match your Router App Name. Note the cp command in the defaults case, which copies default settings to the runtime settings file, enabling configuration backup. This source code can be found in the example1 of the SDK documentation (reref to the section on SDK).

install
This script is executed once, immediately after the Router App's files have been extracted and copied to the /opt/ directory during the installation process. Use this for initial setup tasks that only need to run once upon installation. See the section on Application Lifecycles for the sequence of script execution.

uninstall
This script is executed during the uninstallation process. It runs after the Router App has been stopped (via init stop) but just before its files are deleted from the /opt/ directory. Use this script to perform any necessary cleanup. See the section on Application Lifecycles for the script execution order.

ip-up
Executed when a WAN (IPv4) connection is established.
Parameters: "" "".
Example: /opt/mymodule/etc/ip-up 10.40.28.64 ppp0

ip6-up
Executed when a WAN (IPv6) connection is established.
Parameters: "" "".
Example: /opt/mymodule/etc/ip6-up fc00::a40:37 ppp0

ip-down
Executed when a WAN (IPv4) connection is lost.
Parameters: "" "".
Example: /opt/mymodule/etc/ip-down 10.40.28.64 ppp0

ip6-down
Executed when a WAN (IPv6) connection is lost.
Parameters: "" "".
Example: /opt/mymodule/etc/ip6-down fc00::a40:37 ppp0

report
This script is executed during the creation of the report file (from console or GUI). It has no parameters passed to the script.

Web Interface Files

Overview of Web Interface Integration

The /opt/""/www/ directory in your Router App package is key for web interface integration.
If a file named index.html or index.cgi (or similar standard index file) exists within this directory, a link to it will appear in the router's main web interface under the Customization -> Router Apps section. Clicking this link will access the Router App's web interface.

If the /www directory is absent, or if it does not contain a recognizable index file, no link will be shown in the main web interface. The contents of the /opt/""/www directory are mapped to the following URL:
http(s)://""/module/""
(where "" is your Router App's name).

Adding Static and Dynamic Content

  • Static Content: HTML, CSS, JavaScript files, and images can be placed directly into the /www directory.
  • Dynamic Content: CGI scripts (written in shell, Python, C/C++ compiled to executable, etc.) can be placed in /www. Ensure they are executable and produce valid HTTP headers and HTML content. The Python example in the section on developing scripted RAs with Python is one such case.

Web Interface Security

Regarding access control for the Router App's web interface, you have two options:

  1. Secured (Recommended): Protect the web interface using the router's existing user authentication system. To do this, create a file named .htpasswd inside the /opt/""/www/ directory. This file should be a symbolic link to the router's main password file, located at /etc/htpasswd. Use the following command within your install script or manually via SSH (execute inside /opt/""/www/):
ln -s /etc/htpasswd .htpasswd

This ensures that accessing the Router App's web interface requires the same username and password used to log into the main router interface.

  1. Unsecured: If no .htpasswd file (or a symbolic link named .htpasswd) exists in the /www directory, the web interface will be accessible to anyone who can reach the router's IP address, without requiring authentication. This option is strongly discouraged due to security risks.

Application Packaging

Router App Archive Format

To upload a Router App into an Advantech router, it must be packaged as a *.tgz archive file (a TAR archive compressed with Gzip). This archive must contain a single top-level directory, refer to Internal Archive Structure.

The name of this single top-level directory inside the archive must be identical to the base name of the *.tgz archive file itself (excluding the platform suffix and .tgz extension). This base name is restricted to a maximum of 24 characters and can only contain alphanumeric characters ('a'-'z', 'A'-'Z', '0'-'9') and the underscore ('_'). Using spaces or other special characters in the base name, or in any subdirectory or file names within the archive, is strongly discouraged.

Archiv name of a Router App has this syntax: ""."".tgz, e.g. mymodule.v4.tgz.

Creating a Router App Archive

It is recommended to use our SDK to compile the source code and build the Router App archive. Refer to the section on Building First Compiled App.

If you want to create the Router App archive manually, you can proceed as follows. Assume that your Router App files are organized within a directory named mymodule and, for demonstration purposes, have a minimal structure containing only the init file with the content from the section on Control Scripts. The source file structure would then look like this:

mymodule/             (RA root directory)
`-- etc/              (/etc folder)
    `-- init          (file with init script)

To create the archive, you can use the script below (named pack.sh).

This script has following syntax: pack.sh "" "". To pack mymodule Router App for platform v4, navigate to the parent directory of mymodule and execute these commands:

user@machine:~$ chmod +x pack.sh
user@machine:~$ ./pack.sh mymodule v4
Packing mymodule for platform v4 → mymodule.v4.tgz
Done.

It will create package with this content:

mymodule.v4.tgz
`-- mymodule.v4.tar
    `-- mymodule/
        `-- etc/
            `-- init

If you install this Router App in the router's GUI, you can see the following messages in the Syslog:

[notice] mymodule: DEBUG: /opt/mymodule/etc/init defaults
[notice] mymodule: DEBUG: /opt/mymodule/etc/init start
[notice] umupdate: Module mymodule added.
[notice] https: user 'root' added user module 'mymodule.v4.tgz'

Here, the two rows are just coming from the init file (script).

Application Lifecycles

Shell scripts executed during Router App management (install, uninstall, init) should be designed to complete reasonably quickly (ideally within a few seconds) to avoid delaying the overall system operation or causing timeouts in the web interface.

Router App Installation Sequence
Installation occurs when a new Router App *.tgz archive is uploaded via the web interface (Customization -> Router Apps). The process is as follows:

  1. User presses the Add or Update button and uploads the *.tgz archive.
  2. The system extracts the archive and copies the contents to /opt/mymodule directory.
  3. The install script is executed: /opt/mymodule/etc/install
  4. The init script is called to set defaults: /opt/mymodule/etc/init defaults (This should create the settings file from defaults).
  5. The init script is called to start the app: /opt/mymodule/etc/init start

Router App Update Sequence
Updating is triggered by uploading a *.tgz archive with the same name as an already installed Router App.

  1. User presses the Add or Update button and uploads the new *.tgz archive.
  2. The system identifies that an app with the same name exists.
  3. The init script of the currently installed (old) version is called to stop it:
    /opt/""/etc/init stop
  4. The system automatically backs up the existing runtime configuration file:
    /opt/""/etc/settings.
  5. The system deletes all files and subdirectories of the old version from /opt/"".
  6. The system extracts the contents of the new *.tgz archive to /opt/"".
  7. The install script of the new version is executed (if present): /opt/""/etc/install.
  8. The init script of the new version is called to apply its defaults (if present):
    /opt/""/etc/init defaults.
  9. The system automatically restores the backed-up settings file from step 4, overwriting the settings file created in step 8. This merge operation ensures that previously configured values are retained for existing parameters, and new parameters get their defaults.
  10. The init script of the new version is called to start the app (if present):
    /opt/""/etc/init start.

Router App Uninstallation Sequence
Uninstallation is triggered by pressing the Delete button next to a Router App in the web interface.

  1. User presses the Delete button for the target Router App.
  2. The init script is called to stop the app: /opt/mymodule/etc/init stop
  3. The uninstall script is executed: /opt/mymodule/etc/uninstall (Use this for any final cleanup).
  4. The entire Router App directory (/opt/mymodule) and its contents are removed from the router's filesystem.

Building Router Apps

This chapter outlines the essential tools and resources required for developing compiled Router Apps in C or C++ for Advantech routers. Proper setup of the development environment is crucial for successful cross-compilation and deployment.

Overview of Development Tools

In addition to general development tools (such as a text editor and basic command-line familiarity, as mentioned in the chapter on Getting Started with Router Apps), creating compiled C/C++ Router Apps specifically requires:

  • A cross-compiler toolchain tailored to the target Advantech router's architecture (e.g., ARMv7, AArch64). This toolchain allows you to compile code on your development machine (typically x86-64 Linux) that will run on the router.
  • Optionally, but highly recommended, an SDK (Software Development Kit) provided by Advantech. The SDK often simplifies development by providing pre-configured build systems, example applications, helper libraries (like the um module for Python, or C equivalents), and documentation specific to Advantech platforms.

Cross-Compiler Toolchains

For compiling Router Apps written in C or C++, you must use a cross-compiler toolchain that matches the architecture of your target router platform (e.g., v2i, v3, v4, v4i). Advantech provides pre-built toolchains suitable for common development host environments.

The Advantech toolchains repository conveniently provides both Debian packages (.deb) for Debian-based Linux systems (such as Ubuntu) and RPM packages (.rpm) for RPM-based Linux distributions (such as Fedora or CentOS), allowing for straightforward installation on a wide range of development host systems.

Toolchain ForRouter PlatformsDownload Link
C/C++ Applicationsv2i, v3, v4, v4ihttps://bitbucket.org/bbsmartworx/toolchains

Advantech Cross-Compiler Toolchains

Always refer to the README file or documentation included within the downloaded toolchain archive for the most up-to-date installation and usage instructions specific to that toolchain version and your development host operating system.

Example: Installing Toolchains on a Debian-based Linux System

The following commands illustrate a typical process for cloning the repository and installing these packages:

After installing the toolchain packages, the cross-compilers (e.g., armv7-linux-gnueabi-gcc, armv7-linux-gnueabi-g++, aarch64-linux-gnu-gcc, aarch64-linux-gnu-g++, etc.) are typically installed under the /opt/toolchain/ directory, for instance, in subdirectories like /opt/toolchain/gcc-icr-v3-armv7-linux-gnueabi/bin/ or /opt/toolchain/gcc-icr-v4-aarch64-linux-gnu/bin/.

SDK (Software Development Kit)

Advantech provides an SDK (ModulesSDK on Bitbucket) designed to facilitate Router App development for both C/C++ and Python. Utilizing the SDK is highly recommended as it often includes:

  • Example Router Apps demonstrating various functionalities and best practices.
  • Helper libraries or modules (e.g., for interacting with router hardware like GPIOs, LEDs, or for web interface integration).
  • Pre-configured Makefiles or build scripts that simplify the cross-compilation process for different router platforms.

Using the official SDK ensures better compatibility and access to platform-specific features.

Supported LanguagesRouter PlatformsSDK Download Link
C/C++ and Pythonv2i, v3, v4, v4ihttps://bitbucket.org/bbsmartworx/modulessdk

Advantech Router App SDK (ModulesSDK)

Consult the README file or other documentation included within the SDK for detailed instructions on its setup, structure, and usage.

Example: Cloning and Using the ModulesSDK

The following commands demonstrate cloning the ModulesSDK repository and typical steps for compiling libraries and example applications provided within it. Ensure that you have the appropriate cross-compiler toolchains (as described in the Cross-Compiler Toolchains section) installed and configured in your system's PATH before attempting to compile SDK examples.

The exact make targets and variables (like PLATFORM) will depend on the specific structure and Makefiles within the ModulesSDK. Always refer to the SDK's documentation for precise build instructions.

If compiled successfully, the Router App installation archives are created in the ModulesSDK/images folder.

Building Your First Compiled Application with the SDK

This section provides a step-by-step guide to creating a simple command-line utility, crc32sum, as a compiled Router App using C and the Advantech ModulesSDK. The crc32sum utility will calculate the CRC32 (Cyclic Redundancy Check) checksum of files stored on the router. CRC32 is an error-detecting code commonly used to verify data integrity. This utility can be used by administrators or other scripts on the router to:

  • Verify if a configuration file, firmware component, log file, or any other data file has been corrupted or unintentionally modified.
  • Confirm data transfer success by comparing its CRC32 checksum against the source file's checksum.
  • Be incorporated into shell scripts for automated integrity checks of critical files.

We will use the Advantech ModulesSDK for this example, as it is the recommended approach. The SDK simplifies the cross-compilation process and helps in building Router App installation packages (*.tgz) for various target router platforms. Ensure you have the ModulesSDK cloned and the necessary cross-compiler toolchains installed (refer to this chapter on Building Router Apps).

Step 1: Writing the C Program

The C program, which we will name crc32sum.c, will take a filename as a command-line argument and print its CRC32 checksum.

Source code for crc32sum.c:

Place following code into ModulesSDK/modules/crc32sum/source/crc32sum.c file.

Key features of crc32sum.c:

  • It includes <stdint.h> for fixed-width integer types like uint32_t.
  • The calculate_crc32 function implements a standard table-driven CRC32 algorithm, consistent with common CRC32/PKZIP variants.
  • It reads the input file byte by byte in binary mode ("rb").
  • The main function handles command-line arguments (expecting a single filename) and file operations, including basic error checking.
  • Output is formatted to print the 8-digit uppercase hexadecimal CRC32 value followed by a tab character and the filename, similar to utilities like md5sum.
Step 2: Creating the Router App Control Scripts and Metadata

This step involves preparing the necessary control scripts and metadata files within the etc/ directory of your Router App. For this crc32sum utility, which is a command-line tool and not a background daemon, an init script for starting/stopping a service is not required. Instead, install and uninstall scripts will manage a symbolic link to make the command globally accessible.

The install script:

This script creates a symbolic link in /usr/bin, allowing crc32sum to be run without specifying its full path after the Router App is installed.

The uninstall script:

This script removes the symbolic link created during installation when the Router App is uninstalled.

Important: After creating these install and uninstall scripts, ensure they are made executable using the chmod +x command (e.g., chmod +x install uninstall) on your development machine before building the app.

Optional metadata files in etc/ subdirectory:

  • name: A plain text file containing the human-readable name for display in the router's web interface. Example content:
CRC32 Sum Utility
  • version: A plain text file specifying the version of your Router App. Example content:
1.0.0 (2025-05-21)
Step 3: Preparing Makefiles for SDK Compilation

The Advantech ModulesSDK uses a Makefile-based build system. To integrate our crc32sum application:

  1. Create the module directory: If it doesn't exist, create a directory for your new module within the SDK, for example: ModulesSDK/modules/crc32sum/.
  2. Copy the main Makefile template: Copy the generic module Makefile from ModulesSDK/modules/template/Makefile to your new module's directory: ModulesSDK/modules/crc32sum/Makefile. This Makefile handles the overall process of building the module for different platforms and packaging it.
  3. Create the source Makefile: Create a new directory ModulesSDK/modules/crc32sum/source/. Inside this source/ directory, create another Makefile with the following content to define how your C code is compiled:

Content for ModulesSDK/modules/crc32sum/source/Makefile:

Resulting Directory Structure for the crc32sum Module within SDK

After these steps, the directory structure for your crc32sum module within the ModulesSDK should look like this:

Step 4: Building the Router App Package

Once the source code and Makefiles are in place within the ModulesSDK structure:

  • Navigate to the SDK's root directory:
user@machine:~$ cd /path/to/your/ModulesSDK/
  • Build for all modules:

Often, simply running make from the root of the SDK might build all modules for all default platforms if the main SDK Makefile is structured that way.

user@machine:~/ModulesSDK$ make

The SDK's build system will handle the cross-compilation using the appropriate toolchain and then package the application into a *.tgz archive. The resulting installation packages are typically placed in a directory like ModulesSDK/images/crc32sum/. For instance, you might find ModulesSDK/images/crc32sum/crc32sum.v4.tgz.

Step 5: Uploading and Testing

Upload the generated *.tgz archive file for the target platform (e.g., crc32sum.v4.tgz) to your Advantech router. This is typically done via the router's web interface, in the section Customization → Router Apps. After the Router App is installed by the system (which includes running your install script):

  • The utility should be available as the crc32sum command globally due to the symbolic link created in /usr/bin.
  • Test from the router's CLI:
    • Create a test file: echo "test data" > /tmp/testfile.txt
    • Run the utility: crc32sum /tmp/testfile.txt
    • Verify the output. For a file containing the exact string "test data" followed by a newline character (which echo typically adds), the CRC32 checksum should be 176BDC9D. The output will appear as: 176BDC9D /tmp/testfile.txt

This example provides a compact C utility whose core logic (CRC32 calculation) is a strong candidate for C implementation rather than shell scripting. Using the SDK streamlines the build and packaging process for different router platforms.

Core Programming for Compiled Applications

Libraries and Dependency Management for Compiled Apps

Caution

To ensure the continued proper functioning of your Router App after router firmware updates, adhere to the following recommendations regarding libraries and dependencies:

  • Avoid dynamic linking to libraries provided by the router's firmware, with the exception of the standard C library (glibc). Link other necessary libraries statically with your Router App whenever possible.
  • Do not rely on the presence or specific versions of other libraries in the router's filesystem (e.g., in /usr/lib), except for glibc.

The reason for these recommendations is that libraries included in the router's firmware (other than glibc, which maintains strong backward compatibility guarantees) may change, be updated, or even be removed between different firmware versions or across router models. Making your Router App independent of these system libraries (except for relying on a baseline glibc) is crucial for ensuring it remains compatible across firmware updates and different router platforms.

If you are developing your Router App in C or C++, you can dynamically link against the glibc library provided by the router (typically located in /lib or /usr/lib via symlinks).

Interfacing with Router System Services and APIs

Compiled applications can interact with the router's system services and hardware through several mechanisms:

  • Standard Linux System Calls: Direct invocation of system calls (e.g., open(), read(), write(), socket(), fork()) provides the most fundamental level of interaction with the Linux kernel and its services.
  • Shell Commands via system() or popen(): Executing shell commands using the system() C library function or managing command I/O via popen(). This approach should be used with caution due to potential security risks (e.g., command injection if external input is used to construct commands without proper sanitization) and performance overhead compared to direct API calls or system calls.
  • Inter-Process Communication (IPC): If your application needs to communicate with other daemons or processes running on the router, standard Linux IPC mechanisms such as pipes, FIFOs (named pipes), POSIX message queues, shared memory, or Unix domain sockets can be used.
  • Specific ioctl Calls for Hardware Access: For direct hardware manipulation (e.g., GPIOs, LEDs, serial ports, or other custom hardware), ioctl system calls on specific device files (e.g., /dev/gpiochip0, /dev/ttyS0) are often the method of choice. The specific ioctl commands, request codes, and data structures are hardware and driver-dependent. Detailed information on these low-level hardware APIs should be available in the Advantech SDK documentation or platform-specific hardware/driver guides. The SDK often provides wrapper functions or libraries to simplify these interactions. (Note: The ioctl command-line utility is not typically present in BusyBox by default, so interaction is via the C system call.)

The Advantech SDK, when available for your target platform and development language, typically provides helper functions, libraries, and example code to simplify access to router-specific functionalities and hardware, abstracting some of the lower-level details and promoting more portable code across Advantech platforms.

Debugging and Testing Compiled Applications

Effective debugging and testing are crucial for developing robust compiled applications on an embedded platform like an Advantech router:

  • System Log Integration: Utilize the logger command-line utility (if calling from shell scripts) or the syslog() C library functions (after openlog()) from within your C application to send diagnostic messages, status updates, and error reports to the router's system log. This is often the primary method for on-device debugging and monitoring. (Your console output confirms logger is available).
  • Debug Builds and Symbols: When cross-compiling, create a debug version of your application by including debugging symbols (typically using the -g compiler flag with GCC). While on-router interactive debugging tools like GDB might be limited or not present in standard firmware, these symbols are invaluable if you can perform remote debugging (e.g., with GDB server if available) or analyze core dumps generated by application crashes.
  • Resource-Aware Testing: Test your application thoroughly on the actual target router platform(s). Pay close attention to resource consumption (CPU utilization, RAM footprint, flash storage usage) under various operational conditions to ensure your app is efficient and does not destabilize the router.
  • SDK Examples and Documentation: If an SDK is provided by Advantech for your router model, review its example applications and documentation. These can serve as valuable references for best practices, API usage, build system configuration, and platform-specific considerations.
  • Incremental Development and Unit Testing: Develop and test components or features incrementally. For complex applications, start with basic functionality and add features step-by-step, testing at each stage. Where possible, write unit tests for individual functions or modules that can be run in your cross-compilation environment or on the target.
  • Robust Error Handling: Implement comprehensive error handling in your C code. Diligently check return values of all system calls and library functions. Log errors appropriately (e.g., to syslog) to aid in diagnostics.
  • Cross-Platform Considerations: If your Router App is intended to run on multiple Advantech router models or different firmware versions, test for compatibility and be mindful of potential differences in available libraries, kernel features, or hardware interfaces.

Developing Scripted Router Applications (Python)

Advantech routers support the development of Router Apps using Python, offering a high-level, rapidly developed alternative to compiled languages like C/C++ for many tasks. Python 3 is typically available on supported platforms via dedicated Python Router Apps (see Python for general Python installation and usage on the router). This chapter focuses on leveraging Python specifically for creating Router App packages.

Python Environment within a Router App

When a Python script runs as part of an installed Router App, it operates within the Python environment provided by the active Python Router App (Full or Lite version) on the device. This environment includes the Python 3 interpreter and its standard library.

For router-specific functionalities, such as accessing GPIOs, reading system parameters, or generating HTML content for integration with the router's web interface, Advantech provides a special Python module named um. This module is included as part of an SDK. Always consult the SDK documentation for your target platform (refer to the SDK section) for details on the availability and usage of the um module.

Advantages and Limitations of Python for Router Apps

Using Python for developing Router Apps presents several benefits and some considerations:

Advantages

  • Rapid Development: Python's concise syntax and high-level nature generally lead to faster development cycles compared to C/C++.
  • Ease of Use: Python is known for its readability and simpler learning curve, making it accessible for a wider range of developers.
  • Suitability for Specific Tasks: Excellent for web scripting (e.g., CGI scripts for custom web interface pages), automation tasks (e.g., scheduled jobs, event-driven actions), data processing (e.g., parsing logs, manipulating configuration), and network scripting.
  • Rich Standard Library: Python's extensive standard library provides many built-in modules for common tasks, reducing the need for external dependencies.
  • Third-Party Libraries (with Full Python RA): The Full Python Router App, with pip, allows access to a vast ecosystem of third-party libraries via PyPI, greatly extending capabilities (see the section on using pip to install third-party libraries).

Limitations

  • Resource Consumption: Python applications, being interpreted, can have higher CPU and memory overhead compared to equivalent applications compiled from C/C++. This is an important consideration for resource-constrained embedded routers.
  • Performance: For extremely time-critical operations or computationally intensive tasks (e.g., high-speed packet processing, complex cryptographic calculations), the performance of Python might be a bottleneck compared to C/C++.
  • Dependency Management (Lite Python RA): If using the Python Lite RA (which lacks pip), managing third-party dependencies requires manually bundling them with your Router App, which can be less convenient.
  • Startup Time: Python scripts might have a slightly longer startup time compared to compiled binaries.
Application Structure for Python Router Apps

Python applications packaged as Router Apps follow the same general directory structure and packaging conventions as compiled Router Apps, as described in the Router App Structure chapter. Key considerations for Python scripts include:

  • Executable Scripts and Daemons: Python scripts intended to be run as main executables or background daemons (started by the init script of your Router App) should typically be placed in the /bin directory within your Router App package (e.g., /opt/""/bin/myscript.py). These scripts should have a shebang line (e.g., #!/usr/bin/python3) and be made executable (chmod +x).
  • Custom Python Modules: If your application consists of multiple Python files or custom library modules, you can place them in the root directory of your Router App package (e.g., /opt/""/mymodule.py) or in a dedicated subdirectory (e.g., /opt/""/lib/). These modules can then be imported into your main scripts using standard Python import mechanisms (e.g., import mymodule or from lib import my_utility). Ensure the Python interpreter can find these modules (Python typically adds the script's own directory to sys.path).
  • CGI Scripts for Web Interface Integration: Python scripts designed as CGI (Common Gateway Interface) applications to extend the router's web GUI must be placed in the /www subdirectory of your Router App package (e.g., /opt/""/www/index.cgi).
    • These CGI scripts must have execute permissions.
    • They must start with a shebang line pointing to the Python interpreter (e.g., #!/usr/bin/python3).
    • The first line of output from a CGI script must be a valid HTTP header, typically Content-Type: text/html, followed by a blank line, before any HTML content is printed. The um module, if used, often handles this.
  • Control Scripts (init, install, uninstall): These scripts, located in /etc, are standard shell scripts (#!/bin/sh) and are used to manage the lifecycle of your Python Router App (e.g., starting/stopping a Python daemon). They are not Python scripts themselves.
Example: Python CGI for System Status Display

The following is an example (available in SDK as example7) of a Python CGI script, index.cgi, intended to be part of a Router App. It demonstrates how to use the (hypothetical or SDK-provided) um module to retrieve and display various system status information (like GPIO states, supply voltage, and internal temperature) on a custom web page within the router's web interface. This script would typically reside in /opt/""/www/index.cgi within your Router App package.

This example script is illustrative and demonstrates:

  • Importing the router-specific um module (if available).
  • Using functions from the um module (e.g., um.html_page_begin(), um.gpio_get_bin0()) to generate HTML content for display in the router's web interface and to retrieve hardware status information.
  • The interpretation of values returned by hardware-access functions (e.g., whether 0 means ON or OFF for a binary input) is dependent on the specific implementation of the um module and the underlying hardware of the router model. This should be clearly documented by the SDK or module provider.
  • Basic error handling using try...except blocks for robustness, especially when dealing with hardware interactions or external modules.
  • The necessity of encoding Python strings to bytes (e.g., using msg.encode('utf-8')) if the um module's HTML functions expect byte strings.

The um module plays a crucial role in abstracting the low-level hardware and web interface details, making it simpler to access these features from Python scripts within a Router App.

Managing Dependencies for Python Router Apps

When your Python Router App relies on libraries:

  • Standard Libraries: If your app uses only Python standard libraries, ensure they are part of the Python environment provided by the installed Python RA (Full or Lite) on the router. Most common standard libraries are usually included.
  • Third-Party Libraries (Not Pre-installed):
    • Full Python RA with pip3: If the Full Python RA is installed, you can potentially use pip3 to install required third-party libraries from PyPI directly onto the router as a post-installation step (e.g., triggered from your Router App's install or init script, or manually by an administrator). This requires internet access and careful consideration of storage space and compilation needs.
    • Bundling Libraries: For both Full and Lite RAs (especially mandatory for Lite), if libraries are not installable via pip or if you want a self-contained app, you must bundle the necessary pure-Python third-party libraries directly within your Router App package.
      • Place the library's source code (e.g., the package directory) into a subdirectory within your Router App (e.g., /opt/""/vendor/).
      • In your Python scripts, you may need to adjust sys.path at runtime to include this vendor directory so Python can find the bundled modules:
  • Alternatively, if your app structure allows, relative imports might be usable.
  • C Extensions: Libraries with C extensions that require compilation are challenging to bundle directly without pre-compiling them for the target router architecture.
  • Virtual Environments (venv): While venv is excellent for development, its direct usage and deployment within a Router App package on the router itself are generally less common due to increased storage footprint and complexity in managing activation for automated scripts. If used, the path to the virtual environment's interpreter must be explicitly invoked.

Deployment of Python Router Apps

Deployment of a Python-based Router App follows the same procedure as for any other Router App:

  1. Package Contents: Package all necessary Python scripts (.py), custom modules, bundled third-party libraries (if any), CGI scripts, and any other required files (e.g., configuration templates, data files) into the *.tgz archive.
  2. Directory Structure: Adhere to the standard Router App directory structure (e.g., bin/ for executables, www/ for CGI, etc/ for control scripts, custom module directories).
  3. Permissions: Ensure all scripts that need to be executed (main scripts in bin/, CGI scripts in www/) have execute permissions set (chmod +x) before packaging. The control scripts in etc/ (init, install, uninstall) must also be executable shell scripts.
  4. Installation: Upload the *.tgz package to the router via the web interface (Customization → Router Apps or similar menu). The router's system will then handle the extraction and setup, including running your install script.

Refer to Router App Packaging and Lifecycle for general Router App packaging and lifecycle details.

Summary and Best Practices

Key Development Constraints Recap

  • Storage space in the /opt directory, where Router Apps are installed, is limited. Refer to the table for partition sizes specific to each platform. Plan your application size accordingly.
  • On platforms with a 128 KiB MRAM partition for /var/data (e.g., standard v3), limit your Router App's usage of this space to approximately 64 KiB to ensure sufficient space for the operating system. See the section on non-volatile storage for details.
  • Note that the /opt directory persists across router firmware updates, preserving installed Router Apps. Data stored in /var/data also generally persists.
  • Router Apps run within a BusyBox environment, which provides a subset of standard Linux commands and shell features. Ensure your scripts use POSIX-compliant shell syntax (#!/bin/sh) and rely only on commands available on the target router.
  • Be mindful of RAM and CPU limitations detailed in the chapter on optimizing resources.
  • Adhere to library linking guidelines for C/C++ apps to maintain firmware compatibility.
  • Follow security best practices for web interfaces.

Best Practices Recap

  • Use the official SDKs and toolchains when available.
  • Structure your application package correctly (*.tgz with a single top-level directory).
  • Implement robust init, install, and uninstall scripts.
  • Manage application configuration using defaults and settings files.
  • Keep scripts and applications lightweight and efficient.
  • Test thoroughly on target hardware and across different firmware versions if aiming for broad compatibility.
  • Use logging for easier debugging.
  • Secure web interfaces appropriately.

Firewall Rules for Router Apps

If your Router App runs a server accepting connections on a specific TCP or UDP port, you must configure the router's firewall (iptables) to allow this traffic, especially if the router's "Default Server" NAT option is enabled.

Tips

The Send all remaining incoming packets to default server option in the NAT configuration can redirect incoming traffic to a specified internal IP address if no other NAT or firewall rule explicitly handles it. This can prevent connections from reaching your Router App.

To ensure traffic reaches your application, the Router App should manage its own firewall rules, typically within its init script (/opt/""/etc/init), adding rules on start and removing them on stop.

The Default Server Option in the NAT Configuration (for IPv4)
The Default Server Option in the NAT Configuration (for IPv4)

Integration with Router Firewall Chains:

Advantech router firmware often provides predefined chains designed for Router App firewall rules to integrate cleanly with the system's overall firewall structure. Use these chains:

  • in_mod chain (filter table): This chain is typically jumped to from the main INPUT chain (which filters traffic destined for the router itself). Rules placed here (or in a custom chain jumped to from here) can explicitly ACCEPT traffic destined for the port your application is listening on.
  • pre_mod chain (nat table): This chain is typically jumped to early in the PREROUTING chain (which handles incoming packets before the routing decision, primarily for DNAT). By adding a rule here (or in a custom chain jumped to from here) that ACCEPTs traffic destined for your application's port, you prevent that traffic from being processed by later DNAT rules in the PREROUTING chain, specifically bypassing the "Default Server" rule.

The example init script snippet below shows functions add_chain() and del_chain() for managing these rules using a unique chain for the application. The add_chain() function is called during init start with parameters like mod_mymodule tcp 1000, where mod_mymodule is a unique identifier (custom chain name) for the app's rules, tcp is the protocol, and 1000 is the port number (which should ideally be read from the app's settings file). The del_chain() function, called during init stop, removes the custom chain and the jumps to it, cleaning up the firewall rules. The del_chain function in the example includes checks to prevent errors if rules or chains don't exist before attempting deletion.

Example Functions for init Script:

Example case Statement in init Script:

Simplified iptables Structure Overview:

The following illustrates where the custom module chains (mod_..., created by add_chain) typically fit into the router's packet processing flow.

  • nat Table (Connection Tracking, Address/Port Translation)
    • PREROUTING Chain (Incoming packets, before routing decision)
      • ... (Standard rules)
      • JUMP to pre chain (Typically for WAN interfaces). This chain usually jumps to pre_mod, which contains specific modification rules such as:
        • JUMP to mod_app1 chain (App 1's rules)
        • JUMP to mod_app2 chain (App 2's rules)
        • ... (Further rules added by add_chain)
      • ... (Standard DNAT rules, potentially Default Server DNAT rule)
    • POSTROUTING Chain (Outgoing packets, after routing decision)
      • ...
      • ... (Standard SNAT/MASQUERADE rules)

By adding an ACCEPT rule in a custom chain jumped to from pre_mod (nat table), the Router App prevents its traffic from being redirected by later DNAT or Default Server rules. The corresponding ACCEPT rule jumped to from in_mod (filter table) explicitly allows the traffic to reach the application process running on the router.

Controlling Router Peripherals

Digital Input/Output Interfaces

io Utility

The io utility allows controlling binary outputs and reading binary/analog/counter inputs from the command line.

Caution

Binary I/O often uses inverse logic. Active physical input (e.g., high voltage) might read as logical 0. Setting output to 1 might result in a low voltage physically. Always consult the specific router model's User Manual for I/O logic details.

Synopsis

io get or io set

CommandDescription
get Reads the state of input `` (e.g., bin0, an1, cnt1).
set Sets the state of output to (typically 0 or 1).

io Utility Commands

Pin Names

Refer to the router's User Manual for available pin names (bin0, out0, an1, cnt1, etc.), which depend on the model and installed expansion modules (e.g., XC-CNT).

Examples

  • io set out0 1 : Sets binary output OUT0 to state 1.
  • io get bin0 : Reads the state of binary input BIN0. Check exit code $? (0 or 1).
  • io get an1 : Reads the value of analog input AN1 (if XC-CNT present).
  • io get cnt1 : Reads the value of counter input CNT1 (if XC-CNT present).

Activate Binary Output via SMS

Tips

See Section on the custom SMS handling mechanism using /var/scripts/sms. Ensure this mechanism is enabled in the router's SMS configuration.

This example demonstrates the implementation of a new SMS command, "IMPULSE", which activates binary output OUT0 (a GPIO pin) for 5 seconds. It is triggered when an SMS containing the text "IMPULSE" is received by the router. The command is processed only if the sender is authorized.

Authorization Logic Options
The example script includes two common ways to authorize the sender:

  1. Check the flag passed by the system ($1): If the sender's number is listed in the Phone Number x fields in the router's SMS settings GUI, $1 will be 1.
  2. Hardcode specific phone number(s) directly in the script and compare against the sender's number ($2).

The example uses a combination (OR logic). Adjust the authorization check as needed for your requirements.

Startup Script
This script creates the /var/scripts/sms handler script in RAM at boot time.

Send SNMP Trap on Binary Input State Change

Tips

Make sure you have correctly configured the SNMP manager in Configuration → Services → SNMP.

This script sends an SNMP trap to the configured SNMP manager whenever the state of binary input BIN0 (a GPIO pin) changes (either becoming active or inactive). It continuously monitors the input state.

Startup Script

How It Works

  • The script defines the IP address of the SNMP manager (SNMP_MANAGER).
  • It enters an infinite loop (while true) for continuous monitoring.
  • Inside the loop:
    • io get bin0: Reads the current state of binary input BIN0.
    • VAL=$?: Captures the exit status (state: 0=active, 1=inactive).
    • if [ "$VAL" != "$OLD" ]: Checks if the state has changed since the last check.
    • If the state has changed:
      • snmptrap $SNMP_MANAGER 1.3.6.1.4.1.30140.2.3.1.0 u $VAL: Sends an SNMP trap.
        • $SNMP_MANAGER: The destination IP address.
        • 1.3.6.1.4.1.30140.2.3.1.0: The specific OID (Object Identifier) being sent. This OID represents the state of bin0 .
        • u: Specifies the data type of the value being sent as Unsigned32.
        • $VAL: The current state (0 or 1) of the input pin.
      • OLD=$VAL: Updates the stored state for the next comparison.
    • sleep 1: Pauses for 1 second before the next check.
  • This script sends an SNMP trap containing the specific OID and the new state (0 or 1) every time the binary input changes state.

Serial Interfaces

This chapter provides an overview of using serial interfaces on Advantech routers. It covers identifying available serial ports, command-line utilities for their configuration and use, and an example of interacting with a serial port using a Python script packaged as a Router App via the Advantech ModulesSDK.

Identifying Serial Interfaces

Advantech routers support various serial interface standards, with RS-232 and RS-485 being common. The specific interfaces available (e.g., physical DB9 ports, terminal blocks, or those provided via expansion modules like PORT1/PORT2) and their parameters (e.g., dedicated ttyS* device, configurable modes) vary by router model. Always consult the hardware manual for your specific router model for detailed specifications.

To list available serial device nodes on a router, you can use the following console command. The presence of a device node in /dev/ (e.g., /dev/ttyS0, /dev/ttyUSB0) indicates that the kernel recognizes a serial interface. However, this does not always mean a physical port is directly accessible on the device exterior without additional configuration or hardware. Serial interfaces can also be provided by USB-to-UART converters, which typically appear as /dev/ttyUSB* devices.

Serial port configuration (baud rate, data bits, parity, stop bits) can be managed using command-line utilities or programmatically, as detailed in the following sections.

Command-Line Utilities for Serial Ports

Two common utilities for managing serial ports from the command line are stty and portd.

stty - Set and Print Terminal Line Settings

The stty program is used to change and print terminal line settings, including those for serial ports. It allows you to configure parameters like baud rate, character size, parity, stop bits, and flow control.

Synopsis:

stty [-a|g] [-F DEVICE] [SETTING]...

Common Options:

OptionDescription
-F DEVICEOpen and use the specified DEVICE instead of standard input.
-aPrint all current settings in human-readable form.
-gPrint all current settings in a stty-readable form (can be used to save and restore settings).
[SETTING]...One or more settings to apply. Common settings include:- ``: Set speed to N bits per second (e.g., 115200).- cs: Set character size to N bits (cs7 or cs8).- cstopb: Use two stop bits (prefix with - for one stop bit, e.g., -cstopb).- parenb: Enable parity generation/detection.- -parodd: Use even parity (if parenb is set). parodd for odd parity.- -inpck: Disable input parity checking.- ignpar: Ignore characters with parity errors.- [-]raw: Enable (or disable with -) raw input. Disables most input processing.- [-]echo: Enable (or disable) echoing of input characters.- [-]crtscts: Enable (or disable) RTS/CTS hardware flow control.- [-]ixon: Enable (or disable) XON/XOFF software flow control.For a full list, consult the stty man page or BusyBox documentation.

Common stty Options and Settings.

Examples:

To display all current settings for the serial port /dev/ttyS0:

stty -F /dev/ttyS0 -a

To display only the current speed of /dev/ttyS1:

stty -F /dev/ttyS1 speed

To configure /dev/ttyS0 to 115200 bps, 8 data bits, no parity, 1 stop bit (8N1), and enable raw mode:

stty -F /dev/ttyS0 115200 cs8 -cstopb -parenb raw

portd - Serial Port to TCP/UDP Redirector

The portd daemon is a utility that provides transparent data transfer between a serial line and a TCP or UDP network connection. It can operate either as a server (listening for incoming network connections and forwarding data to/from the serial port) or as a client (connecting to a remote network host and forwarding data). This is often used for "Serial-to-Ethernet" or "Serial-over-IP" applications.

Synopsis:

portd -c [-b ] [-d ] [-p ] [-s ]

[-l ] [-4] [-h ] [-o ] -t

[-k ] [-i ] [-j ]

[-n ] [-r ] [-u user] [-x] [-z] [-f]

Supported Options:

OptionDescription
-c Required. Serial line device (e.g., /dev/ttyS0).
-b Baud rate (e.g., 115200). Default typically 9600.
-d Number of data bits (7 or 8). Default typically 8.
-p Parity: none, even, odd. Default typically none.
-s Number of stop bits (1 or 2). Default typically 1.
-l Data split timeout in milliseconds. If no data arrives from the serial port for this timeout, buffered data is sent over the network. Default typically 50.
-4Forced detection for RS-485 on an Expansion Port. (Advantech-specific functionality).
-h Remote hostname or IP address to connect to (client mode). If not specified, portd runs in server mode.
-o Network protocol: tcp or udp.
-t Required. TCP or UDP port number.
-k TCP Keepalive: Time (seconds) of inactivity before sending the first keepalive probe. Default: disabled.
-i TCP Keepalive: Interval (seconds) between subsequent keepalive probes. (Often named `` in help).
-j Inactivity timeout in seconds. If no data is transferred on the network connection for this period, the connection might be closed. (Often named `` in help).
-n When acting as a server and a connection limit is reached (e.g., typically 1 client by default if -N is not supported or set), this option might control how new incoming connection attempts are handled (e.g., reject immediately). The exact behavior should be verified.
-r TCP Keepalive: Number of unacknowledged probes before considering the connection dead.
-u Run portd as a specified user after starting (drops root privileges if started as root).
-xUse CD (Carrier Detect) line as an indicator of TCP connection status (server mode).
-zUse DTR (Data Terminal Ready) line to control/reflect TCP connection status (server mode).
-fEnable flow control. The type of flow control (hardware/software) might be auto-detected or a default. For specific control (e.g., RTS/CTS vs XON/XOFF), underlying system settings via stty might be needed if portd doesn't offer finer granularity.

Supported portd options based on router's help output.

Examples:

To run portd as a TCP server on port 1000, redirecting data to/from /dev/ttyS0 configured at 115200 bps, 8 data bits, no parity, 1 stop bit, and with flow control enabled, running it in the background:

portd -c /dev/ttyS0 -b 115200 -d 8 -p none -s 1 -f -o tcp -t 1000 &

To run portd as a TCP client, connecting to 192.168.1.100 on port 2000, forwarding data from /dev/ttyS1 (9600 bps, 8N1), and setting an inactivity timeout of 300 seconds:

portd -c /dev/ttyS1 -b 9600 -h 192.168.1.100 -o tcp -t 2000 -j 300 &

Scripting Serial Communication with the um Python Module

This example demonstrates how to use the Advantech um Python module to communicate over a serial port (e.g., /dev/ttyS0) on the router. The Python script will be packaged as a Router App using the ModulesSDK.

Caution

To run Python scripts on the router, the Python 3 or Python 3 Lite Router App must be installed from the router's web interface (Customization → Router Apps) or be part of the firmware.

Step 1: Writing the Python Script

We will create a simple Python script named serial_um_example.py. This script will open /dev/ttyS0, send a command, attempt to read a response, and then print the response. For this example to fully work, a device capable of responding must be connected to /dev/ttyS0 and configured with matching serial parameters.

Source code for serial_um_example.py:

This file will be placed in ModulesSDK/modules/serial_um_example/source/serial_um_example.py.

Resulting Directory Structure for the serial_um_example Module within SDK:

After these steps, the directory structure for your serial_um_example module within the ModulesSDK should look like this:

Step 4: Building the Router App Package

Once the Python script and Makefiles are correctly placed within the ModulesSDK structure:

  1. Navigate to the SDK's root directory:
user@machine:~$ cd /path/to/your/ModulesSDK/
  1. Build for all modules:

Often, simply running make from the root of the SDK might build all modules for all default platforms if the main SDK Makefile is structured that way.

user@machine:/ModulesSDK$ make

The SDK's build system will invoke the Makefiles you prepared. The install target in your source/Makefile will copy serial_um_example.py, um.py, and the appropriate libum.so into the staging area. The main module Makefile will then package these files into a *.tgz archive.

Step 5: Uploading and Testing the Router App

Upload the generated *.tgz archive file for your target platform (e.g., serial_um_example.v4.tgz) to your Advantech router. This is typically done via the router's web interface, in the section Customization → Router Apps.

After the Router App is installed by the system:

  • The Python script, along with um.py and libum.so, should be installed into a directory under /opt/, typically /opt/serial_um_example/bin/.
  • Test from the router's CLI:
    • Run script from any location using the full path:
/opt/serial_um_example/bin/serial_um_example.py
  • Observe the output. The script will attempt to communicate with /dev/ttyS0. If a device is connected and responds to "ATI", you should see its response. Otherwise, you'll see a "No data received" message or an error if the port cannot be opened.

This example provides a basic framework for packaging a Python script that uses the um module as a Router App. For more complex applications, you might need to include more sophisticated install/uninstall scripts, manage dependencies, or handle background services with an init script.

USB Interface

Storage Access — USB Flash and SD Card

Connecting a USB device or SD card works in the standard Linux way. When you connect a USB Flash drive to the router, its device node will appear in the /dev directory. You can view details about detected devices using the dmesg command.

  • USB Flash drive partitions typically appear as /dev/sda1. You can mount them using the mount command (e.g., mount -t vfat /dev/sda1 /mnt).
  • Some USB-to-Serial converters are supported and will show up as /dev/ttyUSB0, /dev/ttyUSB1, etc. (See Section on Supported USB Serial Converter Chips).
  • An SD Card inserted into the router's reader usually appears with partitions like /dev/mmcblk0p1. You can mount it similarly (e.g., mount -t vfat /dev/mmcblk0p1 /mnt).

Mounting a USB Flash Drive Partition

To access files on a USB flash drive partition within the router's system, it must first be mounted. Follow these steps:

  1. Connect the USB Flash Drive: Plug the USB flash drive into the router's USB port.
  2. Identify the Device Partition: Run dmesg | tail to display recent system messages. Look for lines indicating the new device name (e.g., sda) and its partitions (e.g., sda1). Note the partition identifier, such as /dev/sda1.
  3. Create a Mount Point (Optional but Recommended): Create an empty directory where the filesystem will be mounted. Using /mnt is common practice.
    mkdir -p /mnt/usb
  4. Mount the Partition: Use the mount command to attach the partition to the mount point. The system often auto-detects the filesystem type.
    mount /dev/sda1 /mnt/usb
  5. Verify Successful Mount: List mounted filesystems using mount | grep /mnt/usb or check the contents of the mount point directory (ls /mnt/usb) to confirm access.
  6. Unmount the Partition: Before physically removing the drive, unmount it using the mount point or device name to prevent data corruption.
    umount /mnt/usb
    or
    umount /dev/sda1

Once unmounted, the USB flash drive can be safely removed. Ensure the correct device name and filesystem type (if specifying manually) are used.

Tips

If the mount command fails, double-check the device name (/dev/sda1) and try specifying the filesystem type with the -t option: mount -t vfat /dev/sda1 /mnt/usb.

Automount USB Flash Disk

Tips

This script provides a basic mechanism to automatically mount the first partition of a detected USB flash drive to /mnt/flash when inserted, and unmount it when removed. It requires firmware version 4.0.0 or later. The monitoring script should be saved to a file (e.g., /root/automount.sh) and launched via the Startup Script.

This example demonstrates how to create a background script that monitors for the presence of a USB flash drive and automatically mounts/unmounts its first partition.

Monitoring Script (automount.sh)

Save the following code into a file, for example, /root/automount.sh.

Startup Script

Add the following line to your Startup Script to launch the monitoring script in the background when the router boots. Ensure the path (/root/automount.sh) matches where you saved the monitoring script.

#!/bin/sh

# Launch the automount script in the background
sh /root/automount.sh &

How It Works

  • The Startup Script simply executes the saved automount.sh script in the background using sh ... &.

  • The automount.sh script runs an infinite loop (while true).

  • Inside the loop, it reads /proc/diskstats, a kernel interface providing disk I/O statistics.

  • It uses awk to search for a line matching the pattern / 8 1 /. This pattern specifically looks for:

    • A space.
    • The major device number 8 (commonly used for SCSI/SATA/USB block devices like /dev/sdX).
    • Exactly seven spaces (\x20 represents a space in the original awk pattern).
    • The minor device number 1 (commonly representing the first partition, e.g., sda1).

    If a matching line is found, awk prints the third field ($3), which is the device name (e.g., sda1).

  • The device name is stored in the flsh variable.

  • if [ "$flsh" ]: This checks if the flsh variable is non-empty. If the device partition was found, the variable will contain its name (like sda1), and the condition is true, setting i to 1 (detected). Otherwise, i is set to 0 (not detected). Quotes around "$flsh" prevent potential errors if the variable is empty.

  • if [ $LAST != $i ]: The script compares the current detection state (i) with the state from the previous loop iteration (LAST). It only proceeds if the state has changed (device inserted or removed).

  • LAST=$i: Updates the stored state for the next iteration.

  • If state changed to 1 (Device Detected):

    • Prints "Mount flash disk."
    • Checks if the directory /mnt/flash exists using [ ! -d ... ]. If it doesn't exist, it creates it using mkdir.
    • Executes mount /dev/$flsh /mnt/flash to mount the detected partition (e.g., /dev/sda1) onto the /mnt/flash directory. Filesystem type is typically auto-detected.

  • If state changed to 0 (Device Removed/Not Detected):

    • Prints "UMOUNT flash disk."
    • Executes umount /mnt/flash to unmount the filesystem.
    • Executes rmdir /mnt/flash to remove the mount point directory. Note that rmdir will fail if the directory is not empty (e.g., if the unmount failed or files were created outside the mount).

  • sleep 2: The script pauses for 2 seconds before repeating the loop.

Caution

The method used to detect the USB drive by parsing /proc/diskstats for the specific pattern / 8 1 / is very basic and potentially fragile. It will likely only work for the first partition (sda1) of the first detected USB drive. It may fail if the drive uses different major/minor numbers, has multiple partitions you wish to access, or if other block devices interfere. More robust solutions often involve using udev rules or dedicated automount daemons if available on the system.

Tips

After adding the automount.sh script (e.g., to /root/) and configuring the Startup Script to launch it, reboot the router. When you insert a compatible USB flash drive, its first partition should automatically become accessible under /mnt/flash.

Supported USB Serial Converter Chips

Advantech routers include built-in kernel support (drivers) for several common USB-to-serial converter chipsets. When an adapter using one of these chips is connected, the corresponding kernel module should load automatically, and the adapter should appear as a serial device node in the /dev directory (e.g., /dev/ttyUSB0).

Supported chip families generally include:

  • FTDI: FT232R, FT232H, FT2232, FT4232, FT230X, etc. (Driver: ftdi_sio)
  • Silicon Labs: CP210x series (e.g., CP2101, CP2102, CP2104) (Driver: cp210x)
  • Prolific: PL2303 (various versions, support might vary) (Driver: pl2303)
  • CDC-ACM: Standard class for many modern USB serial devices (e.g., based on CH340/CH341 - support might depend on kernel config, some newer Arduino boards). (Driver: cdc-acm)

When you connect a supported adapter, the corresponding kernel modules load automatically, and the device appears as /dev/ttyUSB0, /dev/ttyUSB1, etc.

You can verify this in console with: dmesg | grep -i ttyUSB

Using an Unsupported Serial Converter Chip

In some cases, you may need to use a USB-to-Serial converter whose specific Vendor ID (VID) and Product ID (PID) combination is not natively recognized by the pre-loaded kernel drivers (like ftdi_sio or pl2303), even if the underlying chip is technically supported by the driver. Every USB device is identified by these two hexadecimal numbers:

  • Vendor ID (VID): Identifies the device manufacturer (e.g., 0403 for FTDI).
  • Product ID (PID): Identifies the specific product model (e.g., 6001 for FT232R).

Finding the VID and PID

You can discover the VID and PID of your USB device in several ways:

  • On a Linux PC: Use the lsusb command. The output lists connected devices with their IDs in VID:PID format. Note that lsusb command is not available on the router itself.
  • On Windows: Open Device Manager, find the device (it might appear as an unknown device or under "Ports (COM & LPT)" or "Universal Serial Bus controllers"), right-click, select Properties, go to the Details tab, and choose "Hardware Ids" from the Property dropdown. Look for a string like USB\VID_xxxx&PID_yyyy.
  • On the Router: Check kernel messages using dmesg immediately after plugging in the device. Look for lines like usb 1-1: new full-speed USB device number X using ... and potentially lines showing idVendor=xxxx, idProduct=yyyy.

Dynamically Enabling the Device via sysfs

Once you have the VID and PID (as four-digit hexadecimal numbers without the 0x prefix) and know the appropriate kernel driver module name for the chip type (e.g., ftdi_sio, pl2303, cp210x), you can attempt to dynamically tell the driver to handle this specific VID/PID combination using the new_id interface within the sysfs filesystem:

Syntax:

echo   > /sys/bus/usb-serial/drivers/ftdi_sio/new_id

Replace and with the four-digit hex values (without 0x).

Example (for VID=0403, PID=d921):

echo 0403 d921 > /sys/bus/usb-serial/drivers/ftdi_sio/new_id

After running this command, check dmesg again. If successful, you should see messages indicating the driver has claimed the device and created a serial port device node (e.g., /dev/ttyUSB0). If not, the driver might not support the underlying chip type.

Caution

This dynamic binding is temporary and will be lost on reboot. To make it persistent, this command must be executed from a Startup Script or a Router App's init script each time the router boots or the device is connected.

User LED

led Utility

The led utility provides basic command-line control over the user-controllable LED (often labeled "USR" or similar) typically found on the router's front panel.

Synopsis

led [on | off]

OptionDescription
onTurns the USR LED on (solid state).
offTurns the USR LED off.

led Utility Options

Check IPsec Connection Status via LED

Tips

This script monitors the status of a specific IPsec tunnel and uses the USR LED to indicate whether the tunnel is established. It utilizes the swanctl command (part of strongSwan) and standard Linux utilities like awk and grep. The script should be saved to a file (e.g., /root/ipsec_stat.sh) and launched from the Startup Script.

This example provides a simple script to visually indicate the status of an IPsec connection using the router's USR LED. It checks the status every 5 seconds.

Monitoring Script (ipsec_stat.sh)

Save the following code into a file, for example, /root/ipsec_stat.sh. Adjust the num variable to match the IPsec connection number you want to monitor (typically 1, 2, 3, or 4, corresponding to the configuration order in the GUI).

Startup Script

Add the following line to your Startup Script (Configuration → Scripts → Startup Script) to launch the monitoring script in the background when the router boots. Ensure the path (/root/ipsec_stat.sh) is correct.

How It Works

  • The Startup Script executes the saved ipsec_stat.sh script in the background using sh ... &.
  • The ipsec_stat.sh script first sets a variable num to specify which IPsec connection instance (1-4) to monitor.
  • It enters an infinite loop (while true).
  • Inside the loop:
    • /usr/libexec/ipsec/swanctl --list-sas: This command lists the current IPsec Security Associations (SAs), providing detailed status information for active tunnels.
    • | awk "/ipsec$num/": The output of swanctl is piped to awk. This filters the lines to only include those containing the specific connection name pattern (e.g., ipsec1 if num=1).
    • | grep INSTALLED: The filtered output is then piped to grep to check if the line contains the word "INSTALLED". A successfully established SA typically shows this state.
    • sts=$?: The exit status of the grep command is captured in the variable sts. grep returns 0 if it finds a match ("INSTALLED" was found for the specified tunnel), and a non-zero value otherwise.
    • if [ "$sts" = "0" ]: The script checks if the exit status is 0.
      • If sts is 0 (tunnel is installed/established), it executes led on to turn the USR LED on.
      • If sts is non-zero (tunnel is not installed or the line wasn't found), it executes led off to turn the USR LED off.
    • sleep 5: The script pauses for 5 seconds before repeating the check.
  • This provides a continuous visual indication of the specified IPsec tunnel's status via the USR LED.

Tips

After creating the ipsec_stat.sh script (e.g., in /root/), setting the correct IPsec connection number in the num variable, adding the launch command to the Startup Script, and rebooting the router, the USR LED should light up when the monitored IPsec tunnel is established.

Indicate OpenVPN Status via LED

Tips

Advantech routers lack an OpenVPN "management" port, making it difficult to precisely determine if the VPN connection is fully established. However, OpenVPN supports executing scripts when the tunnel process starts (--up) and stops (--down). This example uses these scripts to control the USR LED, providing a visual indication that the OpenVPN process is running, though not necessarily that the connection is fully established and passing traffic.

This example uses simple scripts triggered by OpenVPN's start and stop events to control the router's USR LED.

Up Script (ledon.sh)

Create a file, for example /root/ledon.sh, with the following content:

#!/bin/sh
# ledon.sh - Executed by OpenVPN on --up event
led on

Down Script (ledoff.sh)

Create another file, for example /root/ledoff.sh, with the following content:

#!/bin/sh
# ledoff.sh - Executed by OpenVPN on --down event
led off

Configuration

  1. Create the two script files (ledon.sh and ledoff.sh) as shown above.

  2. Make them executable: chmod +x /root/ledon.sh /root/ledoff.sh

  3. Copy these script files to a persistent location on the router (e.g., /root/).

  4. In the OpenVPN configuration settings within the router's web GUI (Configuration -> VPN -> OpenVPN), add the following line to the Extra Options field:

    script-security 2
up /root/ledon.sh
down /root/ledoff.sh

Note: Enter each option on a new line in the Extra Options field.

How It Works

  • The script-security 2 option allows OpenVPN to call external scripts. It's crucial for security that this level is used, and the scripts themselves are secure.
  • The up /root/ledon.sh option tells OpenVPN to execute the ledon.sh script after the tunnel device (e.g., tun0) has been successfully opened and configured. This script simply runs the led on command, turning the USR LED on.
  • The down /root/ledoff.sh option tells OpenVPN to execute the ledoff.sh script when the OpenVPN tunnel process stops or the tunnel device is closed. This script runs led off, turning the USR LED off.
  • This setup provides a basic visual cue: the LED is on when the OpenVPN process believes the tunnel is up, and off when it's stopped or down.

Caution

As noted, this method only indicates if the OpenVPN process has successfully executed its 'up' script. It does not guarantee that the VPN tunnel connection itself is successfully established, authenticated, or functional for passing traffic.

Constraints

S1 Router Programming Considerations

The S1 Router line has specific characteristics affecting Router App development, primarily related to its security model and read-only filesystem.

Extending the Read-Only Root Filesystem

On S1 Routers, the root filesystem is mounted read-only and cannot be directly modified. However, functionality can be extended using Router Apps, which are installed as read-only SquashFS overlays mounted over specific directories like /opt and potentially /usr.

Other writable partitions, such as the persistent /var and volatile /run and /tmp directories, are mounted with the "noexec" option. This prevents the execution of binaries directly from these locations. Therefore, executable files (binaries, scripts intended for direct execution) must be packaged within a Router App and placed in appropriate locations within the overlay (e.g., /opt//bin).

Examples example8 and example9 within the ModulesSDK demonstrate how to structure a Router App to add files to the /usr directory via the overlay mechanism. To build such an example (e.g., for the RBv2i-S1 platform):

cd modules/example8
make PLATFORM=RBv2i-S1

This build process generates a *.raw file. This .raw file is the Router App package for S1 platforms and can be installed using the standard Router App installation procedure in the web interface.

Adding JavaScript and CSS to the S1 Web Administration Interface

The S1 router's web server enforces a strict Content-Security-Policy (CSP). Inline JavaScript code and CSS styles are generally blocked unless specific mechanisms are used. To include custom JavaScript or CSS within web pages generated by your Router App (e.g., CGI scripts) on S1 routers, they must be embedded within or tags that include a dynamically generated nonce (number used once) attribute.

The ModulesSDK (version 2.1.1 and later) provides helper functions, um_html_js and um_html_css, designed to handle this correctly for C-based CGI. These functions automatically incorporate the required nonce when embedding scripts or styles. Example usage within a C-based CGI script using the SDK:

// Example: Set focus on the username field after the page loads
um_html_js("document.f.username.focus();\n");

// Example: Add a simple CSS rule
um_html_css(".my-class { color: blue; }\n");

For Python CGI scripts on S1, ensure your HTML generation logic can incorporate a nonce if provided by the system or the um Python module for S1.

Changing System Configuration Programmatically on S1 Routers

Configuration files on S1 Router line devices include an integrity check (checksum) to prevent unauthorized modifications. To change system configuration settings from within a Router App script, you cannot simply edit the configuration files directly. Instead, follow this procedure:

  1. Create a partial configuration backup file (e.g., /tmp/backup.cfg) containing only the settings you wish to change, formatted correctly (e.g., SECTION_OPTION='value').
  2. Calculate the SHA512 hash of this partial backup file and append it to the file itself in the format INTEGRITY=CFG_HASH=.
  3. Use the restore command (with appropriate privileges, usually via sudo if available/required in the script context) to apply the changes from this integrity-checked partial backup file.

Example script snippet:

Note: Ensure the user/context running this script has permissions to execute sudo restore. The exact mechanism may vary depending on how your script is invoked by the system.

Hardware Constraints

Non-volatile Memory

Routers are embedded systems with limited resources. Efficient use of storage, RAM, and CPU is crucial.

Router Apps are installed in the /opt directory. Additionally, persistent data that needs to survive reboots but is generated or modified at runtime can often be stored in the /var/data directory. The type and size of non-volatile memory available for these directories vary depending on the router platform, as shown in the tables below.

Characteristics of the /var/data Directory Partition
Parameterv2iv2i with eMMCv3v3 with eMMCv4v4i
Memory typeNOReMMCMRAMeMMCeMMCeMMC
File systemJFFS2ext4JFFS2ext4ext4ext4
Part. size2 MiB512 MiB128 KiB512 MiB512 MiB474 MiB

Characteristics of the /opt Directory Partition

Parameterv2iv2i with eMMCv3v3 with eMMCv4v4i
Memory typeNOReMMCNOReMMCeMMCeMMC
File systemJFFS2ext4JFFS2ext4ext4ext4
Part. size12 MiB814 MiB128 MiB838 MiB838 MiB2.16 GiB

Caution

On platforms where the /var/data partition uses MRAM and is 128 KiB in size (e.g., standard v3 routers), it is strongly recommended that a Router App uses no more than 64 KiB of this space. The remaining space is required by the router's operating system for its own persistent data storage.

Notes:

  • The JFFS2 filesystem used on some NOR flash partitions supports compression. This means you might be able to store more data than the raw partition size suggests if the data compresses well.
  • It is standard practice for a Router App needing persistent runtime data storage to create its own subdirectory within /var/data, e.g., /var/data/. This should typically be done in the install or init start script.
  • The system typically automatically deletes the /var/data/ subdirectory (if it exists) when the corresponding Router App is uninstalled.
  • Cleanup of any other files or subdirectories created by the Router App outside of /opt/ or /var/data/ is the responsibility of the Router App author (usually handled in the uninstall script).

RAM Utilization

Refer to the table below for the amount of RAM available on different router platforms. Router Apps can use standard dynamic memory allocation functions (e.g., malloc in C/C++, equivalent mechanisms in Python). Exercise caution regarding memory consumption; ensure your Router App does not deplete system memory, which could negatively impact router stability and performance.

RAM Memory Parameters
Parameterv2i routersv3 routersv4 routersv4i routers
RAM size128 MB512 MB1024 MB1024 MB

CPU Performance Considerations

There are CPU parameters for different router platforms listed in the table below. When developing applications consider these CPU constraints:

  • Choose the development language appropriate for the task. C/C++ generally offers better performance for CPU-intensive operations than interpreted languages like Python or shell scripts.
  • Avoid busy-waiting or tight loops that can consume excessive CPU.
  • Offload complex computations to external systems if feasible and appropriate for your application.
  • Profile your application if performance issues arise.
CPU Architecture
Parameterv2i routersv3 routersv4 routersv4i routers
CPUSAM9X60AM3352ARMv8-AARMv8-A
Architecturearm 5TEJarm v7arm v8arm v8
CoreARM926EJ-SCortex-A8Cortex-A72Cortex-A53
CPU power660 DMIPS2000 DMIPS4.7 DMIPS/MHz2.3 DMIPS/MHz
Understanding Cross-Compilation and Compiler Flags

Cross-compilation is the process of compiling code on one system (the development host, e.g., x86 Linux) to run on a different system (the target router, e.g., ARM). This requires a toolchain (compiler, linker, libraries) built for the target architecture.

If you choose to use a different cross-compiler than the ones officially provided (see section on Toolchains), or if you need to fine-tune build parameters, ensure you use appropriate compiler flags for the target platform to generate compatible binaries. Based on the router platform, use the following flags:

v2i routers (ARMv5TEJ):

-march=armv5te -mtune=arm926ej-s  -mfloat-abi=soft

v3 routers (ARMv7-A / Cortex-A8):

-march=armv7-a -mtune=cortex-a8 -mfpu=vfpv3 -mfloat-abi=softfp

v4 routers (ARMv8-A / Cortex-A72):

-march=armv8-a+crc+crypto -mtune=cortex-a72

v4i routers (ARMv8-A / Cortex-A53):

-march=armv8-a+crc+crypto -mtune=cortex-a53

Custom Firmware Compilation

Getting Started with Custom Firmware Compilation

Overview of Custom Firmware for Advantech Routers

Compiling custom firmware for Advantech routers involves modifying or rebuilding components of the router's operating system (ICR-OS). This can range from recompiling individual open-source utilities to, in theory, building a more comprehensive firmware image. This process is intended for advanced users who understand the implications and risks involved.

It is important to note that while it might be technically possible to build a complete firmware image using the provided sources, the router hardware will typically reject firmware images that are not digitally signed by Advantech. Therefore, the primary focus of custom compilation for end-users is often the modification or replacement of individual open-source components.

Prerequisites and Essential Knowledge

To embark on custom firmware compilation or modification of its components, certain prerequisites are essential:

  • Operating System: A 64-bit Linux-based operating system is necessary for the build environment. This can be a dedicated physical machine or a virtual machine.
  • Technical Skills: Familiarity with the Linux command line, basic C/C++ programming concepts (if modifying source code), and an understanding of build systems (like Make) are highly beneficial.
  • Hardware Access: Access to the target Advantech router for testing and deployment is required.

Users are expected to have the necessary expertise to manage their Linux development environment.

Obtaining Firmware Source Code and Build System Components

All necessary development resources, including source code for open-source components and toolchains, are typically available through Advantech's Bitbucket repositories.

If your goal is to rebuild or modify an open-source component included in ICR-OS, you must first download the source code corresponding to your specific router firmware version. This can be found on the Advantech ICR Source Code page. To determine your firmware version, navigate to the router's web interface, select General from the left menu, and check the System Information page. The firmware version follows a major.minor.patch format (e.g., 6.1.5). The corresponding source archive will typically be named similarly (e.g., firmware-6.1.5-src.tar).

The essential first step for any C/C++ development, including modifying firmware components, is to obtain and set up the appropriate cross-compiler for your target router platform. This enables you to generate executable binaries on your development machine that can run on the router. Details on acquiring and setting up the cross-compiler are provided in the SDK chapter (within the Router Apps part of this manual).

Preparing the Build Environment

Setting Up the Development Host System

The instructions for setting up the build environment and its prerequisites have been validated on Ubuntu and Debian distributions. If you are using an RPM-based distribution (such as Fedora, which is also suitable), you will need to adapt the package installation commands to use your system's package manager (e.g., dnf or yum). Package names for dependencies might also differ slightly across distributions.

Setting Up the Cross-Compilation Toolchain

As mentioned in the previous section, a cross-compiler specific to your target Advantech router platform is crucial. This toolchain allows your development host (e.g., an x86-64 Linux machine) to compile code that will execute on the router's different processor architecture (typically ARM-based).

Please refer to the SDK chapter for detailed instructions on downloading, installing, and configuring the appropriate cross-compiler toolchain provided by Advantech. Ensure the toolchain's binaries are accessible in your system's PATH environment variable.

Configuring the Build System

Tips

This section would typically describe how to use tools like menuconfig or similar configuration interfaces if provided with the firmware source package to select components, features, and target platforms before starting the build process.

Understanding the Build Directory Structure

Tips

This section would describe the layout of the firmware source code directory, highlighting important subdirectories such as those containing package sources, kernel sources, toolchain integration, build scripts, and output locations for compiled binaries and images.

Building the Custom Firmware Image Components

The Firmware Build Process: Step-by-Step

Tips

Detailed build instructions for specific components are usually provided within the README file included in the downloaded source code archive for that component or the overall firmware source package. Generally, this involves navigating to the correct source directory and using make with appropriate targets.

Building and Integrating Open-Source Components

When rebuilding or modifying an open-source component from the ICR-OS sources:

  • Locate the Component: Identify the specific component's source directory within the downloaded firmware source archive.
  • Consult README: Detailed build instructions for individual components are typically provided within a README file in their respective source directories or in a general README for the entire source package.
  • Advantech Modifications: Any modifications made by Advantech to the original open-source components are usually supplied as distinct patch files within the archive. This allows for easy identification and understanding of the changes applied by Advantech.
  • Compilation: Follow the provided instructions to compile the component using the prepared cross-compilation toolchain. This usually involves standard commands like make.

The output will be the recompiled binary, library, or other files associated with that component.

Customizing the Linux Kernel (If Applicable)

Tips

Modifying the Linux kernel is a highly advanced task. If undertaken, it would involve obtaining the kernel source specific to the router, configuring it using kernel configuration tools (e.g., make menuconfig within the kernel source directory), compiling it with the cross-compiler, and then integrating the new kernel image. Replacing the kernel is extremely risky and can easily lead to an unbootable device.

Generating and Locating Firmware Image Files

When you recompile individual open-source components, the output is typically the specific binary or library file (e.g., an executable utility, a .so shared library). These files will be located in the build output directory specified by the component's build system, often within a subdirectory related to the target architecture.

As stated earlier, building a complete, digitally signable firmware image for direct flashing via standard update mechanisms is generally not feasible for end-users due to signature requirements. The process described here focuses on replacing individual, uncritical components.

Troubleshooting Common Build Issues

Tips

Common build issues include:

  • Incorrectly configured cross-compiler path.
  • Missing development libraries or tools on the host system (install them using your distribution's package manager).
  • Incompatibility between the source code version and the toolchain.
  • Typos in Makefiles or configuration scripts if modifications were made.

Always check the error messages carefully and consult the README files.

Installing and Managing Custom Firmware Components

Methods for Installing Built Firmware Components

After successfully building a component according to the instructions in the source archive's README file, the resulting binary or library files must be copied onto the target router's filesystem. This typically involves overwriting the original files. This process usually requires root access to the router, commonly achieved via SSH.

General Procedure (Non-S1 Routers):

  1. Ensure you have root access to the router (e.g., via SSH).
  2. Identify the location of the original component on the router's filesystem.
  3. It is highly recommended to back up the original file before overwriting it.
  4. Use a secure copy tool (like scp) to transfer the newly built file from your development machine to the appropriate location on the router, overwriting the original.
  5. Verify file permissions and ownership of the newly copied file match the original.
  6. Reboot the router or restart the relevant service for the changes to take effect (depending on the component).

S1 Router Line Devices:
For S1 Router line devices, which feature a read-only root filesystem, installing custom components by directly overwriting files in system directories is generally not possible. Instead, such components often need to be packaged into a Router App that utilizes an overlay mechanism to present the modified files to the system. This is described in more detail in the chapter on Extending the Read-Only Root Filesystem.

Initial Boot-up and System Verification

Tips

After replacing a component and rebooting (if necessary):

  • Check system logs for any new errors.
  • Test the functionality related to the replaced component.
  • If a utility was replaced, try running it from the command line with relevant options.

Important Note on Running Custom Firmware Components

Modifying or replacing standard firmware components with custom-built versions carries significant risks and consequences. Consider the following points carefully:

  • Even minor modifications to standard utilities or libraries can have unintended side effects, potentially disrupting system stability, breaking features, or causing router malfunctions.
  • Advantech CZ R&D bears no responsibility for any issues, damages, or malfunctions resulting from the use of custom or modified firmware components. Such modifications may invalidate product certifications and guarantees.
  • An Advantech router is a complex system comprising hardware, firmware (software), and certifications. Altering any of these layers results in a product that is fundamentally different from the one originally manufactured and certified by Advantech.
  • Firmware components built solely from the provided open-source components might interact differently if they depend on Advantech's proprietary software which is not part of the open-source release. This means certain features may be affected, or full hardware support related to that component might be compromised.
  • Running custom or modified firmware components voids the device warranty if such modifications are found to be the cause of a malfunction.
    • If modifications lead to non-compliance, all certifications listed on the device label and in the Declaration of Conformity could be considered invalid for that modified state. Telecommunication certification labels (e.g., PTCRB, GCF, RCM, FCC/IC) are tied to the specific certified firmware and hardware configuration.
    • Improper hardware handling resulting from firmware component modifications (e.g., incorrect power sequencing for peripherals due to a modified driver or utility) can shorten the device's lifespan or cause permanent hardware damage.
    • If you intend to distribute devices running your custom firmware components, and these significantly alter the product's certified behavior, the Advantech labels may no longer fully represent the product. Please contact Advantech business representatives to discuss options if extensive modifications are planned for commercial redistribution.
  • Custom firmware components are not supported by Advantech Czech s.r.o. If a device becomes unbootable or unusable due to such modifications (e.g., corrupted critical library, damaged MRAM data due to a faulty custom utility), Advantech support will not cover repairs under warranty. Attempting repairs will incur service fees.
  • Uploading custom firmware images (if a full image build was attempted and is possible to flash) to devices running standard ICR-OS (v3 generation and later) will trigger a warning about the missing digital signature. Proceeding past this warning is done at your own risk and confirms acceptance of the warranty voidance implications. (Note: Digital signature verification for full firmware images applies primarily to v3 and later generation devices.)

Exercise extreme caution when replacing system components: replacing critical system components, particularly the Linux kernel or essential libraries like libc, can potentially render the device unbootable ("bricked"), often without a straightforward recovery method. Modifying firmware components is done entirely at your own risk.

Post-Installation Troubleshooting

Tips

If issues arise after installing a custom component:

  • Revert Changes: If possible, restore the original backed-up component.
  • Check Logs: Examine system logs (Status → System Log in the web interface, or via dmesg/logread on the console) for error messages related to the modified component.
  • Serial Console: Access via a serial console can provide boot messages and diagnostic information even if the network or SSH is unavailable.
  • Safe Mode/Recovery: Familiarize yourself with any safe mode or firmware recovery procedures applicable to your router model (if available) before making critical changes.

Special Router Configuration Options

Overview of Special Configuration Options

Special Options List

This chapter describes advanced configuration parameters that cannot be configured via the web GUI. These options must be set either via SSH or by editing a startup script, which can be configured through the GUI.

ItemDescription
PPP_TOLERATE_NO_SIMWhen set to 1, module restarts are disabled if connectivity is enabled but SIM 1 is missing. After inserting SIM 1, the router must be rebooted manually.
PPP_TOLERATE_NO_SIM2Same as above, but for SIM 2 (if available).
PPP_TOLERATE_NO_SIGNALWhen set to 1, module restarts are disabled when the signal is lost. Note that SIM switching will not function in this mode.
PPP_TOLERATE_NO_SIGNAL2Same as above, but for SIM 2 (if available).

Summary of Special Router Configuration Options

How to Apply Special Options

To apply these special configuration options, you must directly edit the appropriate configuration file stored on the router. These files are located in the /etc directory and are named using the pattern settings.*. You need to locate the file that contains the desired parameter, which can usually be inferred from the parameter name. For example, a configuration parameter beginning with PPP_ will be found in the settings.ppp file. See an example script on the next page.

Configuration by a Script

The following example shows how to set a special option using a shell script. The script below sets PPP_REGISTRATION_TOUT to 5 minutes:
