NMAP

Installation files

Caution

  • This Router App has been tested on a router with firmware version 6.3.10. After updating the router firmware to a higher version, check whether a newer version of the Router App has also been released and update it accordingly for compatibility.

Description

The NMAP Router App allows you to perform TCP and UDP scans. It can also be used for sending pings — IP datagrams intended to verify the functionality of a connection between two network interfaces.

The NMAP Router App has a web interface accessible by clicking the Router App name on the Router Apps page of the router's web interface. The left part of the web interface contains only the Return item, which switches back to the router's configuration pages. The right part displays the following information:

  • Nmap module is located in /opt/nmap/bin/nmap
  • For help, type /opt/nmap/bin/nmap -h
Web interface
Web interface

The first line shows the location of the NMAP Router App and the second shows how to display help for this Router App. Invoking help prints a list of all available parameters, most of which can be combined.

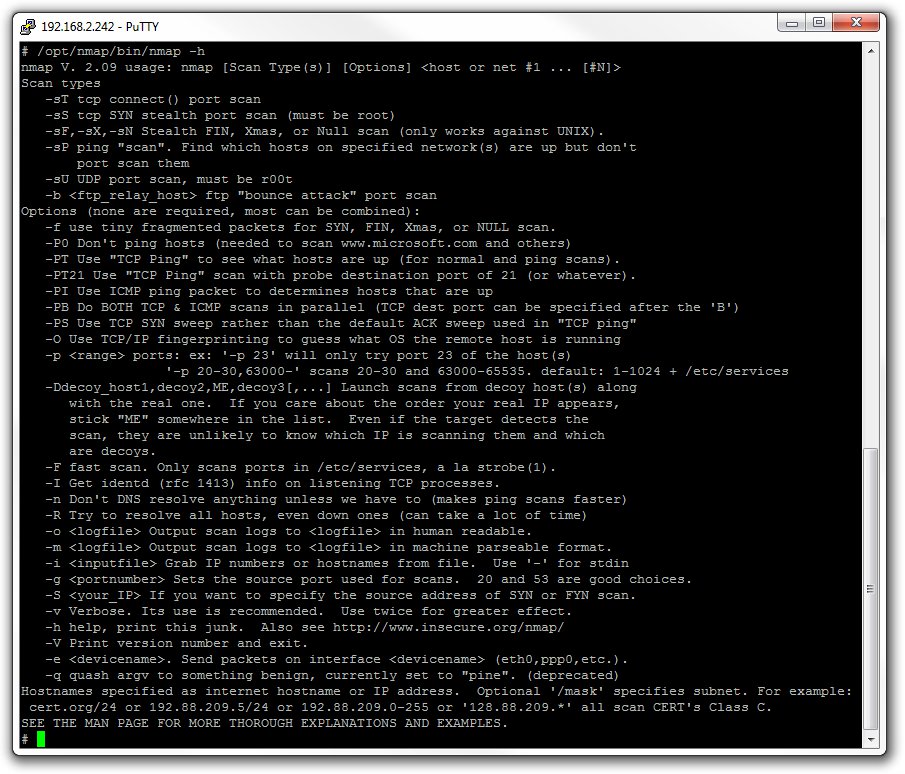

NMAP help (Telnet or SSH)
NMAP help (Telnet or SSH)

Licenses

This section summarizes the Open-Source Software (OSS) licenses used by this Router App.

Licenses
Licenses
