MQTT Introduction

What is MQTT and MQTT Broker

MQTT (Message Queuing Telemetry Transport) is a lightweight messaging protocol designed for efficient communication between devices in IoT (Internet of Things) and mobile environments. It enables devices to publish messages to topics and subscribe to receive messages on those topics, facilitating real-time, reliable, and scalable data exchange with minimal bandwidth and power consumption requirements.

What does MQTT Broker do?

An MQTT Broker is a server or middleware that acts as a central hub for facilitating communication between devices and applications in an MQTT-based IoT architecture.

1. Message Routing — Routes messages between publishers (devices or applications that send data) and subscribers (devices or applications that receive data). When a device publishes a message to a specific topic, the broker ensures that the message is delivered to all subscribers interested in that topic.
2. Protocol Translation — Handles the MQTT protocol, allowing devices and applications using MQTT to communicate with each other regardless of the underlying network protocols they use.
3. QoS Management — MQTT supports three Quality of Service levels: QoS 0 (At most once), QoS 1 (At least once), and QoS 2 (Exactly once). The broker manages message delivery based on the QoS level specified by publishers and subscribers.
4. Session Management — Manages client sessions, ensuring that clients remain connected and handling client reconnects seamlessly. This is essential for maintaining continuous communication in unreliable network conditions.
5. Security — MQTT brokers typically provide authentication, access control, and encryption to protect exchanged data, ensuring that only authorized clients can publish or subscribe to specific topics.

Overall, an MQTT Broker plays a crucial role in enabling scalable, efficient, and secure communication in IoT ecosystems by facilitating the exchange of data between connected devices and applications.

What does MQTT Bridge do?

An MQTT bridge allows two MQTT brokers to be connected together. Messages published on specified topics on one broker can be forwarded to the other broker, and vice versa. This is useful for linking separate MQTT networks, aggregating data from multiple sites, or creating hierarchical MQTT architectures. The direction (in, out, or both) and the topic patterns for message forwarding are configurable for each bridge connection.

Router App Description

Router App Introduction

The MQTT Broker Router App extends the functionality of Advantech routers by providing an integrated MQTT broker service based on the open-source Eclipse Mosquitto™ project. This allows the router to act as a central communication hub for MQTT-enabled devices on the local network, facilitating IoT messaging without requiring an external broker server.

Key features include support for standard MQTT operations, TLS encryption (PSK and certificate-based), client authentication (username/password and certificate CN), and MQTT bridging to connect with other brokers.

Web Interface

After installing the Router App, its web interface can be accessed by clicking the Router App name on the Router Apps page of the router's web interface.

The left panel of the web interface contains a menu with the following sections: Information → Status, Configuration → Broker, Configuration → Bridge 1–3, and Administration → Return. The menu is shown in the figure below.

Router App Main Menu

• The Information → Status page displays the current MQTT service state.
• The Configuration → Broker and Configuration → Bridge 1–3 pages contain the settings described in the sections below.
• Administration → Return exits the Router App interface and returns to the main Router Apps page.

Broker Configuration

The broker is configured on the Broker page under the Configuration menu. The configuration page is shown below and all items are described in the table.

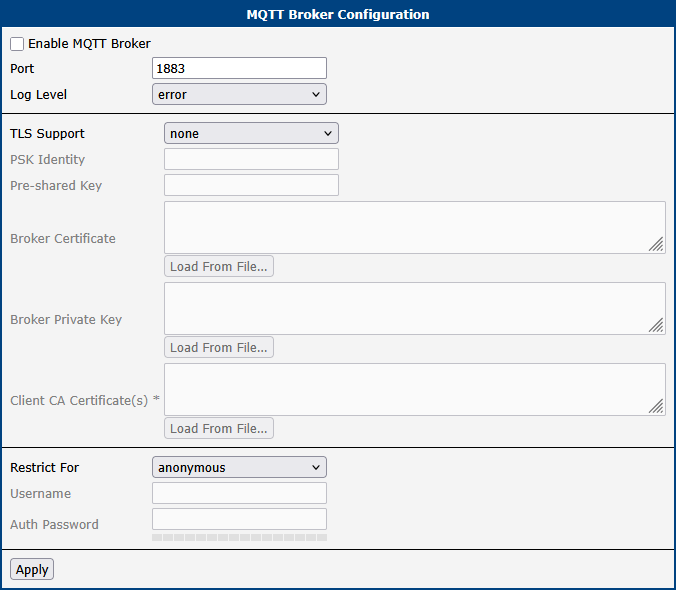

Broker Configuration

Item	Description
Enable MQTT Broker	Enables the MQTT Broker functionality on the router.
Port	TCP port number where the broker listens for incoming client connections. Default: 1883 for unencrypted MQTT, 8883 for MQTT/TLS.
Log Level	Level of detail for log information generated by the broker (None, Error, Warning, Information, Debug).
TLS Support	Options for Transport Layer Security (TLS) encryption: • none — No TLS encryption. Communication is unencrypted. • PSK based — TLS encryption using a Pre-Shared Key. Requires PSK Identity and Pre-shared Key fields. • certificate based — TLS encryption using X.509 certificates. Requires Broker Certificate and Broker Private Key fields.
PSK Identity	When PSK based TLS is selected, the identity string associated with the pre-shared key. Sent by the client to identify which key to use.
Pre-shared Key	When PSK based TLS is selected, the pre-shared key as a hexadecimal string. This key must be securely shared with clients.
Broker Certificate	When certificate based TLS is selected, the broker's public certificate in PEM format. Presented to clients to verify the broker's identity.
Broker Private Key	When certificate based TLS is selected, the broker's private key in PEM format. Must be kept secret.
Client CA Certificate(s)	When certificate based TLS is selected, the CA certificate(s) in PEM format. If specified, clients are required to present a certificate and it is verified against these CAs.
Restrict For	Options for client authentication: • anonymous — No authentication or access control. Any client can connect, publish, and subscribe. • username/password — Connection is restricted to the user in the Username field, who must authenticate with the password in Auth Password. • certificate CN — Publishing and subscribing is restricted to the user in the Username field; the client provides the username as subject CN in its certificate. Requires certificate based TLS with Client CA Certificate(s) configured.
Username	Required username for restricting operations. Used for both username/password and certificate CN options.
Auth Password	When username/password is selected, the required authentication password.

Broker configuration items

Broker Configuration Example

This example shows how to configure the local MQTT broker on the standard unencrypted port (1883) with username/password authentication.

Scenario:

• Enable the broker service by ticking Enable MQTT Broker.
• Listen on TCP port 1883.
• No TLS encryption.
• Require clients to authenticate with username "advantech" and password "password123".

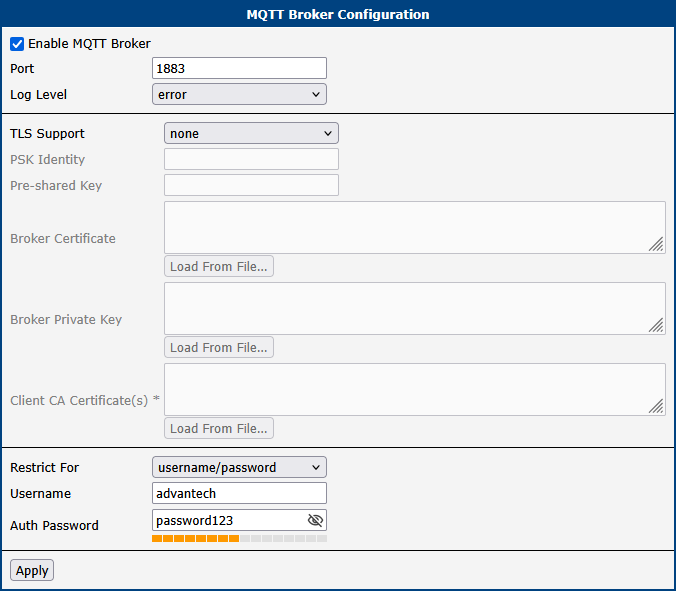

Broker Configuration Example

After applying these settings, MQTT clients can connect to the router's IP address on port 1883, but must provide the username "advantech" and password "password123" during the connection handshake.

Bridge Configuration

Up to three MQTT bridges (Bridge 1–3) can be configured. An MQTT bridge connects the local broker to a remote MQTT broker, allowing messages to be shared between them based on specified topic patterns.

Other brokers can also connect as a bridge to this broker using the connection options defined on the Broker page. When Enable MQTT Broker is unchecked, you can define two or three bridges so the router forwards messages between bridged brokers without having its own clients.

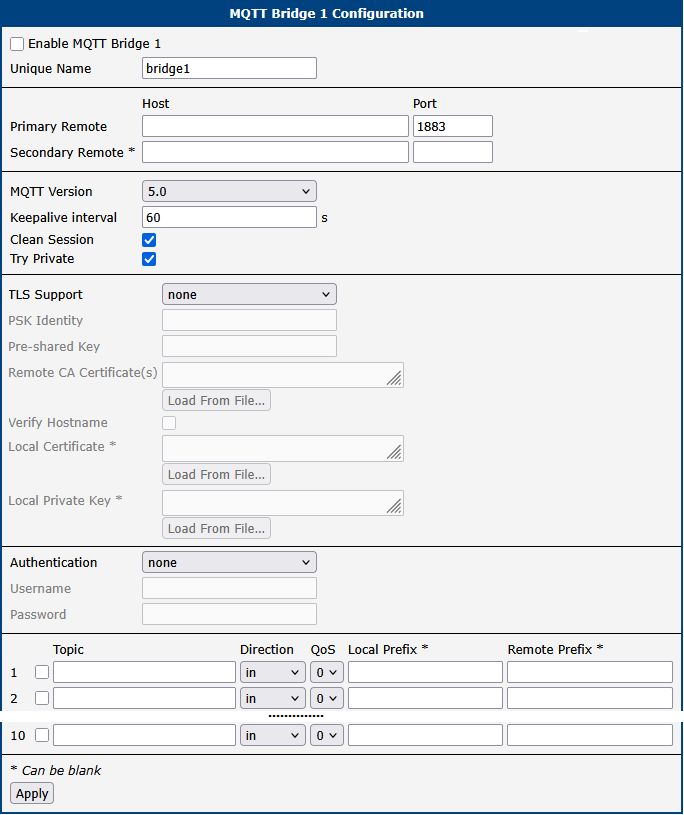

Bridge Configuration

Item	Description
Enable MQTT Bridge x	Enables MQTT Bridge number x.
Unique Name	A user-defined name to identify this bridge. Used as the connection name and as the client ID to identify the local broker to the remote broker.
Primary Remote Host	Hostname or IP address of the remote MQTT broker.
Primary Remote Port	TCP port number of the remote MQTT broker (e.g., 1883 or 8883).
Secondary Remote	Optional second remote MQTT broker using the same credentials as the primary. Used as backup when the primary broker is unavailable.
MQTT Version	MQTT protocol version for the connection to the remote broker (3.1.1 or 5.0).
Keepalive Interval	Maximum time interval in seconds between messages sent between brokers. If no messages are flowing, a PING message is sent. When no response is received, the remote broker is considered disconnected.
Clean Session	When enabled, all messages and subscriptions are cleaned up on the remote broker on bridge disconnection. When disabled, subscriptions and messages are kept and delivered on reconnection.
Try Private	When enabled, the local broker attempts to indicate to the remote broker that the connection is a bridge rather than an ordinary client, enabling more efficient bridging. Not all brokers support this feature.
TLS Support	Options for TLS encryption for the bridge connection: • none — No TLS encryption for the bridge. • PSK based — TLS with a Pre-Shared Key. Requires PSK Identity and Key. • certificate based — TLS with X.509 certificates. Requires Remote CA Certificate(s). If the remote broker verifies client certificates, Local Certificate and Local Private Key must also be filled.
PSK Identity	Identity string to identify the pre-shared key to the remote broker (used if TLS is PSK based).
Pre-shared Key	Pre-shared key as a hexadecimal string (used if TLS is PSK based).
Remote CA Certificate(s)	CA certificate(s) in PEM format used to verify the remote broker's certificate (used if TLS is certificate based).
Verify Hostname	Enables or disables checking whether the remote broker's hostname matches the hostname in its certificate.
Local Certificate	Client certificate in PEM format for this broker to present to the remote broker (optional; used if TLS is certificate based and the remote broker verifies client certificates).
Local Private Key	Private key in PEM format corresponding to the Local Certificate (optional; used if TLS is certificate based and the remote broker verifies client certificates).
Authentication	Options for authenticating to the remote broker: • none — No authentication sent to the remote broker. • username/password — Authenticate using a username and password.
Username	Username for authenticating to the remote broker (used if Authentication is username/password).
Password	Password for authenticating to the remote broker (used if Authentication is username/password).
Topic / Local Prefix / Remote Prefix	Filters and rewrites shared messages. Messages from the local broker with the topic Local Prefix/Topic are forwarded; messages from the remote broker with the topic Remote Prefix/Topic are forwarded locally. When forwarded, Local Prefix is replaced by Remote Prefix and vice versa. A Topic must be provided; Local Prefix and Remote Prefix are optional. Prefixes must end with a slash when used alongside a Topic. Alternatively, leave Topic empty and fill both prefixes without trailing slashes to use them as full topics.
Direction	Filters shared messages by direction: • in — Receive messages from the remote broker matching the topic pattern and publish them locally. • out — Send messages from the local broker matching the topic pattern to the remote broker. • both — Both send and receive messages based on the topic pattern.
QoS	Quality of Service level for shared messages (0: At most once, 1: At least once, 2: Exactly once).

Bridge configuration items

Bridge Configuration Example

This example demonstrates how to configure an MQTT bridge to forward messages published locally on topics starting with local/sensor/ to a public remote broker (test.mosquitto.org) under a different topic structure (remote/office1/sensor/).

Scenario:

• Enable bridge 1 by ticking Enable MQTT Bridge 1.
• Connect to test.mosquitto.org on port 1883.
• Use MQTT version 3.1.1 without TLS or authentication.
• Forward messages out from the local broker to the remote broker.
• Local messages published to local/sensor/<specific_sensor> should appear on the remote broker as remote/office1/sensor/<specific_sensor>.
• Use QoS level 1 for forwarded messages.
• Enable and configure the broker to allow sensors to publish messages to it.

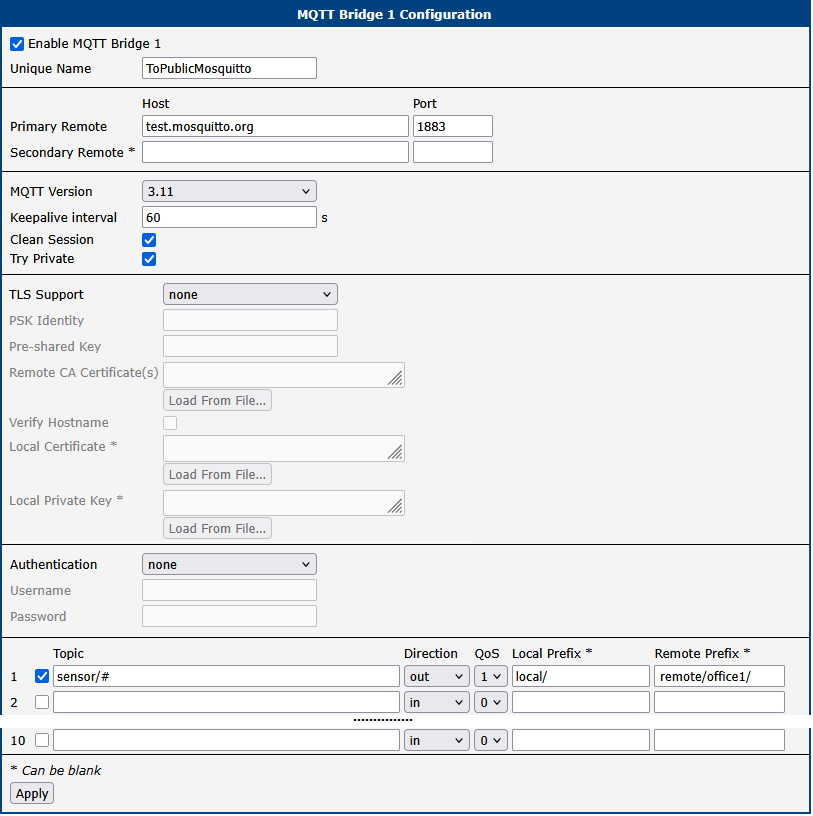

Bridge Configuration Example

Once applied, any message published locally to a topic like local/sensor/temperature will be automatically forwarded and published to remote/office1/sensor/temperature on test.mosquitto.org.

How it works:

1. A message with topic local/sensor/temperature arrives at the broker.
2. The message is published locally to all relevant subscribers.
3. The bridge checks its rules with Direction set to out and finds the configured rule.
4. It checks whether the topic local/sensor/temperature starts with the Local Prefix (local/). It does.
5. It removes the Local Prefix, leaving sensor/temperature.
6. It checks whether the remaining part (sensor/temperature) matches the Topic pattern (sensor/#). It does.
7. It prepends the Remote Prefix (remote/office1/), resulting in the topic remote/office1/sensor/temperature.
8. It publishes the message to the remote broker with topic remote/office1/sensor/temperature at QoS level 1.

Security

The MQTT protocol itself does not mandate encryption, but security is added using TLS at the transport layer. This section details how to configure encryption and authentication for the MQTT Broker Router App.

Encryption

Encryption is not applied at the MQTT protocol level but at the TCP/IP level using TLS. Without encryption enabled, all transmitted data, including passwords, is visible in plain text to network listeners. Two primary options are provided: PSK based and Certificate based.

PSK based encryption uses a Pre-Shared Key (symmetric encryption). Both the broker and the client must possess the same secret key, which must be exchanged securely beforehand. A hexadecimal string is used as the key. You can generate one with OpenSSL:

openssl rand -hex 32

This generates a 32-byte (256-bit) key. Enter this key into the Pre-shared Key field in the Router App settings and configure it on MQTT clients as well. A PSK Identity string must also be provided in both the Router App settings and the client configuration.

Certificate based encryption uses asymmetric cryptography with X.509 certificates. You can use commercial certificates or generate self-signed certificates. The following procedure creates a simple CA and a broker certificate using OpenSSL:

1. Generate a private key for your Certificate Authority (CA):

   openssl genpkey -algorithm RSA -out ca.key

2. Create the self-signed root CA certificate:

   openssl req -new -x509 -days 1826 -key ca.key -out ca.crt

   You will be prompted for CA details such as Country and Organization Name.
3. Generate a private key for the MQTT Broker:

   openssl genpkey -algorithm RSA -out broker.key

4. Create a certificate signing request (CSR) for the broker. Set the Common Name (CN) to the hostname or IP address clients use to connect:

   openssl req -new -out broker.csr -key broker.key -subj "/CN=router.local"

   Replace router.local with the actual hostname or IP address of your router.
5. Sign the broker's CSR using your CA key and certificate:

   openssl x509 -req -in broker.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out broker.crt -days 360

6. Paste the contents of ca.crt, broker.crt, and broker.key into the corresponding fields (Client CA Certificate(s), Broker Certificate, and Broker Private Key) in the Broker Configuration section. Distribute ca.crt to all clients so they can verify the broker's certificate.

Caution

• Various cryptographic algorithms can be used during certificate generation. Ensure compatibility with your clients. The broker's private key (broker.key) must not be password-protected, otherwise the broker service cannot load it.
• The Common Name (CN) or Subject Alternative Name (SAN) in the broker's certificate (broker.crt) must match the address clients use to connect. A mismatch causes most MQTT clients to refuse the connection due to failed hostname verification.

Authentication

Authentication verifies the identity of clients connecting to the broker. This Router App supports authentication via username/password or client certificates.

For username/password authentication, enter the desired username and password in the Username and Password fields in the Broker Configuration. All clients using this method must provide these exact credentials when connecting.

For certificate CN authentication, clients are authenticated based on their X.509 certificate. This method requires certificate based TLS encryption to be enabled first. The client must present a valid certificate signed by a CA listed in the broker's Client CA Certificate(s) field. The broker extracts the Common Name (CN) from the certificate and compares it to the value in the Username field. If they match, authentication succeeds.

The following procedure creates a client certificate using OpenSSL, signed by the CA created in the Encryption section:

1. Generate the client's private key:

   openssl genpkey -algorithm RSA -out client.key

2. Generate a CSR for the client. The CN here is used for authentication:

   openssl req -new -out client.csr -key client.key -subj "/CN=client_device_001"

   Replace client_device_001 with the desired unique name for the client.
3. Sign the client's CSR using your CA certificate and key:

   openssl x509 -req -in client.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out client.crt -days 360

4. Enter the exact CN used in step 2 (e.g., client_device_001) into the Username field in Broker Configuration and select certificate CN as the authentication method.
5. Securely distribute client.crt, client.key, and ca.crt to the client device and configure the MQTT client software to use them.

Command Line Tools

The MQTT Broker Router App includes two command-line utilities from Eclipse Mosquitto™: mosquitto_pub and mosquitto_sub. These are available via the router's CLI (e.g., via SSH) and are useful for testing, debugging, and scripting MQTT interactions directly on the router.

mosquitto_pub Command

The mosquitto_pub command publishes a single message to a specific topic on an MQTT broker.

Command Example

Scenario:

• Publish the payload "54" to the topic SENSOR/ROOM8/TEMPERATURE.
• The target broker is on the same router at IPv6 address fc00:202::254, port 1883.
• PSK-based TLS encryption with identity "test" and a hexadecimal key.
• Username/password authentication with username "house" and password "12345".

Command:

mosquitto_pub --host fc00:202::254 --port 1883 \
    --psk b7e87d9b2074d5889a7969985d9fc3f04e4e5b8cb57956a812b2c52b6411abd8 \
    --psk-identity test -u house -P 12345 -t SENSOR/ROOM8/TEMPERATURE -m 54

Broker configuration for this example:

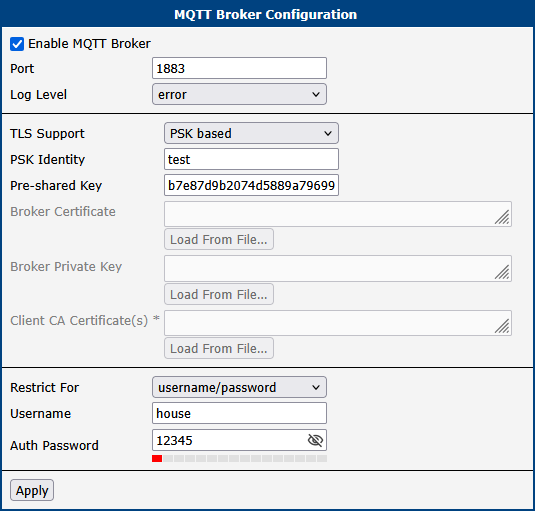

Broker Configuration for mosquitto_pub Example

mosquitto_sub Command

The mosquitto_sub command subscribes to one or more topics (using wildcards if needed) and prints any messages received.

Command Example

Scenario:

• Subscribe to all topics starting with factory/sensor/# (wildcard #).
• Connect to a broker at hostname "router" on port 1883.
• Certificate-based TLS; the client verifies the broker's certificate using ca.crt.
• The client authenticates itself using client.crt and client.key.
• Exit after receiving exactly one message (-C 1).

Command:

mosquitto_sub -C 1 --host router --port 1883 --cafile ca.crt \
    --cert client.crt --key client.key -t factory/sensor/#

Broker configuration for this example:

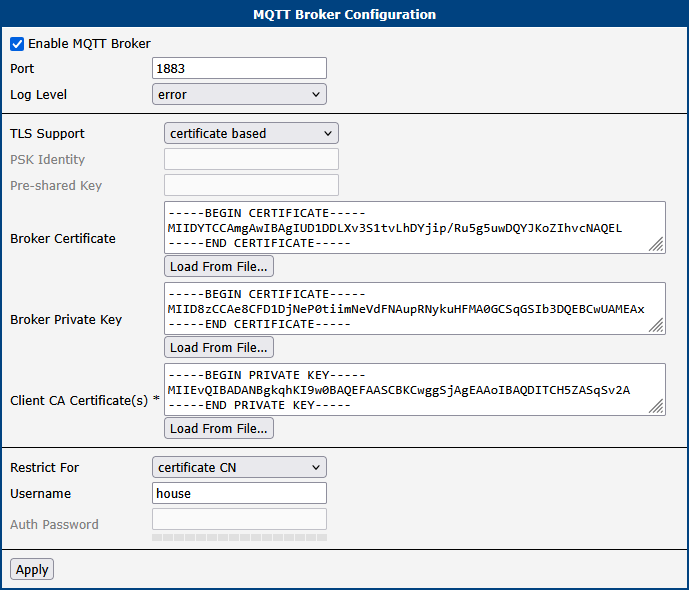

Broker Configuration for mosquitto_sub Example

Use mosquitto_pub --help or mosquitto_sub --help for a full list of available options.
