MQTT Manager

Installation files

Description

The MQTT Manager Router App is designed for controlling and monitoring Advantech routers via the MQTT protocol. You can issue commands through specific MQTT messages to, for example, modify binary outputs. Additionally, you can track the status of the router by subscribing to a specific topic.

Web Interface

Once the installation is complete, the Router App's web interface can be accessed by clicking the Router App name on the Router Apps page of the router's web interface.

The left panel of the web interface contains a menu with a General section. The Return item switches back from the Router App's web page to the router's web configuration pages. The menu is shown in the figure below.

Menu
Menu

Global Configuration

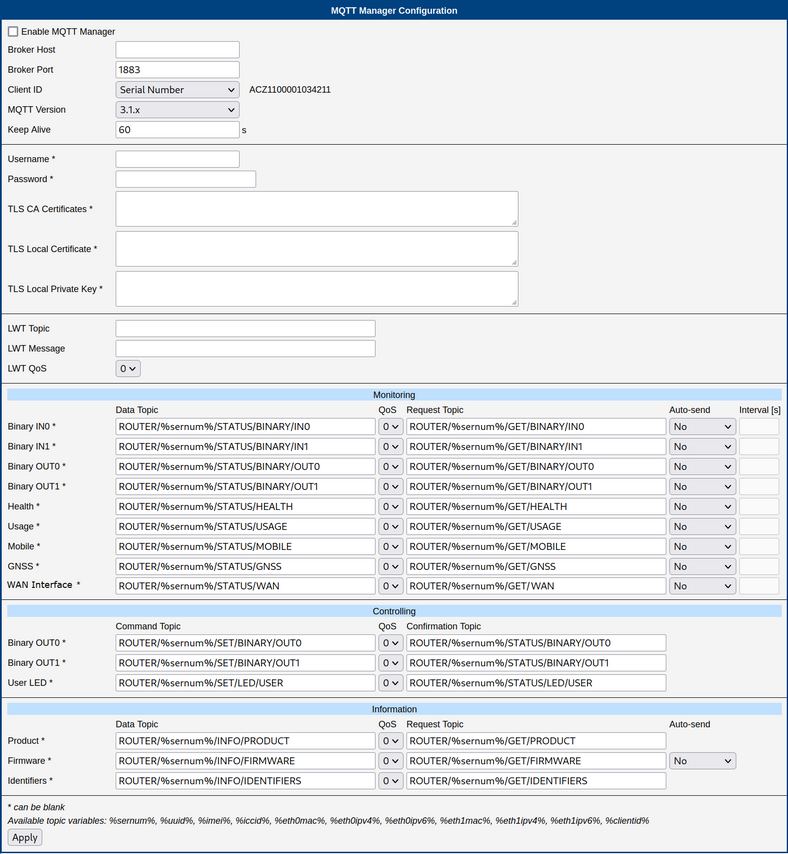

Configure the Router App on the Settings page under the Router menu section. All configuration items are described in the table below.

Configuration
Configuration
ItemDescription
Enable MQTT ManagerWhen enabled, the MQTT Manager functionality of this Router App is turned on.
Broker HostIP address or domain name of the MQTT broker.
Broker PortBroker server port number (1–65535).
Client IDString used as the client identifier to the broker. Choose from the router's unique IDs or enter a custom value.
MQTT VersionMQTT protocol version.
Keep AliveMQTT Keep-Alive interval in seconds (1–3600).
UsernameUsername to connect to the broker, if required.
PasswordPassword to connect to the broker, if required.
TLS CA CertificatesCA certificate for TLS connection, if used.
TLS Local CertificateRouter's local certificate for TLS connection, if used.
TLS Local Private KeyRouter's local private key for TLS connection, if used.
LWT TopicTopic of the Last Will and Testament (LWT) message — sent by the broker to connected subscribers when a router disconnects or stops communicating.
LWT MessageContent of the LWT message.
LWT QoSQuality of Service level for the LWT message.
MonitoringSee the Monitoring section below.
ControllingSee the Controlling section below.
InformationSee the Information section below.

Configuration items

Monitoring

Monitoring messages encapsulate the value of a data change. Such a message can be dispatched upon request using a special message (see the Format of Messages section), upon any change in value, or at predetermined intervals. When sent due to a data change, note that the state is sampled at a specific frequency — very rapid changes may go undetected. You can customize both the topic of the outgoing message (Data Topic) and the topic of the request message (Request Topic) for each piece of monitored data.

To receive all data sent by the MQTT Manager (when connected to the local broker):

mosquitto_sub -t "ROUTER/#"

Controlling

Controlling messages enable you to control the router. For example, the user LED can be toggled on or off by sending the appropriate message. Command Topic is the topic of the message you send to the router; Confirm Topic is the topic of the confirmation message the router sends back.

Information

Information messages are similar to Monitoring messages but pertain to static data that does not change (e.g., product name), eliminating the need for repeated transmission. They are dispatched only upon request, except for the firmware version, which can be configured to be sent automatically on change. A request is an empty MQTT message sent to the configured Request Topic.

Topics can be disabled by leaving the topic field empty. For example, if the Data Topic field for "Binary IN0" is left blank, that information is neither transmitted nor requestable. Similarly, if Confirmation Topic is empty in the Controlling section, commands will be executed but no confirmation is returned.

To retrieve the value of IN0 (the first binary input) on a router:

mosquitto_pub -t "ROUTER/ACZ1100001019000/GET/BINARY/IN0" -m ""

The following variables can be used in topic and message fields and will be substituted at runtime:

VariableExample
%sernum%ACZ1199000000652 — device serial number
%suuid%a13cf7db-810f-4cec-afa8-bcbda3c285a8 — router UUID
%imei%861536030196001 — IMEI number
%iccid%8944200102388043468 — SIM card identification number
%eth0mac%02:AD:FF:00:00:65 — eth0 MAC address
%eth0ipv4%192.168.1.1 — eth0 IPv4 address
%eth0ipv6%fd00:a40::65 — eth0 IPv6 address
%eth1mac%02:AD:FF:01:00:65 — eth1 MAC address
%eth1ipv4%192.168.1.2 — eth1 IPv4 address
%eth1ipv6%fd00:a41::65 — eth1 IPv6 address
%clientid%client ID of the router

Topic and message variables

Format of Messages

This section describes and provides examples of the MQTT messages used in communication between the MQTT Manager and an MQTT client.

Monitoring Examples

Binary IN0

Data message:

{"binary": {"in0": B}}

Where B is binary value 0 or 1. Example: {"binary": {"in0": 1}}

Request message: Empty message sent to the configured Request Topic.

Binary IN1

Data message:

{"binary": {"in1": B}}

Where B is binary value 0 or 1. Example: {"binary": {"in1": 1}}

Request message: Empty message sent to the configured Request Topic.

Binary OUT0

Data message:

{"binary": {"out0": B}}

Where B is binary value 0 or 1. Example: {"binary": {"out0": 1}}

Request message: Empty message sent to the configured Request Topic.

Binary OUT1

Data message:

{"binary": {"out1": B}}

Where B is binary value 0 or 1. Example: {"binary": {"out1": 1}}

Request message: Empty message sent to the configured Request Topic.

Health

Data message:

{"health": {"temperature": T, "voltage": V, "battery": B}}

Where T is the temperature in Celsius (integer), V is the supply voltage in Volts (decimal), and B is the RTC battery status ("OK" or "Empty"). Not all routers provide all fields — for example, v2i routers do not report temperature, in which case that field is omitted.

Example: {"health": {"temperature": 36, "voltage": 11.7, "battery": "OK"}}

Request message: Empty message sent to the configured Request Topic.

Usage

Data message:

{"usage": {"cpu": C, "ram": {"total": T, "used": U, "percentage": P}}}

Where C is CPU usage in percent (decimal), T is total RAM in bytes (integer), U is used RAM in bytes (integer), and P is used RAM in percent (decimal).

Example:

{"usage": {"cpu": 10.3, "ram": {"total": 521654272, "used": 28209152, "percentage": 5.4}}}

Request message: Empty message sent to the configured Request Topic.

Mobile

Data message:

{"mobile": [{"sim": S, "technology": T, "operator": O, "plmn": P,
  "cell": C, "lac": L, "channel": H, "signal": {"strength": R, "quality": Q},
  "uptime": U, "ipv4": I4, "ipv6": I6}, …]}

Where S is the selected SIM card number (1 or 2), T is the mobile technology (string), O is the operator (string), P is the PLMN (integer), C is the cell number (integer), H is the channel number (integer), R is signal strength in dBm (integer), Q is signal quality in dB (integer), U is the connection uptime (string), I4 is the IPv4 address (string), and I6 is the IPv6 address (string). The mobile field is an array to support routers with multiple cellular modules. The sim field is always present; other fields appear only when the connection is active. Both IP addresses are not required to be present simultaneously.

Example:

{"mobile": [{"sim": 1, "technology": "LTE", "operator": "T-Mobile",
  "plmn": 23003, "cell": 10804, "lac": 947, "channel": 1849,
  "signal": {"strength": -91, "quality": -6},
  "uptime": "0 days, 11 hours, 18 minutes", "ipv4": "10.80.0.27"}]}

Request message: Empty message sent to the configured Request Topic.

Controlling Examples

Binary OUT0

Controlling message:

{"binary": {"out0": B}}

Where B is binary value 0 or 1. Example: {"binary": {"out0": 1}}

Confirmation message: Same format, sent on a different (confirmation) topic.

Binary OUT1

Controlling message:

{"binary": {"out1": B}}

Where B is binary value 0 or 1. Example: {"binary": {"out1": 1}}

Confirmation message: Same format, sent on a different (confirmation) topic.

User LED

Controlling message:

{"led": {"user": B}}

Where B is binary value 0 or 1. Example: {"led": {"user": 1}}

Confirmation message: Same format, sent on a different (confirmation) topic.

Information Examples

Product

Data message:

{"info": {"series": S, "partnum": P}}

Where S is the model line (string) and P is the product number (string).

Example: {"info": {"series": "ICR-324x", "partnum": "ICR-3241W"}}

Request message: Empty message sent to the configured Request Topic.

Firmware

Data message:

{"info": {"firmware": F}}

Where F is the firmware version string. Example: {"info": {"firmware": "6.3.2 (2021-09-30)"}}

Request message: Empty message sent to the configured Request Topic.

Identifiers

Data message:

{"info": {"sernum": S, "uuid": U,
  "module": [{"imei": I, "iccid": C, "esn": E, "meid": M}, …]}}

Where S is the serial number and U is the universally unique identifier. I, C, E, and M are identifiers used in mobile networks. All values are strings. If the router has two cellular modules, the module array contains two entries; if it has no cellular module, module information is omitted. UUID may not be present on all models.

Example:

{"info": {"sernum": "ACZ1199000000736",
  "module": [{"imei": "863305040213851", "iccid": "8942031020122122779"}]}}

Request message: Empty message sent to the configured Request Topic.
